Item No :
16005ZZSize (d*D*B) :
25x47x8mmLead Time :
3-5 daysWeight :
0.055KGShipping Port :
ChinaMOQ :

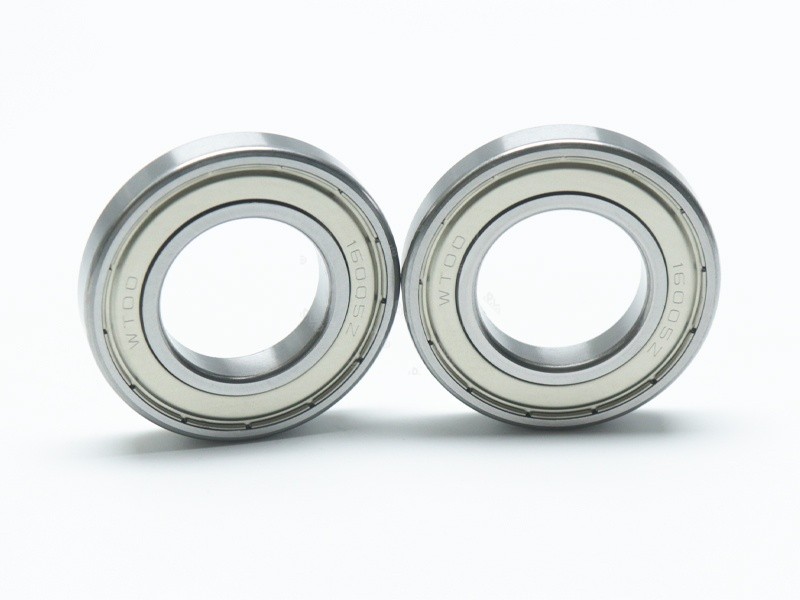

50 pcs16005ZZ Thin Wall Deep Groove Ball Bearing For Machinery
⚙️Product introduction:

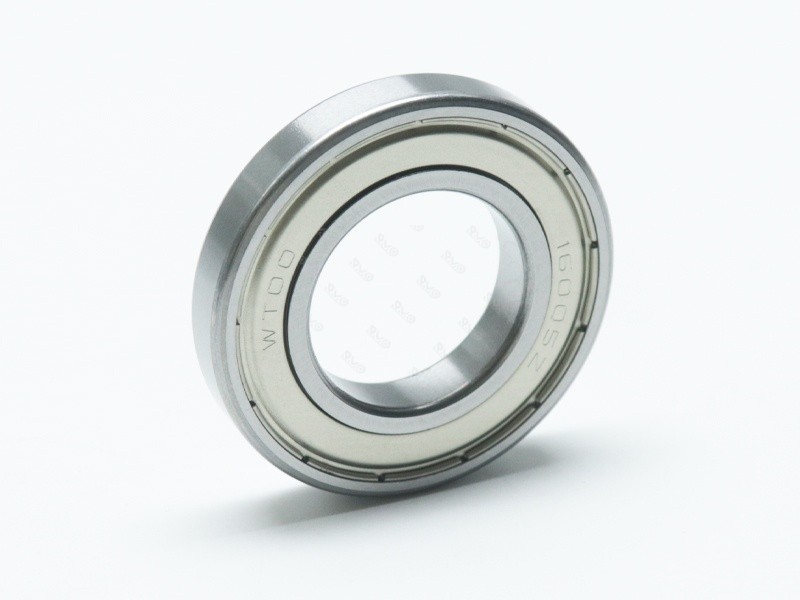

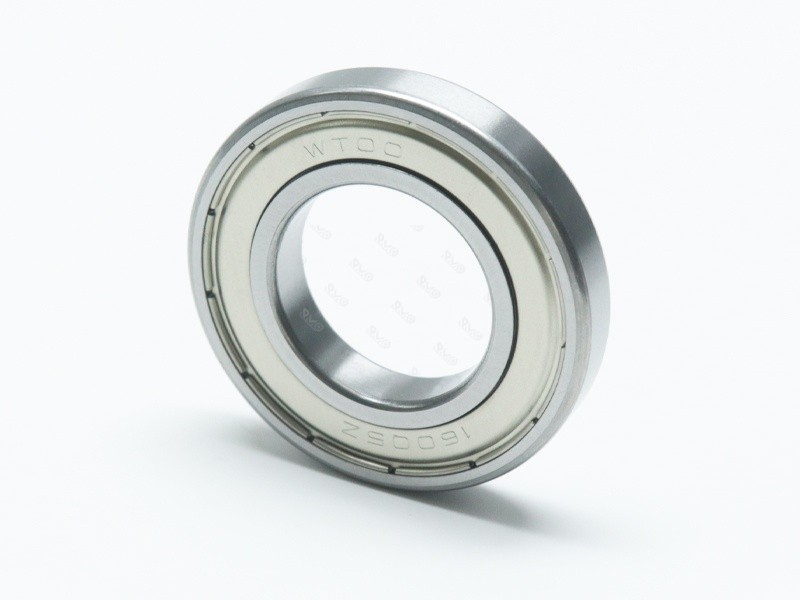

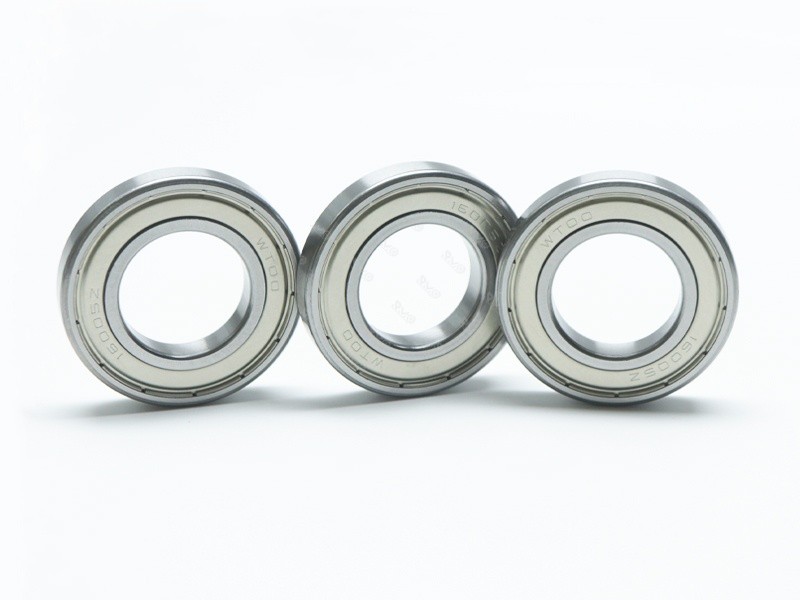

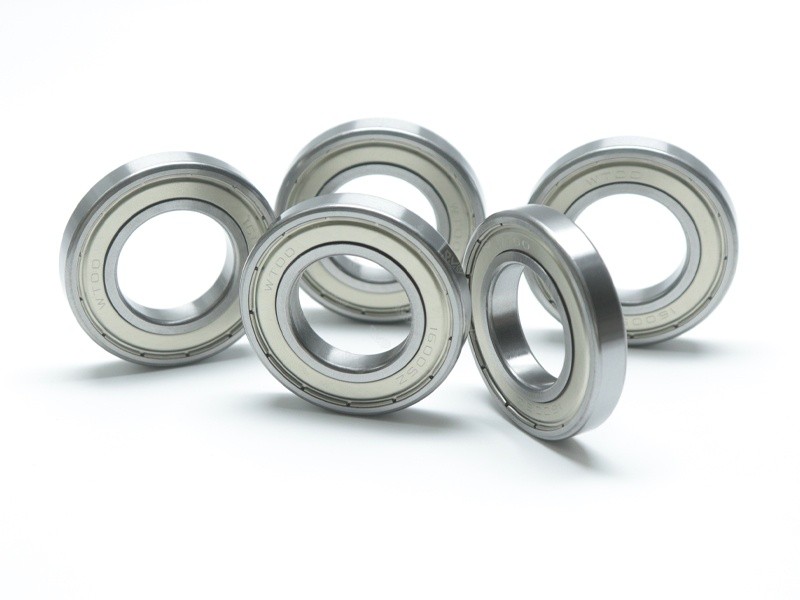

The 16005ZZ bearing is a deep groove ball bearing. It has dust covers on both sides to prevent dust and other impurities from entering the bearing, thereby enhancing the bearing's service life and operational stability.
The bearing material: It is made of high-carbon chromium bearing steel (fully quenched type) GCr15. This material features high hardness, wear resistance and fatigue strength, ensuring that the bearing maintains excellent performance during long-term operation.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome steel (Gcr15)or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free sample can be provide |
Deep groove ball bearings are originally listed as radial ball bearings and are a widely used type of rolling bearing. They have low friction resistance, high rotational speed, and can be used to withstand radial loads or combined loads of both radial and axial directions. They can also be used to bear axial loads. When the rotational speed is high and thrust ball bearings cannot be used, they can be used to bear pure axial loads. However, they are not resistant to impact and are not suitable for heavy loads.
1.Multi-process processing: The production of general bearings usually requires 20 to 40 processes, and in some cases, it can reach over 70 processes.
2.Forming processing: The working surfaces of bearing parts are all rotational forming surfaces, which are suitable for processing by the forming method.
3.Precision processing: The vast majority of surfaces of bearing parts need to undergo grinding processing, and the dimensions and geometric accuracy of grinding processing are all measured in μm.

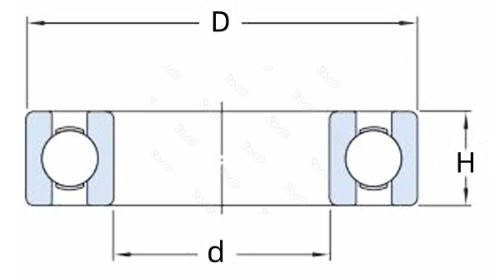

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 16001 | 12mm | 28mm | 7mm | 20 g | 16021 | 105 mm | 160 mm | 18 mm | 1.24 KG | |
| 16002 | 15 mm | 32 mm | 8 mm | 27 g | 16022 | 110 mm | 170 mm | 19 mm | 1.52 KG | |
| 16003 | 17 mm | 35 mm | 8 mm | 30 g | 16024 | 120 mm | 180 mm | 19 mm | 1.62 KG | |
| 16004 | 20 mm | 42 mm | 8 mm | 50 g | 16026 | 130 mm | 200 mm | 22 mm | 2.41 KG | |
| 16005 | 25 mm | 47 mm | 8 mm | 55 g | 16028 | 140 mm | 210 mm | 22mm | 2.55 KG | |
| 16006 | 30 mm | 55 mm | 9 mm | 82 g | 16030 | 150 mm | 225 mm | 24 mm | 3.17 KG | |
| 16007 | 35 mm | 62 mm | 9 mm | 105 g | 16032 | 160 mm | 240 mm | 25 mm | 3.8 KG | |
| 16008 | 40 mm | 68 mm | 9 mm | 120 g | 16034 | 170 mm | 260 mm | 28 mm | 5.15 KG | |
| 16009 | 45 mm | 75 mm | 10 mm | 167 g | 16036 | 180 mm | 280 mm | 31 mm | 6.92 KG | |
| 16010 | 50 mm | 80 mm | 10 mm | 181 g | 16038 | 190 mm | 290 mm | 31 mm | 7.04 KG | |
| 16011 | 55 mm | 90 mm | 11 mm | 266 g | 16040 | 200 mm | 310 mm | 34 mm | 9 KG | |
| 16012 | 60 mm | 95 mm | 11 mm | 283 g | 16044 | 220 mm | 340 mm | 37 mm | 11.8 KG | |
| 16013 | 65 mm | 100 mm | 11 mm | 302 g | 16048 | 240 mm | 360 mm | 37 mm | 12.7 KG | |
| 16014 | 70 mm | 110 mm | 13 mm | 438 g | 16052 | 260 mm | 400 mm | 44 mm | 19.1 KG | |
| 16015 | 75mm | 115 mm | 13 mm | 463 g | 16056-M | 280 mm | 420 mm | 44 mm | 23.2 KG | |
| 16016 | 80 mm | 125 mm | 14 mm | 609 g | 16060-M | 300 mm | 460 mm | 50 mm | 32.6 KG | |
| 16017 | 85 mm | 130 mm | 14 mm | 666 g | 16064-M | 320 mm | 480 mm | 50 mm | 34.9 KG | |
| 16018 | 90 mm | 140 mm | 16 mm | 866 g | 16068-M | 340 mm | 520 mm | 57 mm | 47.5 KG | |
| 16019 | 95 mm | 145 mm | 16 mm | 922 g | 16072-M | 360 mm | 540 mm | 57 mm | 49.4 KG | |
| 16020 | 100 mm | 150 mm | 16 mm | 956 g | 16076-M | 380 mm | 560 mm | 57 mm | 51.7 KG |

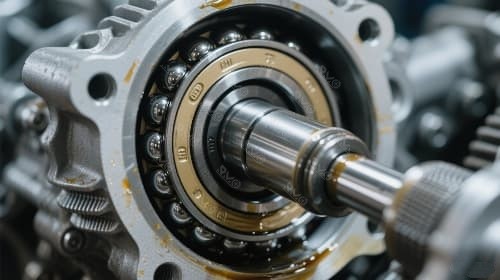

Suitable for use in low-power electric motors, automotive and tractor gearboxes, machine tool gearboxes, instruments and meters, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, and other equipment.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
