Item No :

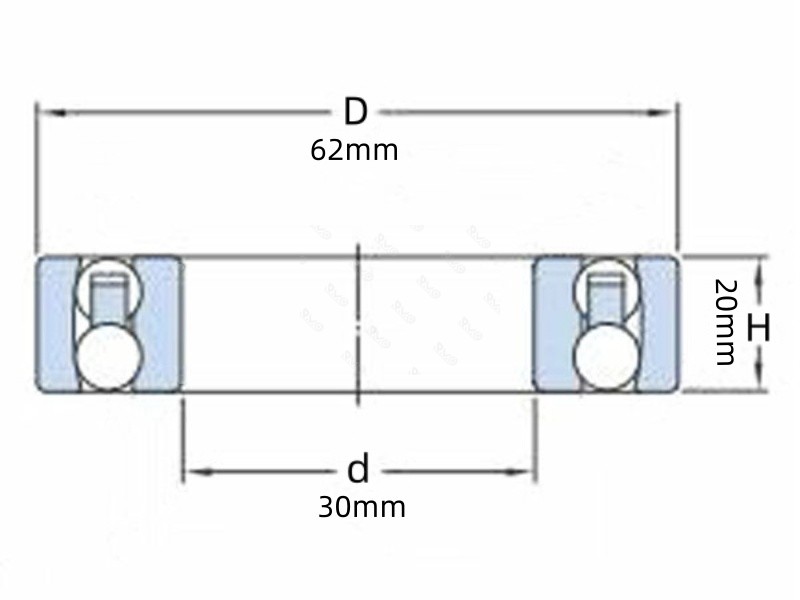

2206-2RS Ball BearingSize (d*D*B) :
30x62x20mmMaterial :
Chrome steel GCR15Cage material :
steel or synthetic resinBrand :
Famous brand/RMO/Neutral/OEM&ODMLead Time :
Normally 3-5 daysWeight :
0.275KGMOQ :
50 pcs2206 2RS Sealed Double Row Self-aligning Ball Bearing
⚙️Product description:
Structural features: 2206 2RS is a double-row self-aligning ball bearing. It consists of two rows of steel balls. The inner ring has two deep and uninterrupted raceway grooves, and the outer ring has a common spherical raceway. This structure enables the bearing to automatically align itself, being insensitive to the angular deviation between the shaft and the bearing housing. It is suitable for applications where the shaft is prone to deviation or misalignment.
| Model No. | 2206-2RS Ball Bearing |
| Size | 30x62x20mm |
| Weight | 0.275KG |
| Branding | Famous brand/RMO/Neutral/OEM&ODM |
| Sealing | OPEN |
| Material | Chrome steel GCR15 |
| Payment | 100% T/T, or 30% T/T in advance ,70% T/T after finished production |
| Micro series | 10x, 12x, 13x |
| General series | 12xx, 13xx, 22xx, 23xx |
| Lead Time | normally 3-5 days |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Cage material | Steel or synthetic resin |
| MOQ | 50 pcs |
Sealing form: The "2RS" in the bearing model indicates that there are sealing devices on both sides. It uses rubber sealing and is a contact-type seal, which can effectively prevent the leakage of lubricating grease and also prevent dust, moisture and other impurities from entering the interior of the bearing. It is suitable for harsh working environments or conditions where grease lubrication is the only option.
Performance parameters: The basic rated dynamic load is 15.6kN, the basic rated static load is 4.65kN, the reference speed is 22000r/min, and the maximum speed is 7500r/min. The parameters may vary for different brands and specific models.
Material and manufacturing: The bearings are made of bearing steel, which has high hardness and wear resistance. The cage material is steel or synthetic resin.

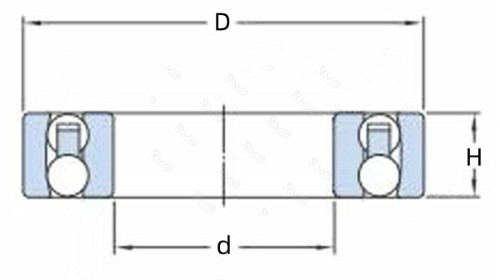

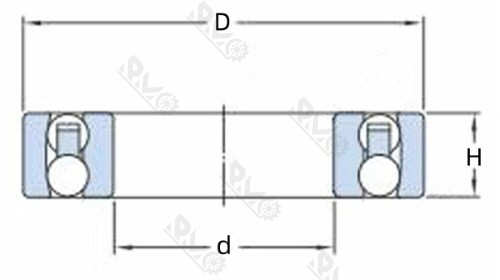

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 126 | 6 mm | 19 mm | 6 mm | 9 g | 1212 | 60 mm | 110 mm | 22 mm | 894 g | |
| 127 | 7 mm | 22 mm | 7 mm | 14 g | 1213 | 65 mm | 120 mm | 23 mm | 1.14 KG | |
| 129 | 9 mm | 26 mm | 8 mm | 22 g | 1214 | 70 mm | 125 mm | 24 mm | 1.25 KG | |
| 1200 | 10 mm | 30 mm | 9 mm | 34 g | 1215 | 75 mm | 130 mm | 25 mm | 1.34 KG | |
| 1201 | 12 mm | 32 mm | 10 mm | 41 g | 1216 | 80 mm | 140 mm | 26 mm | 1.65 KG | |
| 1202 | 15 mm | 35 mm | 11 mm | 48 g | 1217 | 85 mm | 150 mm | 28 mm | 2.07 KG | |
| 1203 | 17 mm | 40 mm | 12 mm | 73 g | 1218 | 90 mm | 160 mm | 30 mm | 2.52 KG | |
| 1204 | 20 mm | 47 mm | 14 mm | 118 g | 1219 | 95 mm | 170 mm | 32 mm | 3.32 KG | |
| 1205 | 25 mm | 52 mm | 15 mm | 138 g | 1220 | 100 mm | 180 mm | 34 mm | 3.99 KG | |
| 1206 | 30 mm | 62 mm | 16 mm | 221 g | 1221 | 105 mm | 190 mm | 36 mm | 4.75 KG | |
| 1207 | 35 mm | 72 mm | 17 mm | 324 g | 1222 | 110 mm | 200 mm | 38 mm | 5.57 KG | |
| 1208 | 40 mm | 80 mm | 18 mm | 414 g | 1224 | 120 mm | 215 mm | 42 mm | 7.13 KG | |
| 1209 | 45 mm | 85 mm | 19 mm | 462 g | 1226 | 130 mm | 230 mm | 46 mm | 8.67 KG | |
| 1210 | 50 mm | 90 mm | 20 mm | 526 g | 1228 | 140 mm | 250 mm | 50 mm | 11.2 KG | |
| 1211 | 55 mm | 100 mm | 21 mm | 693 g | 1230 | 150 mm | 270 mm | 54 mm | 14.6 KG |
Due to its self-aligning and sealing characteristics, the 2206 2RS self-aligning ball bearing is widely used in fields such as paper machinery, mechanical fans, wind turbines, gearboxes, and conveying equipment.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
