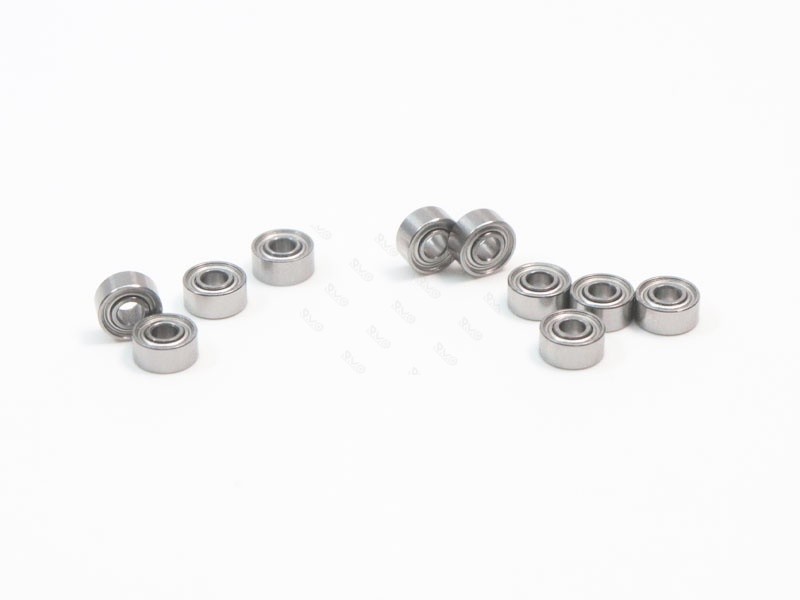

The 682ZZ bearing is a type of miniature deep groove ball bearing, which is a typical small-sized rotating component used in the industrial sector.
Item No :
682ZZSize (d*D*B) :
2x5x2.3mmLead Time :
3-5 DaysWeight :
0.001KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :

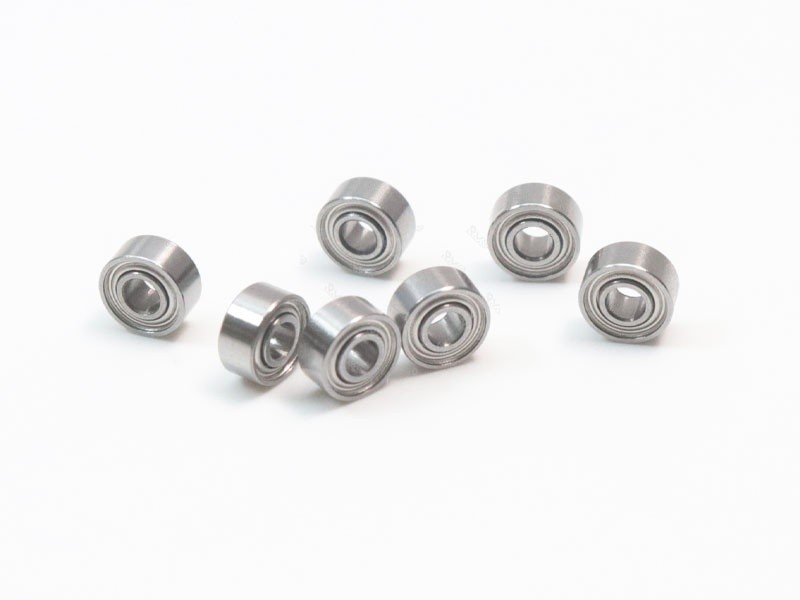

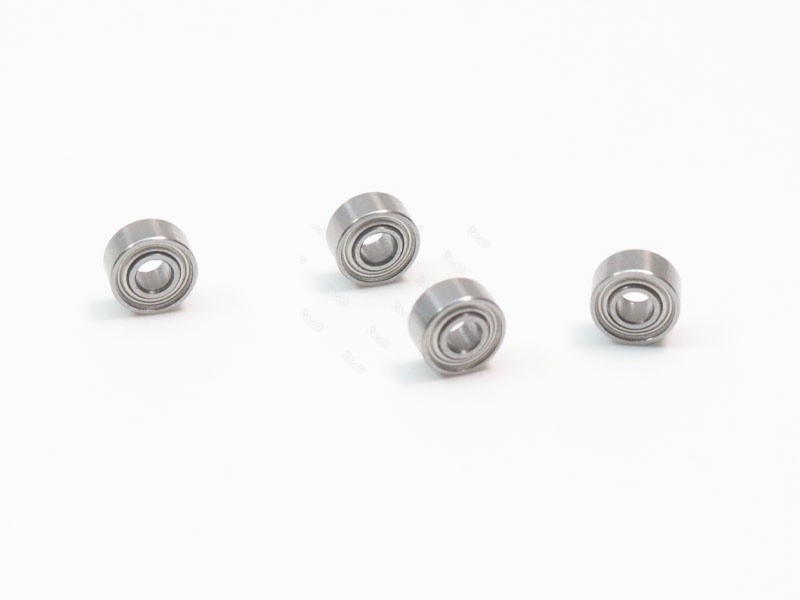

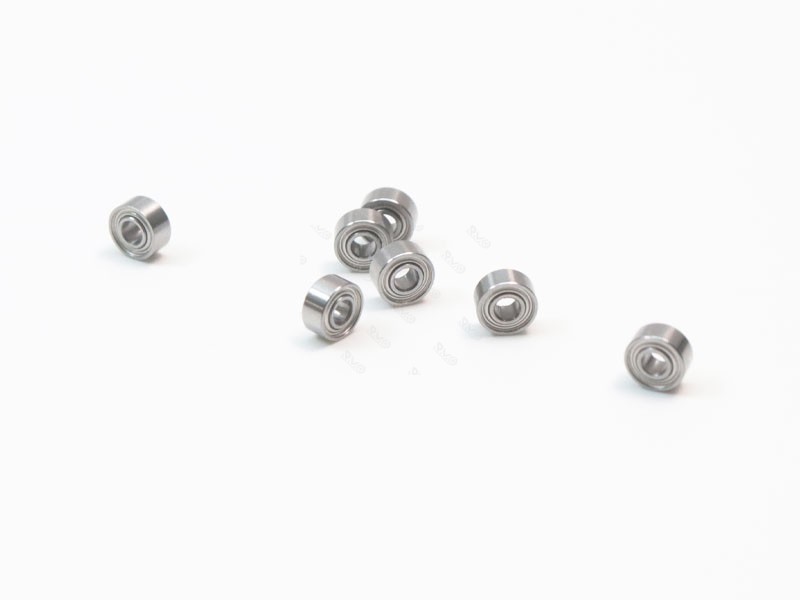

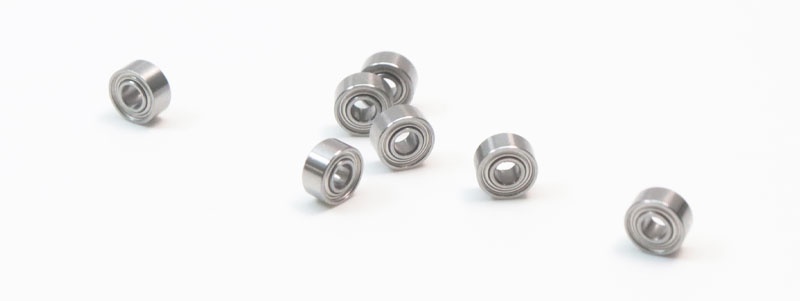

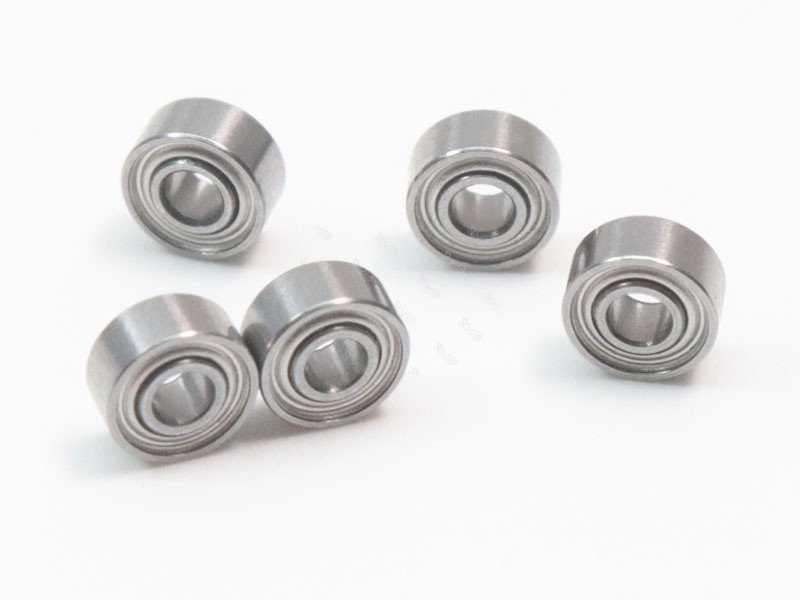

100 pcs2x5x2.3mm 682ZZ Miniature Deep Groove Ball Bearing
⚙️product description:
Structural features: A double-sided sealing structure is adopted, usually consisting of double steel plates as dust-proof covers, which can effectively prevent dust and impurities from entering the bearing interior, ensuring the normal operation and service life of the bearing.
Materials: The bearing material is generally high-carbon chromium bearing steel (GCr15), which has good wear resistance and strength, capable of meeting the working requirements of the bearing under high-speed and high-load conditions. The cage material is mostly stainless steel or made by steel plate stamping.
| Material | Chrome Steel(Gcr15) or Stainless Steel etc. |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Rated Loads | Dynamic Load 169N (17kg), Static Load 50N (5kg) |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Free Sample Can Be Provided |
Space adaptability: The ultra-small size of 2×5×2.3mm and the lightweight design of 0.12g make it a "standard bearing" for miniature devices, especially suitable for products that are sensitive to volume and weight such as printers and drones.
Protection and durability: The ZZ dust-proof cover design ensures that the bearing can operate stably in dusty environments (such as textile machinery, food processing equipment), and the stainless steel model can withstand mild corrosion, suitable for medical device disinfection scenarios.
High rotational speed advantage: With grease lubrication, the maximum rotational speed is 85,000 rpm, far exceeding that of ordinary small bearings, meeting the high-speed rotation requirements of miniature motors, gyroscopes, etc.

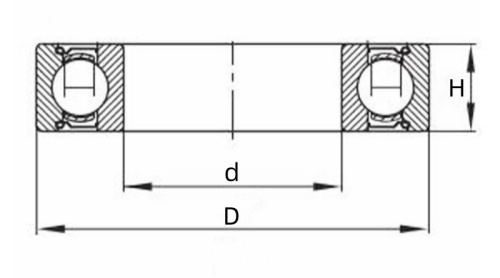

| Model No. | d | D | H | m |
| 682-2Z | 2 mm | 5 mm | 2.3 mm | 1 g |
| 683-2Z | 3 mm | 7 mm | 3 mm | 1 g |
| 684-2Z | 4 mm | 9 mm | 4 mm | 2 g |
| 685-2Z | 5 mm | 11 mm | 5 mm | 2 g |
| 686-2Z | 6 mm | 13 mm | 5 mm | 3 g |
| 687-2Z | 7 mm | 14 mm | 5 mm | 3 g |
| 688-2Z | 8 mm | 16 mm | 5 mm | 4 g |
| 689-2Z | 9 mm | 17 mm | 5 mm | 5 g |
Due to its small size, high precision, and fast rotational speed, it is widely used in fields such as motor and motor equipment, medical devices, food machinery, textile machines, and pneumatic tools.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
