Item No :
6207-2RSSize (d*D*B) :
35x72x17mmLead Time :
3-5 DaysWeight :
0.29KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :

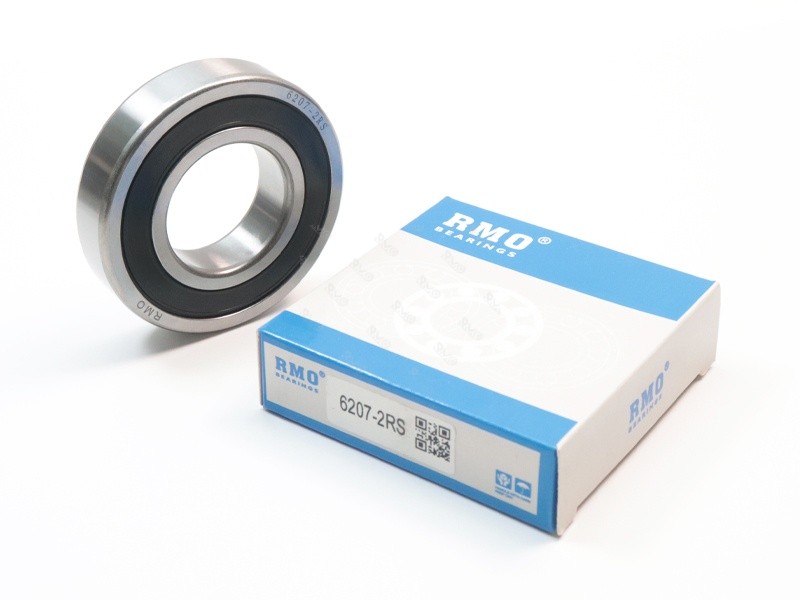

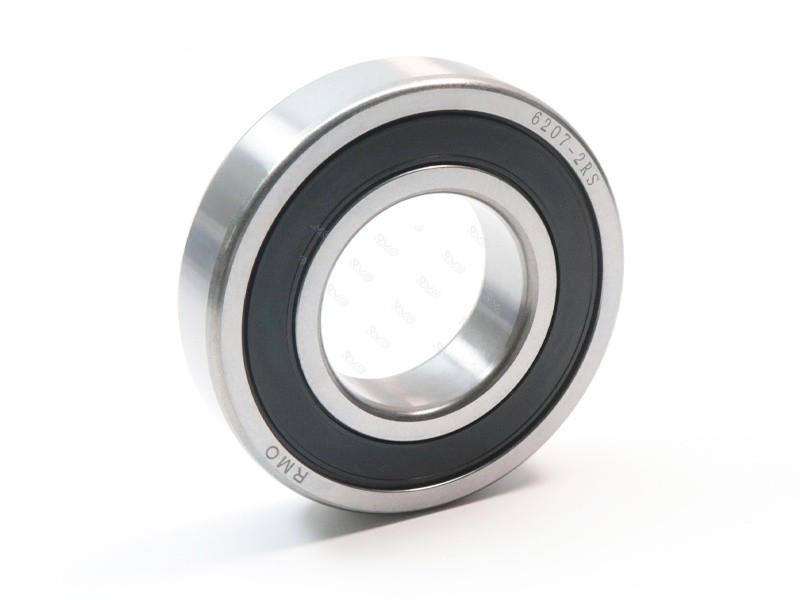

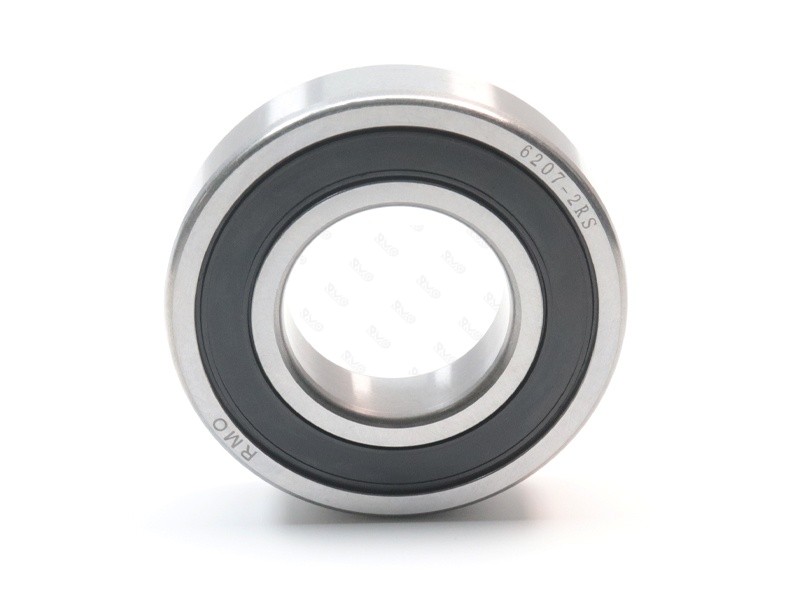

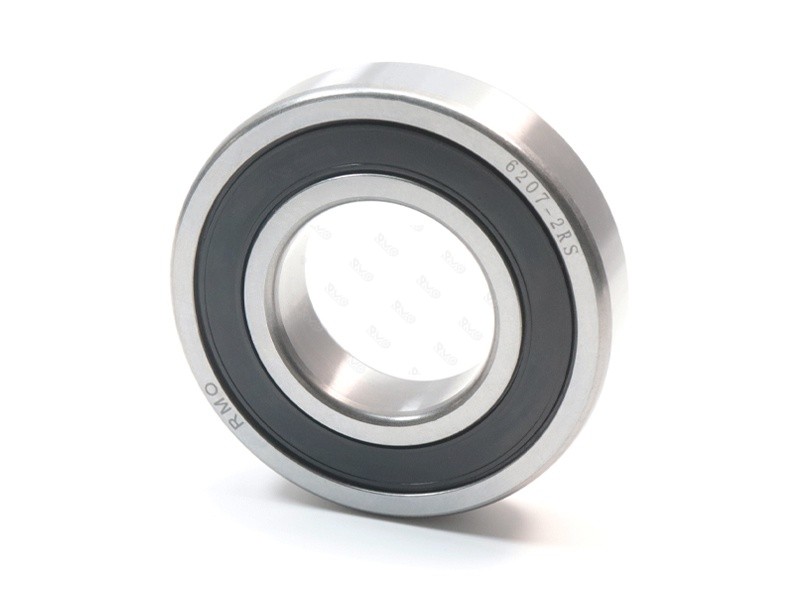

50pcs35x72x17mm 6207-2RS Deep Groove Ball Bearings
⚙️product presentation:
The 6207-2RS bearing is a single row deep groove ball bearing. It is equipped with contact-type rubber sealing covers on both sides, which can effectively prevent dust and impurities from entering the interior of the bearing, while retaining the lubricating grease and reducing the maintenance requirements of the bearing.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free Sample Can Be Provide |
The deep groove ball structure enables it to withstand both radial loads and a certain degree of bidirectional axial loads simultaneously. The sealing design ensures excellent grease retention and dust prevention capabilities. The bearing has low friction resistance and operates at a high speed, allowing for stable operation at higher rotational speeds.
| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6200RS | 10 mm | 30 mm | 9 mm | 0.03 KG | 6211RS | 55 mm | 100 mm | 21 mm | 0.61 KG | |
| 6201RS | 12 mm | 32 mm | 10 mm | 0.04 KG | 6212RS | 60 mm | 110 mm | 22 mm | 0.81 KG | |
| 6202RS | 15 mm | 35 mm | 11 mm | 0.05 KG | 6213RS | 65 mm | 120 mm | 23 mm | 1.05 KG | |
| 6203RS | 17 mm | 40 mm | 12 mm | 0.06 KG | 6214RS | 70 mm | 125 mm | 24 mm | 1.12 KG | |
| 6204RS | 20 mm | 47 mm | 14 mm | 0.104KG | 6215RS | 75 mm | 130 mm | 25 mm | 1.2 KG | |
| 62/22RS | 22 mm | 50 mm | 14 mm | 0.12 KG | 6216RS | 80 mm | 140 mm | 26 mm | 1.46 KG | |
| 6205RS | 25 mm | 52 mm | 15 mm | 0.13 KG | 6217RS | 85 mm | 150 mm | 28 mm | 1.84 KG | |
| 62/28RS | 28 mm | 58 mm | 16 mm | 0.17 KG | 6218RS | 90 mm | 160 mm | 30 mm | 2.63 KG | |
| 6206RS | 30 mm | 62 mm | 16 mm | 0.2 KG | 6219RS | 95 mm | 170 mm | 32 mm | 2.19 KG | |
| 62/32RS | 32 mm | 65 mm | 17 mm | 0.23 KG | 6220RS | 100 mm | 180 mm | 34 mm | 3.15 KG | |
| 6207RS | 35 mm | 72 mm | 17 mm | 0.29 KG | 6221RS | 105 mm | 190 mm | 36 mm | 3.7 KG | |
| 6208RS | 40 mm | 80 mm | 18 mm | 0.38 KG | 6222RS | 110 mm | 200 mm | 38 mm | 4.45 KG | |
| 6209RS | 45 mm | 85 mm | 19 mm | 0.42 KG | 6224RS | 120 mm | 215 mm | 40 mm | 5.26 KG | |
| 6210RS | 50 mm | 90 mm | 20 mm | 0.47 KG |
Widely used in various mechanical equipment, such as electric motors, pumps, fans, reducers, etc. For example, in electric motors, it can support the rotating shaft to ensure the stability and reliability of the motor when operating at high speed; in pump-type equipment, it can withstand the radial and axial forces generated by the rotation of the impeller to ensure the normal operation of the pump.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
