Item No :
6001RSSize (d*D*B) :
12x28x8mmLead Time :
3-5 daysWeight :
0.022KGShipping Port :
ChinaMOQ :

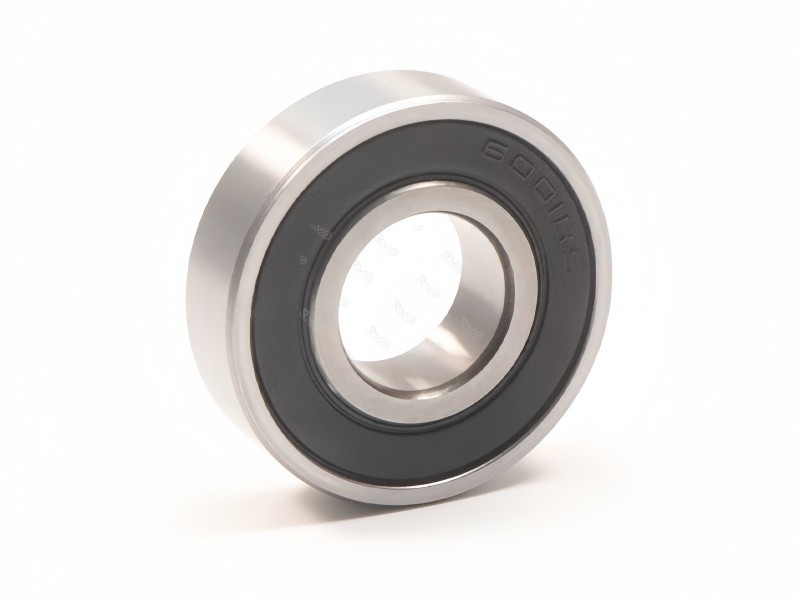

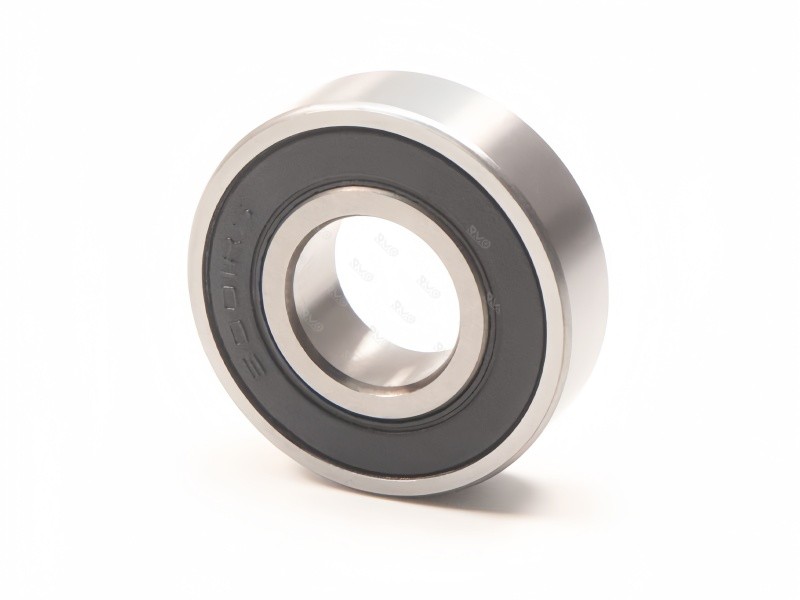

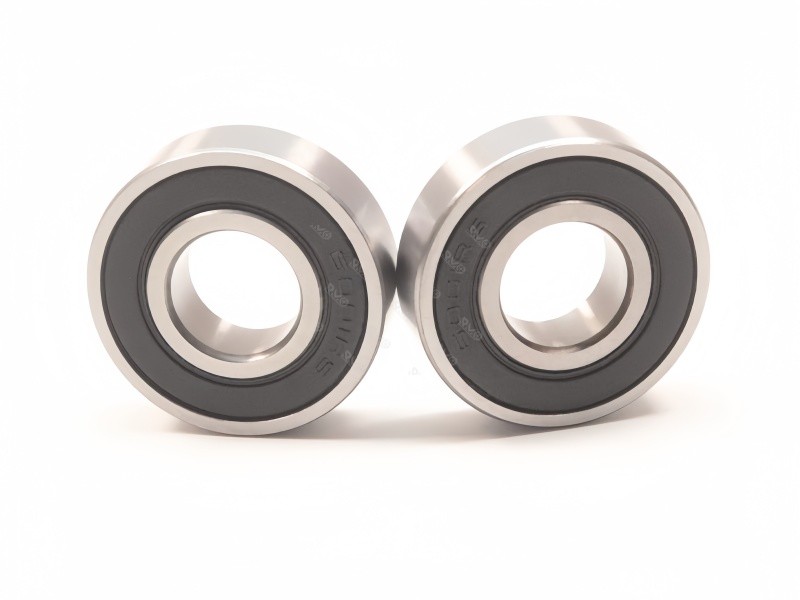

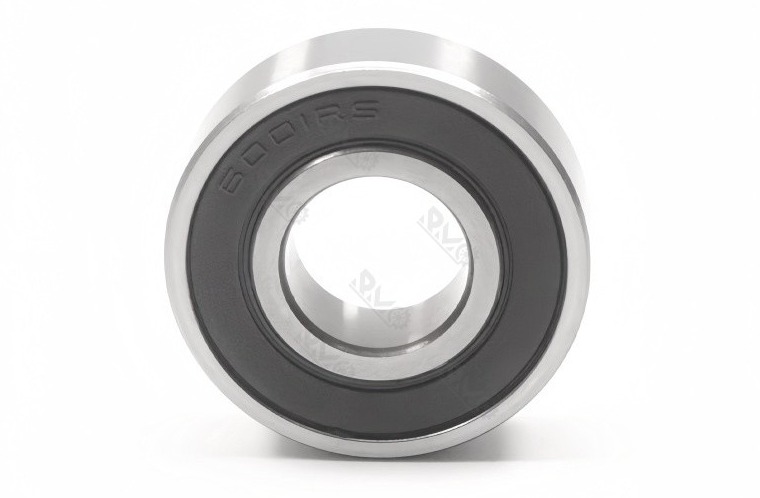

100 pcs6001RS Deep Groove Ball Bearing For Electric Fan
⚙️Product introduction:
A deep groove ball bearing is composed of an outer ring, an inner ring, a group of balls and a group of retainers. There are two types of deep groove ball bearings: single row and double row. The structure of deep groove balls also includes sealed and open types. The open type means the bearing does not have a sealing structure. The sealed type of deep groove balls is divided into dust-proof sealing and oil-proof sealing. The dust-proof sealing cover is made of steel plate stamping and only serves to simply prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the lubricating oil in the bearing from spilling out.
| Cage material | Steel |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome steel (Gcr15)or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free sample can be provide |
The characteristics of deep groove ball bearings are low friction resistance and high rotational speed. They can be used in components that bear radial loads or combined radial and axial loads (i.e., loads acting in both directions). They can also be used in components that bear axial loads, such as small power motors, car and tractor gearboxes, machine gearboxes, general machinery, tools, etc.
1.Multi-process processing: The production of general bearings usually requires 20 to 40 processes, and in some cases, it can reach over 70 processes.
2.Forming processing: The working surfaces of bearing parts are all rotational forming surfaces, which are suitable for processing by the forming method.
3.Precision processing: The vast majority of surfaces of bearing parts need to undergo grinding processing, and the dimensions and geometric accuracy of grinding processing are all measured in μm.

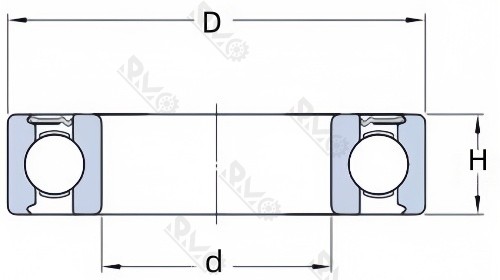

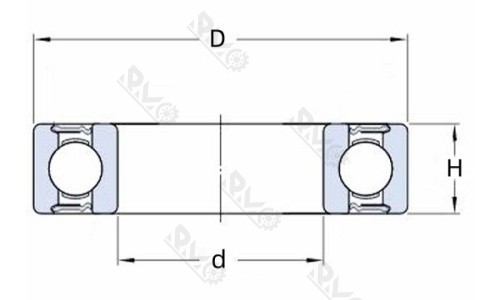

| Model No. | d | D | H | m |
| 607RS | 7 mm | 19 mm | 6 mm | 0.01 KG |
| 608RS | 8 mm | 22 mm | 7 mm | 0.01 KG |
| 609RS | 9 mm | 24 mm | 7 mm | 0.01 KG |
| 6000RS | 10 mm | 26 mm | 8 mm | 0.02 KG |
| 6001RS | 12 mm | 28 mm | 8 mm | 0.02 KG |
| 6002RS | 15 mm | 32 mm | 9 mm | 0.03 KG |
| 6003RS | 17 mm | 35 mm | 10 mm | 0.04 KG |
| 6004RS | 20 mm | 42 mm | 12 mm | 0.07 KG |
| 60/22RS | 22 mm | 44 mm | 12 mm | 0.07 KG |
| 6005RS | 25 mm | 47 mm | 12 mm | 0.08 KG |
| 60/28RS | 28 mm | 52 mm | 12 mm | 0.1 KG |
| 6006RS | 30 mm | 55 mm | 13 mm | 0.12 KG |
| 60/32RS | 32 mm | 58 mm | 13 mm | 0.13 KG |
Due to its numerous excellent properties, deep groove ball bearings have an extremely wide range of applications, covering various fields such as small power electric motors, automotive and tractor gearboxes, machine tool gearboxes, household appliances, instruments and meters, aerospace, medical devices, and many others.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
