Item No :
6011RSSize (d*D*B) :
55x90x18mmLead Time :
3-5 daysWeight :
0.38KGShipping Port :
ChinaMOQ :

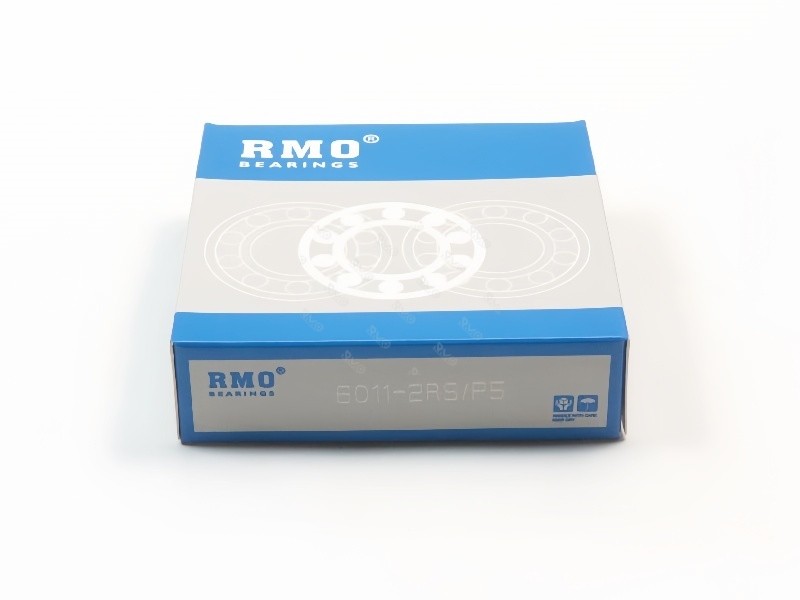

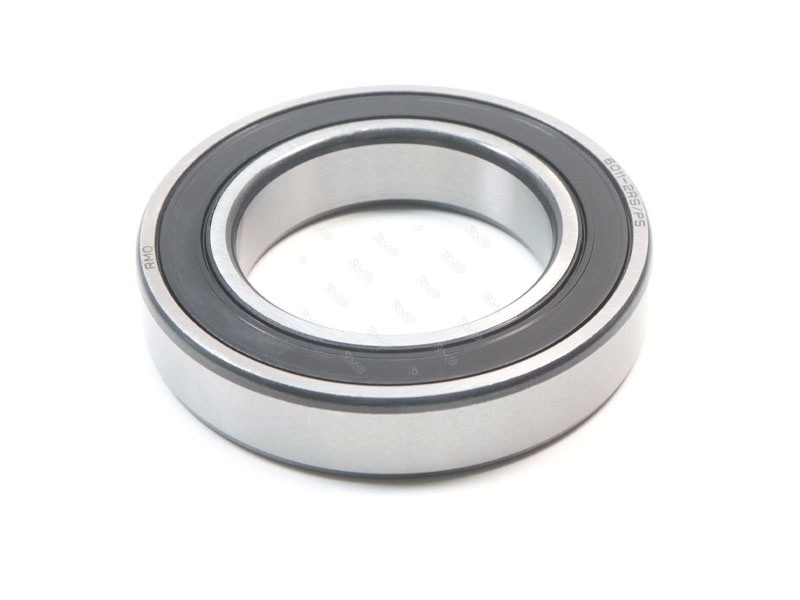

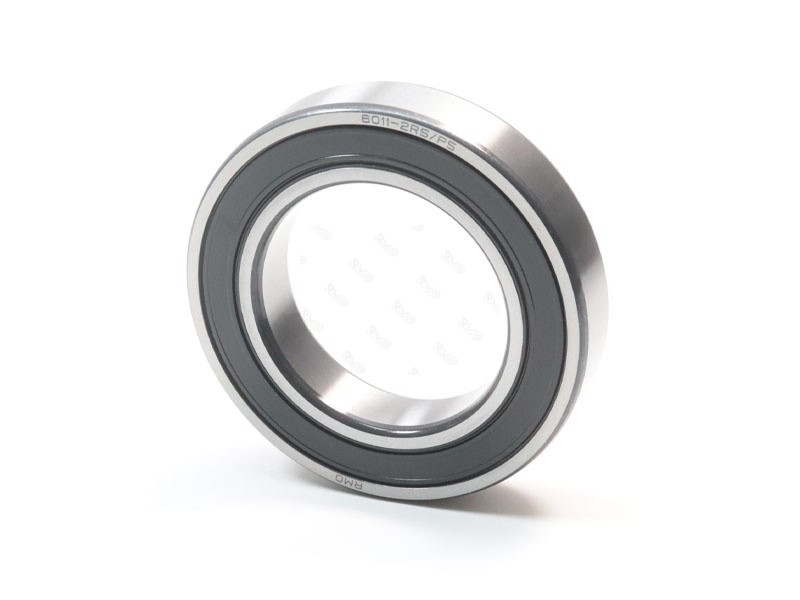

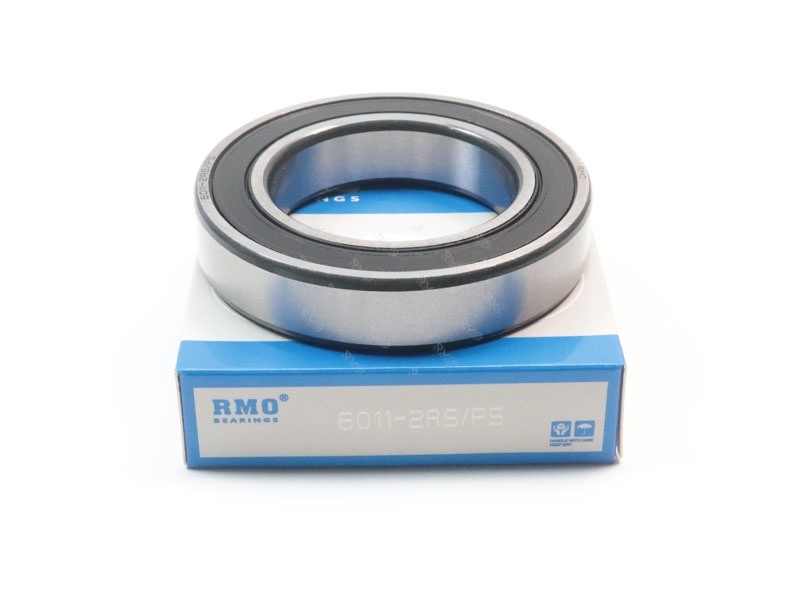

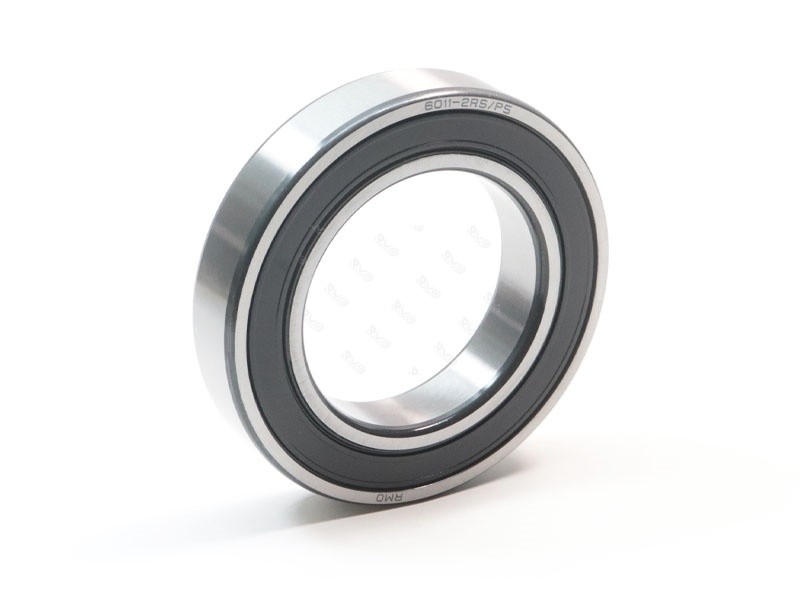

50 pcs6011RS P5 Grade Deep Groove Ball Bearing
⚙️Structural composition:
The 6011 P5 grade deep groove ball bearing adopts standardized design, mainly consists of the following components:
One inner ring and one outer ring, forming the track for the steel balls to move on.
A cage, used to evenly separate the steel balls.
A group of steel balls, constituting the rolling friction pair.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15) or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Support Sample testing |
Load capacity: Rated static load 21.8kN, dynamic load 30.2kN.
Lubrication speed: Limit speed for grease lubrication 7000r/min, limit speed for oil lubrication 8500r/min.
Geometric tolerances: Inner diameter 55mm ± 0.012mm, outer diameter 90mm ± 0.013mm.
• The axial offset between the bearing seat hole and the shaft should be controlled within a reasonable range.
• The maximum inclination angle of the shell hole relative to the shaft is allowed to be 8' - 16'.
• It is recommended to use the hot assembly method, with the heating temperature not exceeding 120℃.
• After installation, the axial clearance should be adjusted to a reasonable range.

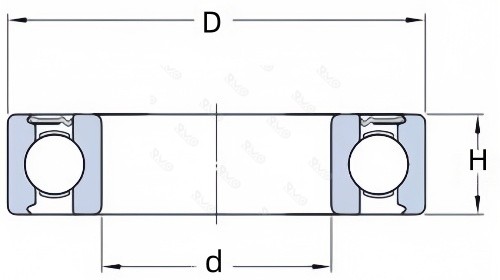

| Model No. | d | D | H | m | Model No. | d | D | H | m | |
| 6006RS | 30 mm | 55 mm | 13 mm | 0.12 KG | 6017RS | 85 mm | 130 mm | 22 mm | 0.89 KG | |
| 6007RS | 35 mm | 62 mm | 14 mm | 0.15 KG | 6018RS | 90 mm | 140 mm | 24 mm | 1.19 KG | |
| 6008RS | 40 mm | 68 mm | 15 mm | 0.19 KG | 6019RS | 95 mm | 145 mm | 24 mm | 1.16 KG | |
| 6009RS | 45 mm | 75 mm | 16 mm | 0.24 KG | 6020RS | 100 mm | 150 mm | 24 mm | 1.15 KG | |
| 6010RS | 50 mm | 80 mm | 16 mm | 0.26 KG | 6021RS | 105 mm | 160 mm | 26 mm | 1.59 KG | |
| 6011RS | 55 mm | 90 mm | 18 mm | 0.38 KG | 6022RS | 110 mm | 170 mm | 28 mm | 1.96 KG | |
| 6012RS | 60 mm | 95 mm | 18 mm | 0.4 KG | 6024RS | 120 mm | 180 mm | 28 mm | 2.05 KG | |
| 6013RS | 65 mm | 100 mm | 18 mm | 0.42 KG | 6026RS | 130 mm | 200 mm | 33 mm | 3.15 KG | |
| 6014RS | 70 mm | 110 mm | 20 mm | 0.59 KG | 6028RS | 140 mm | 210 mm | 33 mm | 3.35 KG | |
| 6015RS | 75 mm | 115 mm | 20 mm | 0.62 KG | 6030RS | 150 mm | 225 mm | 35 mm | 4.8 KG | |
| 6016RS | 80 mm | 125 mm | 22 mm | 0.86 KG | 6032RS | 160 mm | 240 mm | 38 mm | 5.9 KG |
This bearing performs exceptionally well in the following scenarios:
• Rotating components such as motors and gearboxes that need to withstand radial loads.
• Transmission systems with combined loads.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
