Item No :
60/32-2RSSize (d*D*B) :
32x58x13mmLead Time :
3-5 daysWeight :
0.13KGShipping Port :
ChinaMOQ :

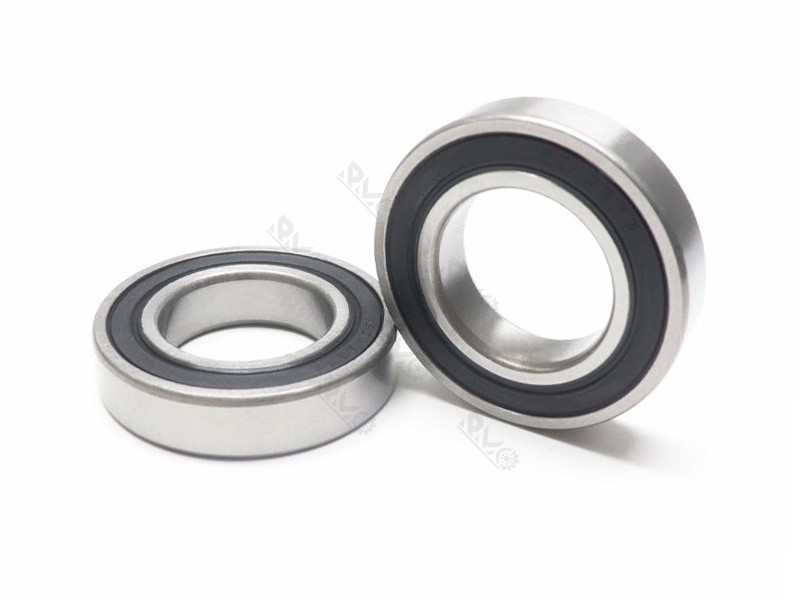

50 pcs60/32-2RS 32x58x13mm Deep Groove Ball Bearing
⚙️Structural features:
Deep groove ball structure: It belongs to deep groove ball bearings, featuring a deep groove-shaped raceway, capable of withstanding radial loads and certain axial loads, and having excellent rotational accuracy and low friction characteristics, making it suitable for high-speed rotating applications.
Sealing design: It is equipped with rubber sealing rings (RS or 2RS), which can effectively prevent dust, moisture, and other impurities from entering the bearing interior, while also preventing the leakage of lubricating grease inside the bearing, prolonging the bearing's service life and reducing maintenance costs.
Rolling elements and cage: Generally, high-quality ball bearings made of rolling bearing steel are used as rolling elements, with high hardness and wear resistance. The cage is usually made of steel plates and is used to maintain the uniform distribution of the balls, allowing the balls to roll smoothly and reducing friction and collisions between the balls.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Product |
| Service | Free Sample Can Be Provide |
High precision: The manufacturing accuracy is high, which can ensure the stability and reliability of the bearing during operation, reduce vibration and noise, and is suitable for equipment and machinery with high precision requirements.
High load-bearing capacity: Although it is a small bearing, it still has good radial load-bearing capacity, capable of withstanding certain radial loads and light axial loads, meeting the load requirements of various equipment.
Good wear resistance: The rolling elements and raceway surfaces undergo special heat treatment and processing techniques, having high hardness and wear resistance, which can maintain good performance over a long period of use, reduce wear, and extend the service life of the bearing.
Low friction coefficient: The structural design of the deep groove ball bearing results in a small friction coefficient between the rolling elements and the raceway, which can reduce energy loss, improve the transmission efficiency of the equipment, and lower energy consumption.
High-temperature resistance: Generally, the working temperature range of 60/32RS bearings is from -20℃ to +100℃, and they can withstand the highest temperature of up to +120℃ within a short period of time, capable of adapting to certain high-temperature working environments.

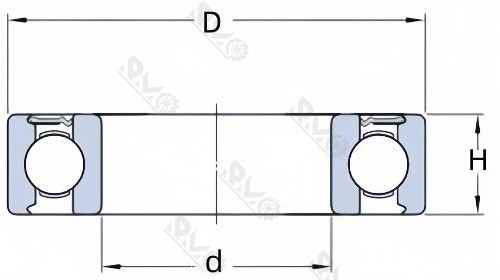

| Model No. | d | D | H | m |
| 607RS | 7 mm | 19 mm | 6 mm | 0.01 KG |
| 608RS | 8 mm | 22 mm | 7 mm | 0.01 KG |
| 609RS | 9 mm | 24 mm | 7 mm | 0.01 KG |
| 6000RS | 10 mm | 26 mm | 8 mm | 0.02 KG |
| 6001RS | 12 mm | 28 mm | 8 mm | 0.02 KG |
| 6002RS | 15 mm | 32 mm | 9 mm | 0.03 KG |
| 6003RS | 17 mm | 35 mm | 10 mm | 0.04 KG |
| 6004RS | 20 mm | 42 mm | 12 mm | 0.07 KG |
| 60/22RS | 22 mm | 44 mm | 12 mm | 0.07 KG |
| 6005RS | 25 mm | 47 mm | 12 mm | 0.08 KG |
| 60/28RS | 28 mm | 52 mm | 12 mm | 0.1 KG |
| 6006RS | 30 mm | 55 mm | 13 mm | 0.12 KG |
| 60/32RS | 32 mm | 58 mm | 13 mm | 0.13 KG |
Commonly found in transportation equipment, industrial motors, mechanical transmission devices, and other fields, such as forklifts, printing machinery, woodworking machinery, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
