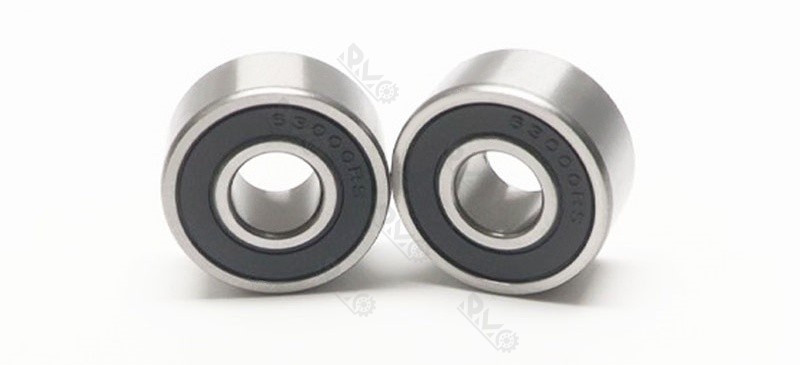

63000-2RS Thickened 6000-2RS Single Row Deep Groove Ball Bearing
Item No :

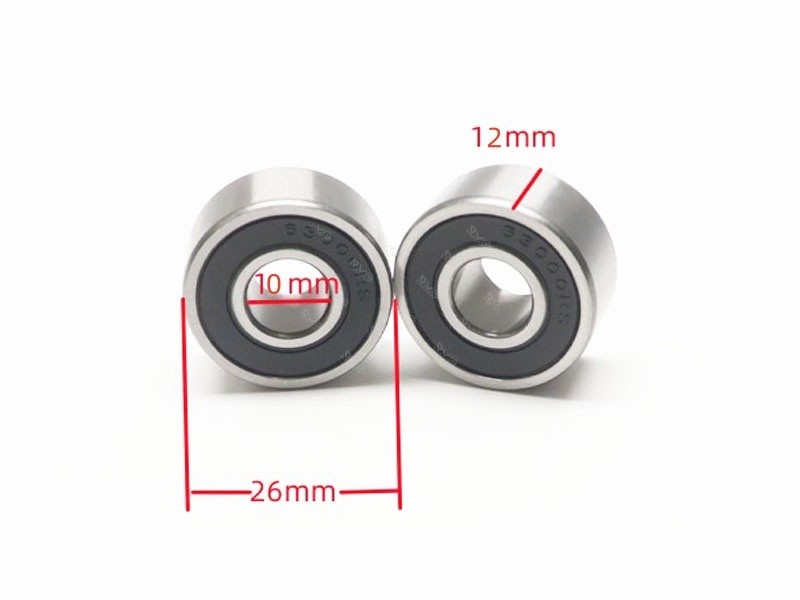

63000-2RSSize (d*D*B) :
10x26x12mmLead Time :
3-5 DaysWeight :
0.025KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :
100 pcs63000-2RS Thickened 6000-2RS Single Row Deep Groove Ball Bearing
⚙️Structural features:
This bearing adopts a simple, universal and sturdy design. The cage is made of stamped steel and features low friction and high-speed performance. It can withstand radial loads and bidirectional axial loads, and requires almost no maintenance.
Performance parameters: The basic rated dynamic load is 4.62 KN, the basic rated static load is 1.96 KN, and the maximum rotational speed is 19,000 r/min.
The working temperature range is from -20℃ to +120℃, suitable for most industrial environments.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Free Sample Can Be Provided |
Superior Sealing and Maintenance Advantages:
The dual-side RS contact sealing design forms a double protective barrier, effectively preventing dust, liquids, and other contaminants from invading.
Structural Universality and Adaptability:
Its standardized design enables replacement of the same model with mainstream global brands. Installation does not require special tools. It can be used as a fixed bearing to bear bidirectional axial loads, or as a floating bearing to adapt to axial displacement requirements, suitable for various installation scenarios.
Balanced Performance Combination:
It combines high rotational speed and low noise characteristics. Through the optimized raceway curve and steel plate cage design, the vibration value during rotation can be controlled at a low level. At the same time, its structure can withstand radial loads mainly, and can also withstand a certain amount of bidirectional axial loads, meeting the needs of multiple working conditions.

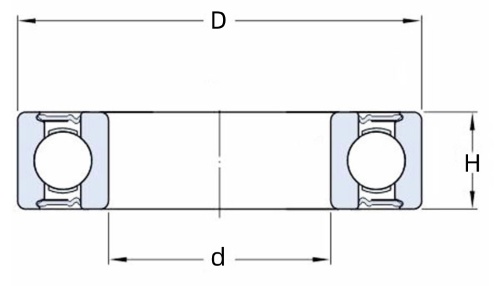

| Model No. | d | D | H | m |
| 630/8-2RS | 8 mm | 22 mm | 11 mm | 16 g |
| 63000-2RS | 10 mm | 26 mm | 12 mm | 25 g |
| 63001-2RS | 12 mm | 28 mm | 12 mm | 29 g |
| 63002-2RS | 15 mm | 32 mm | 13 mm | 39 g |
| 63003-2RS | 17 mm | 35 mm | 14 mm | 52 g |
| 63004-2RS | 20 mm | 42 mm | 16 mm | 86 g |
| 63005-2RS | 25 mm | 47 mm | 16 mm | 110 g |
| 63006-2RS | 30 mm | 55 mm | 19 mm | 170 g |
| 63007-2RS | 35 mm | 62 mm | 20 mm | 230 g |
| 63008-2RS | 40 mm | 68 mm | 21 mm | 270 g |
| 63009-2RS | 45 mm | 75 mm | 23 mm | 360 g |
| 63010-2RS | 50 mm | 80 mm | 23 mm | 380 g |
Due to its excellent comprehensive performance, it is applicable to various industrial equipment, such as precision instruments, low-noise motors, micro-motors, small rotating motors, office equipment, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
