Item No :
630/8-2RSSize (d*D*B) :
8x22x11mmLead Time :
3-5 DaysWeight :
0.016KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :

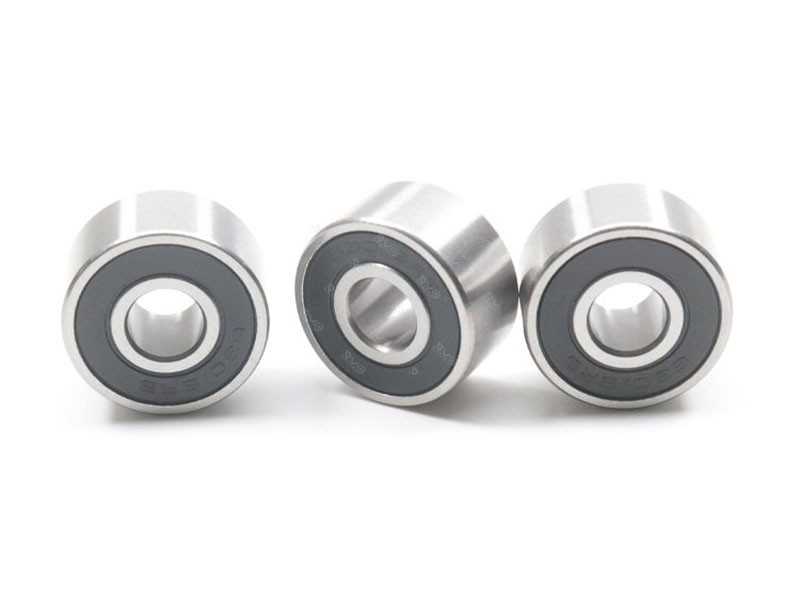

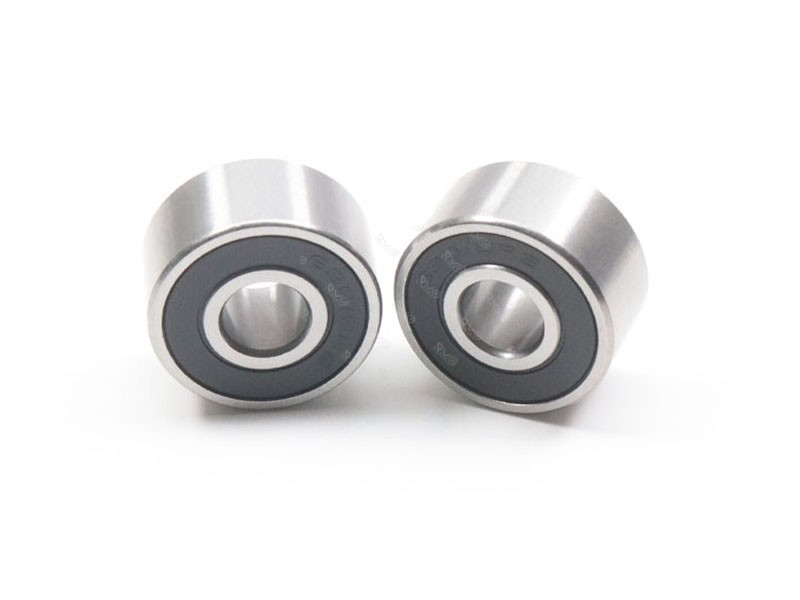

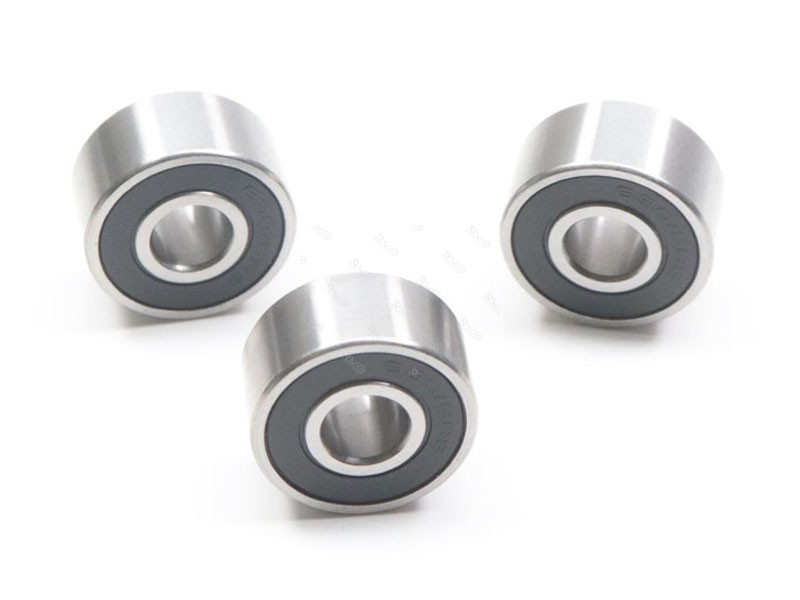

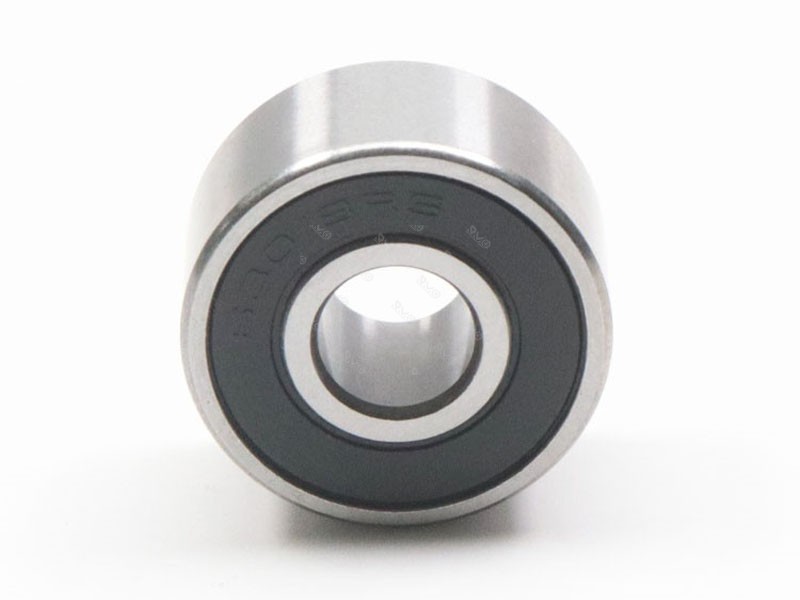

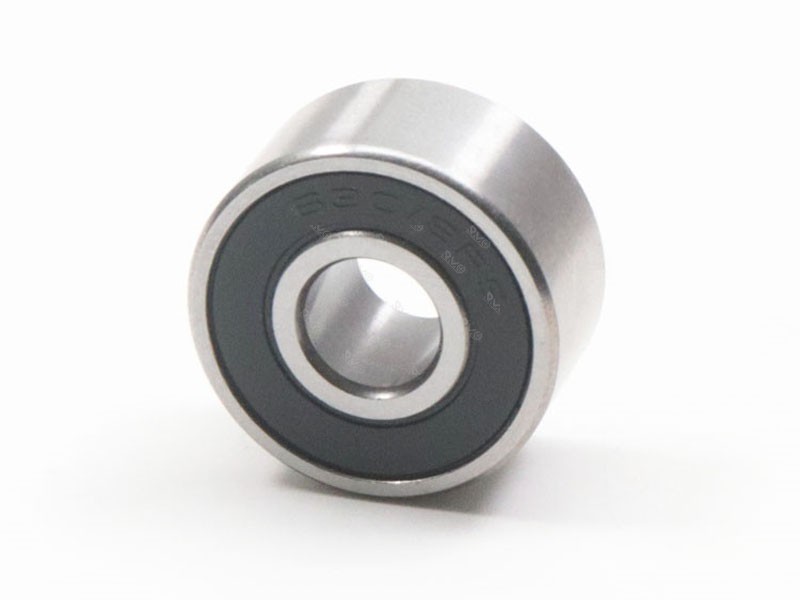

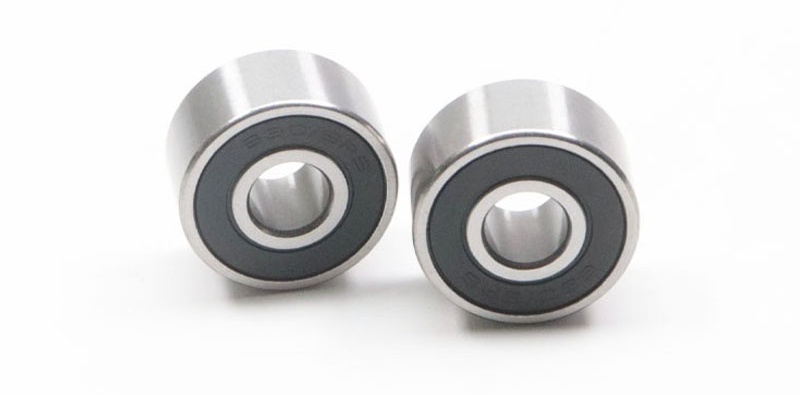

100 pcs630/8-2RS Low Noise Single Row Deep Groove Ball Bearing
⚙️Basic structure:
The 630/8-2RS adopts a single-row deep groove ball structure, consisting of an inner ring, an outer ring, a pressed steel cage, bearing steel rollers, and contact-type sealing rings on both sides. The inner ring is in a press-fit with the shaft, and the outer ring is in a clearance fit with the bearing housing. The rolling elements enable low-friction rotation.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Free Sample Can Be Provided |
Sealing protection: The 2RS contact-type sealing ring can effectively prevent dust, liquids and other contaminants from entering, and also prevent the leakage of internal lubricating grease, extending the service life by more than 30%;
Load capacity: It can withstand radial main load and bidirectional axial additional load. The basic rated dynamic load is 3.45 KN, and the static load is 1.37 KN;
Speed performance: When lubricated with grease, the maximum speed reaches 5000-8500 r/min. When lubricated with oil, it can be increased to 12000 r/min, suitable for medium-high speed scenarios;
Maintenance requirements: Factory pre-filled with lubricating grease, and there is no supplementary lubrication slot. Under normal operating conditions, almost no maintenance is required, reducing equipment operation and maintenance costs.

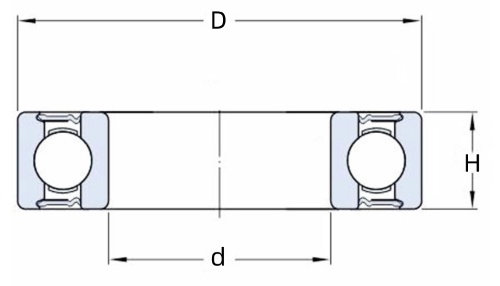

| Model No. | d | D | H | m |
| 630/8-2RS | 8 mm | 22 mm | 11 mm | 16 g |
| 63000-2RS | 10 mm | 26 mm | 12 mm | 25 g |
| 63001-2RS | 12 mm | 28 mm | 12 mm | 29 g |
| 63002-2RS | 15 mm | 32 mm | 13 mm | 39 g |
| 63003-2RS | 17 mm | 35 mm | 14 mm | 52 g |
| 63004-2RS | 20 mm | 42 mm | 16 mm | 86 g |
| 63005-2RS | 25 mm | 47 mm | 16 mm | 110 g |
| 63006-2RS | 30 mm | 55 mm | 19 mm | 170 g |
| 63007-2RS | 35 mm | 62 mm | 20 mm | 230 g |
| 63008-2RS | 40 mm | 68 mm | 21 mm | 270 g |
| 63009-2RS | 45 mm | 75 mm | 23 mm | 360 g |
| 63010-2RS | 50 mm | 80 mm | 23 mm | 380 g |
Thanks to its "universal, low maintenance, and high reliability" features, it is widely used in the following fields:
Industrial machinery: crimping machines, hot pressing machines, fusion welding machines, rotating shaft systems of vibration discs;
Light industrial equipment: glue dispensing machines, electronic component forming machines, packaging machinery's transmission mechanisms;
Motors and pumps: small asynchronous motors, end cover bearings of centrifugal pumps;
Others: electroplating equipment, agricultural machinery, medical devices, etc. (with low to medium pollution levels in the environment).
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
