Item No :
F6-12MSize (d*D*B) :
6x12x4.5mmLead Time :
3-5 daysWeight :
0.0022KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :
100 pcs6x12x4.5mm F6-12M Chrome Steel Mini Thrust Ball Bearing
⚙️Structural Design:

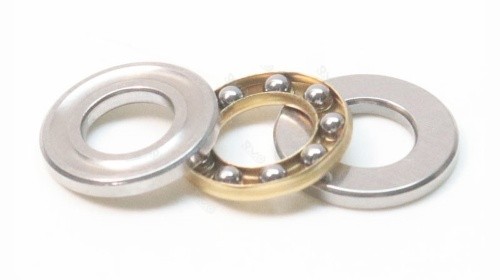

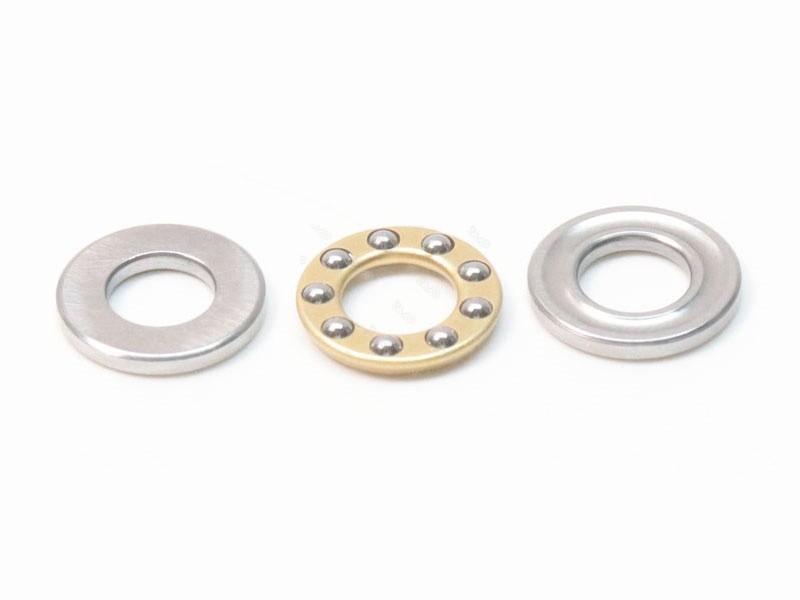

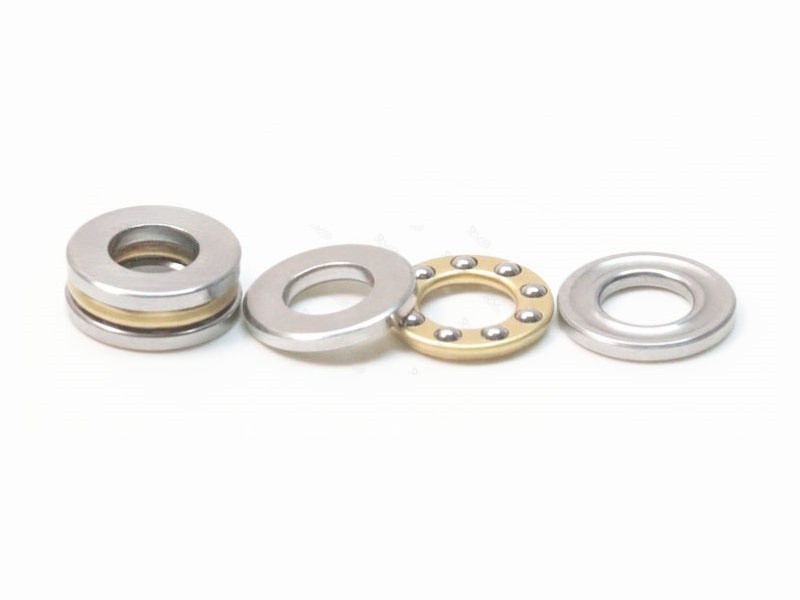

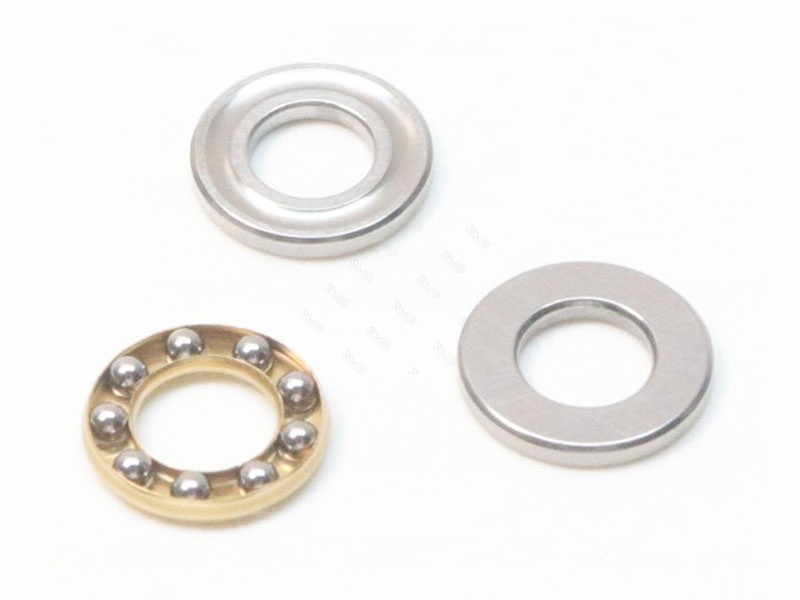

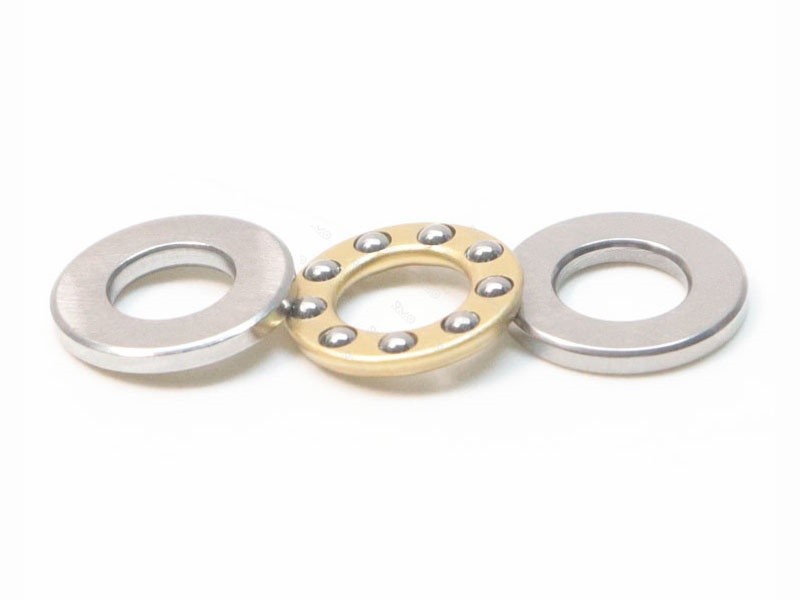

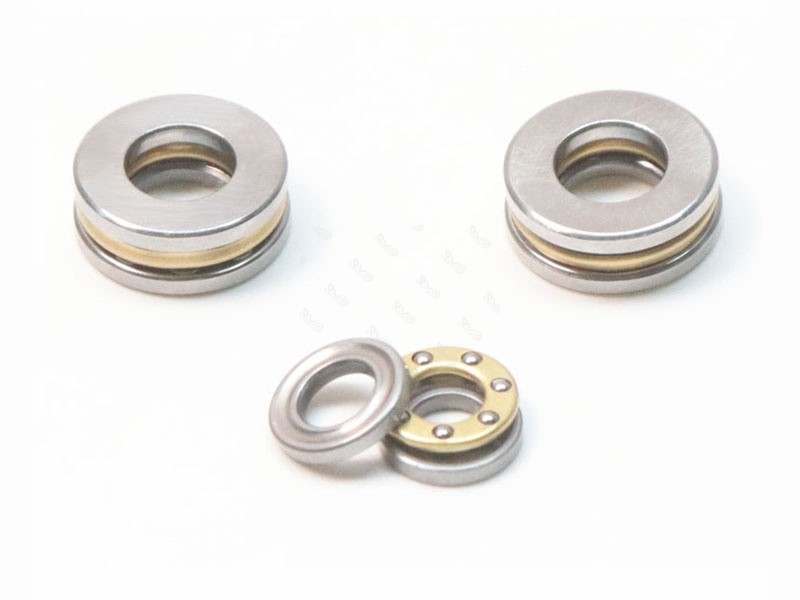

The F6-12M bearing is a type of miniature thrust ball bearing. consists of two washers and balls, along with a cage assembly. The washers are used to support axial loads, the rollers have a grooved design to ensure smooth axial movement of the balls, while also preventing the balls and the retaining ring from moving during rotation, thereby reducing contact with the shaft and the housing. The cage is made of brass, which ensures smooth operation of the bearing and enhances durability.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Material | Chrome steel(Gcr15) or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Shipping Port | GUANGZHOU,NINGBO,SHANGHAI |
| Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
| Service | Free sample can be provided |
Load capacity: It can withstand relatively high axial loads in a small space.
Rotational speed and temperature: The maximum rotational speed can reach 5000 rpm, and the working temperature range is generally from -30°C to 110°C. It can operate stably within a certain temperature range.

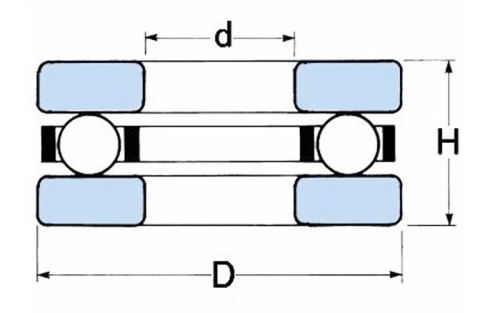

| Model No. | d | D | H | m |
| F3-8M | 3 mm | 8 mm | 3.5 mm | 0.9 g |
| F4-9M | 4 mm | 9 mm | 4 mm | 1.2 g |
| F4-10M | 4 mm | 10 mm | 4 mm | 1.5 g |
| F5-12M | 5 mm | 12 mm | 4 mm | 2.1 g |
| F6-12M | 6 mm | 12 mm | 4.5 mm | 2.2 g |
| F6-14M | 6 mm | 14 mm | 5 mm | 3.5 g |
| F7-13M | 7 mm | 13 mm | 4.5 mm | 2.6 g |
| F7-17M | 7 mm | 17 mm | 6 mm | 6.5 g |
| F8-16M | 8 mm | 16 mm | 5mm | 4.5 g |
| F8-19M | 8 mm | 19 mm | 7 mm | 9.1 g |
| F9-20M | 9 mm | 20 mm | 7 mm | 9.9 g |
| F10-18M | 10 mm | 18 mm | 5.5 mm | 5.4 g |

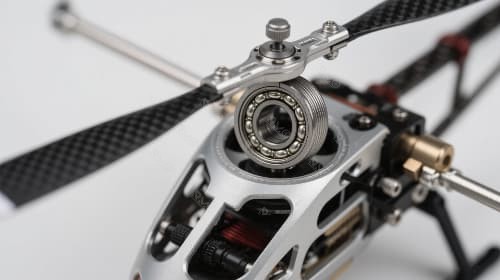

Due to its compact size and excellent axial load-bearing capacity, it is widely used in small motors, precision instruments, compact mechanical components, automotive transmissions, aerospace equipment, and medical equipment, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
