8x14x4mm F8-14 Small Miniature Thrust Ball Bearing for Model Toys
Item No :
F8-14Size (d*D*B) :
8x14x4mmLead Time :
3-5 daysWeight :
0.0025KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :
100 pcsF8-14 Small Miniature Thrust Ball Bearing for Model Toys
⚙️Structure composition:

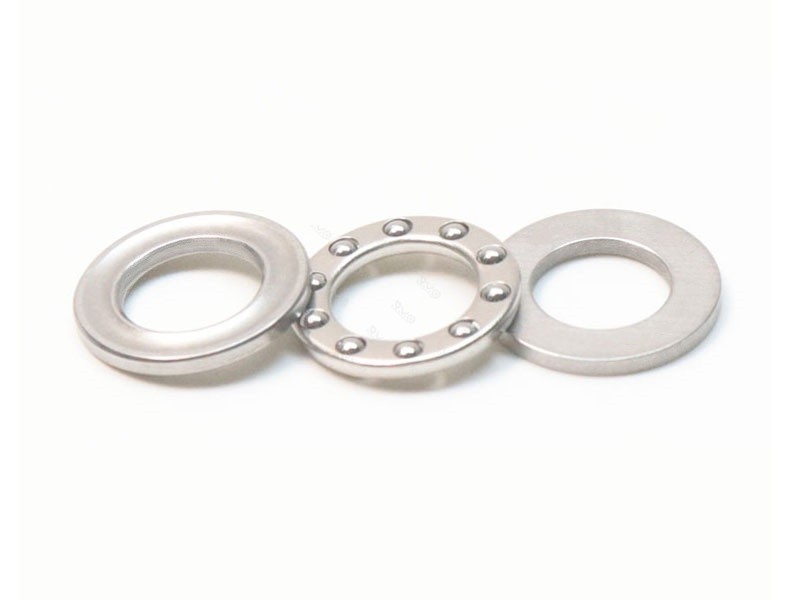

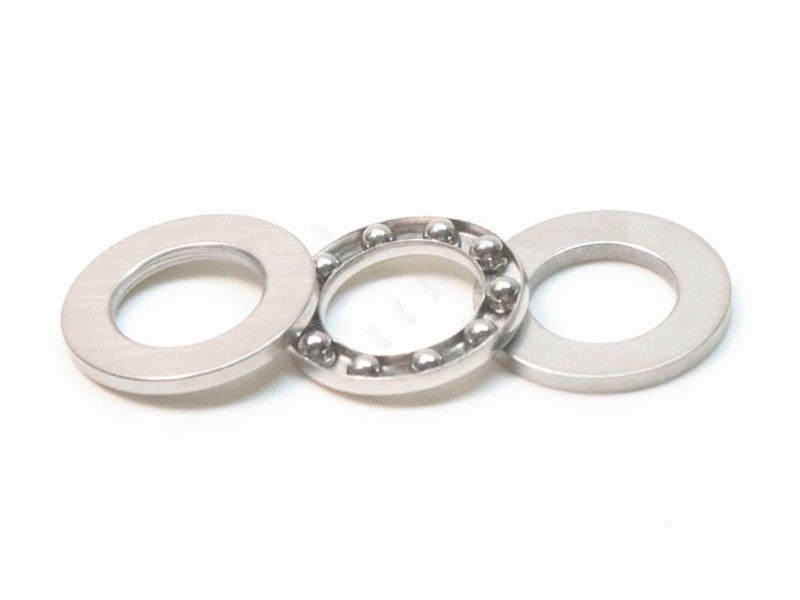

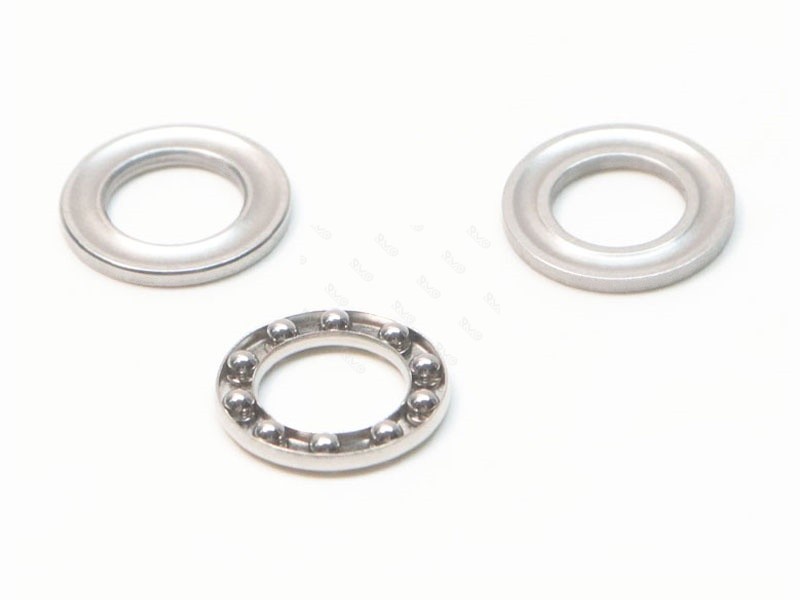

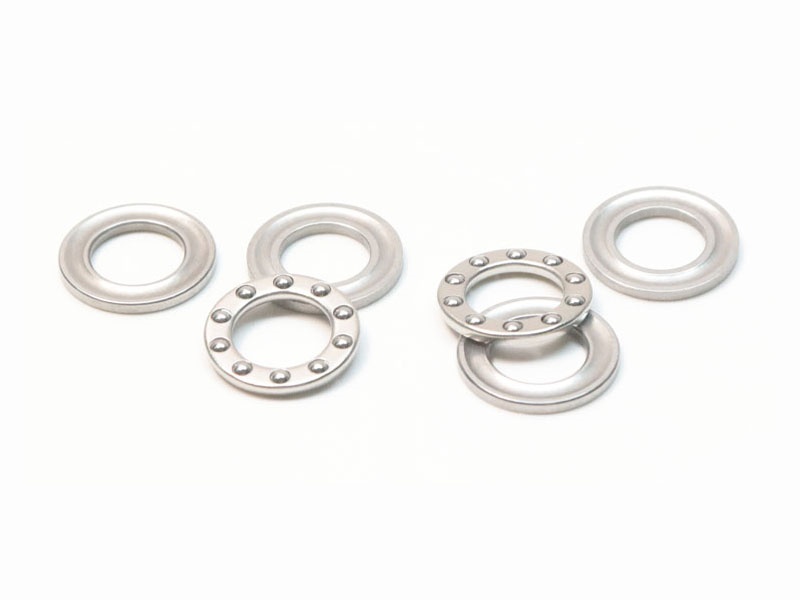

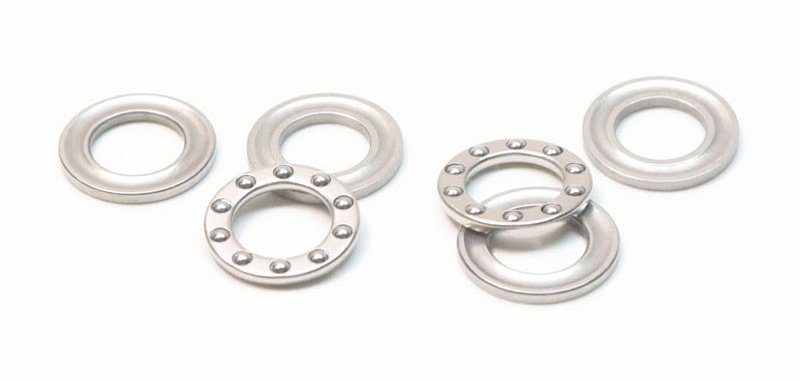

F8-14 consists of an axle ring, a seat ring, and a set of steel balls and a cage. The axle ring mates with the shaft, the seat ring mates with the bearing housing or other components, and the steel balls roll between the axle ring and the seat ring. The cage is used to maintain the position and spacing of the steel balls, allowing them to be evenly distributed and roll smoothly.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Material | Chrome steel(Gcr15) or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Shipping Port | GUANGZHOU,NINGBO,SHANGHAI |
| Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
| Service | Free sample can be provided |
The size is compact, suitable for use in micro devices or precision instruments with limited space; it can withstand a certain axial load. Under the action of axial force, the contact area between the steel ball and the shaft ring and seat ring is small, and the friction coefficient is low, enabling smooth axial movement; it has a high rotational accuracy, ensuring the stability and reliability of the equipment operation; some F8-14 bearings also have good high-speed performance and can operate normally at higher rotational speeds.

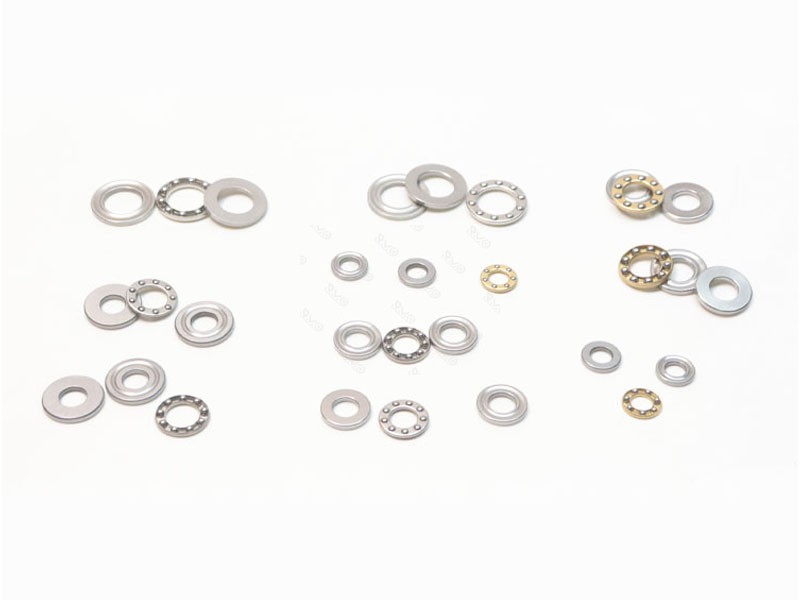

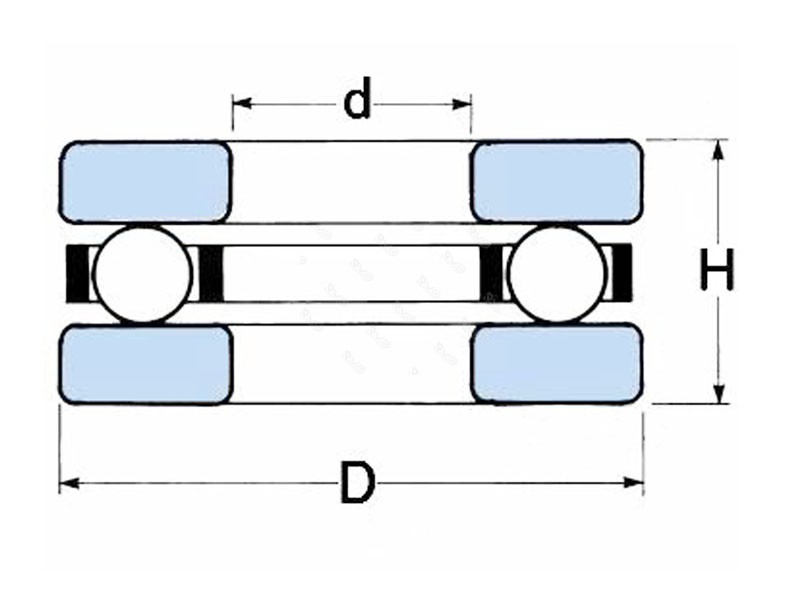

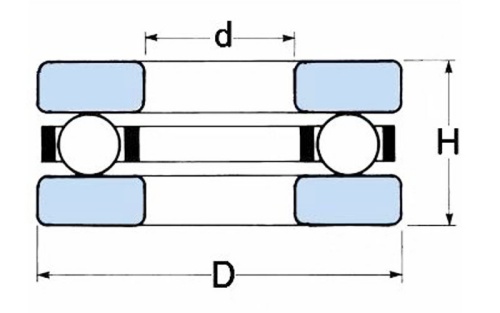

| Model No. | d | D | H | m |
| F2-6 | 2 mm | 6 mm | 3 mm | 0.6 g |
| F2X-7 | 2.5 mm | 7 mm | 3.5 mm | 0.9 g |
| F3-6 | 3 mm | 6 mm | 2.8 mm | 0.6 g |
| F3-8 | 3 mm | 8 mm | 3.5 mm | 0.6 g |
| F4-9 | 4 mm | 9 mm | 4 mm | 1.5 g |
| F4-10 | 4 mm | 10 mm | 4.5 mm | 2 g |
| F5-10 | 5 mm | 10 mm | 4 mm | 2.2 g |
| F5-11 | 5 mm | 11 mm | 4.5 mm | 2.4 g |
| F5-12 | 5 mm | 12 mm | 4 mm | 2.4 g |
| F6-12 | 6 mm | 12 mm | 4.5 mm | 2.5 g |
| F7-15 | 7 mm | 15 mm | 5 mm | 4.4 g |
| F8-14 | 8 mm | 14 mm | 4 mm | 2.5 g |
| F8-16 | 8 mm | 16 mm | 5 mm | 5 g |
| F9-17 | 9 mm | 17 mm | 5 mm | 5.1 g |
| F10-18 | 10 mm | 18 mm | 5.5 mm | 6 g |
Precision instruments, small machinery, automation equipment, model toys, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
