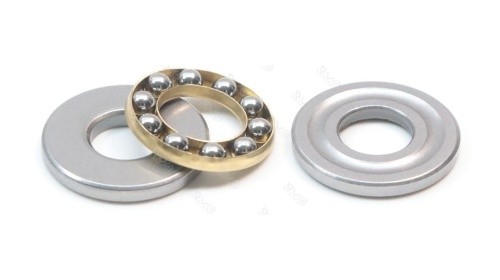

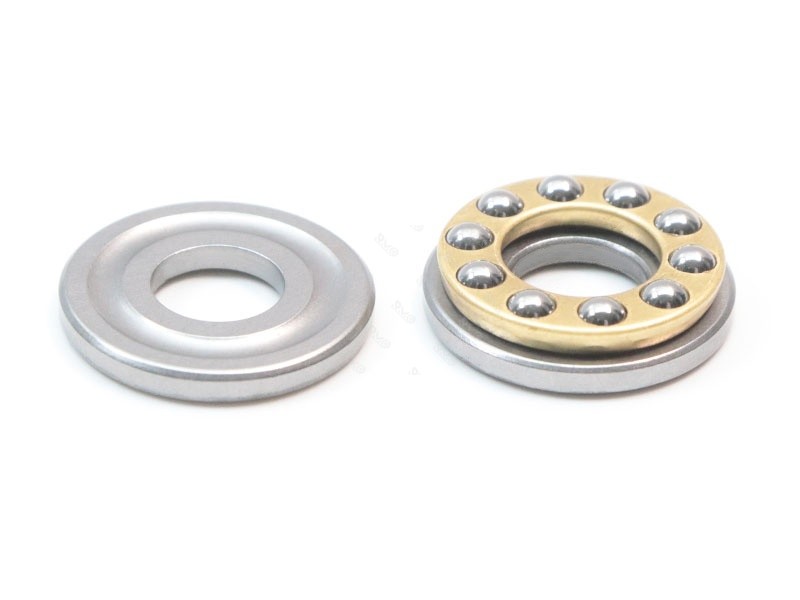

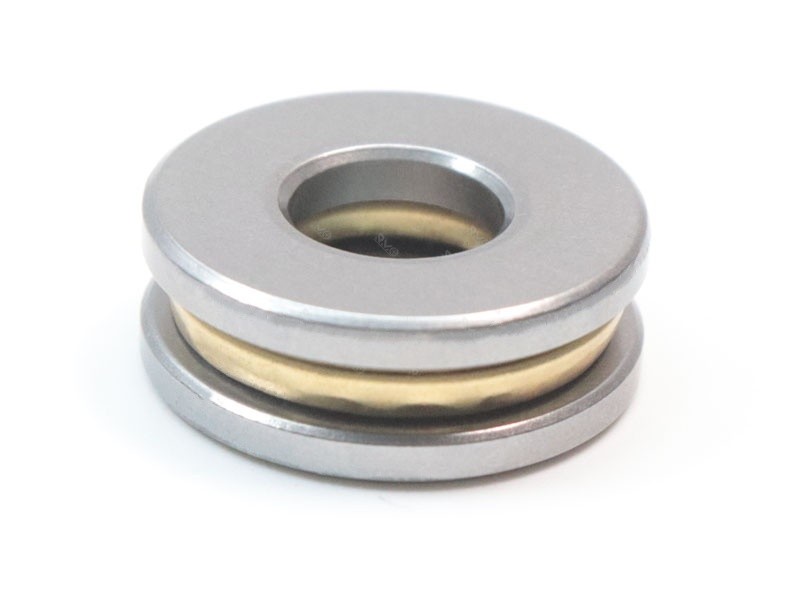

8x19x7mm F8-19M Miniature Thrust Ball Bearing With Brass Cage
Item No :
F8-19MSize (d*D*B) :
8x19x7mmLead Time :
3-5 daysWeight :
0.0091KGShipping Port :
GuangZhou, NingBo, ShangHaiMOQ :
100 pcs8x19x7mm F8-19M Miniature Thrust Ball Bearing With Brass Cage
⚙️Structural Design:

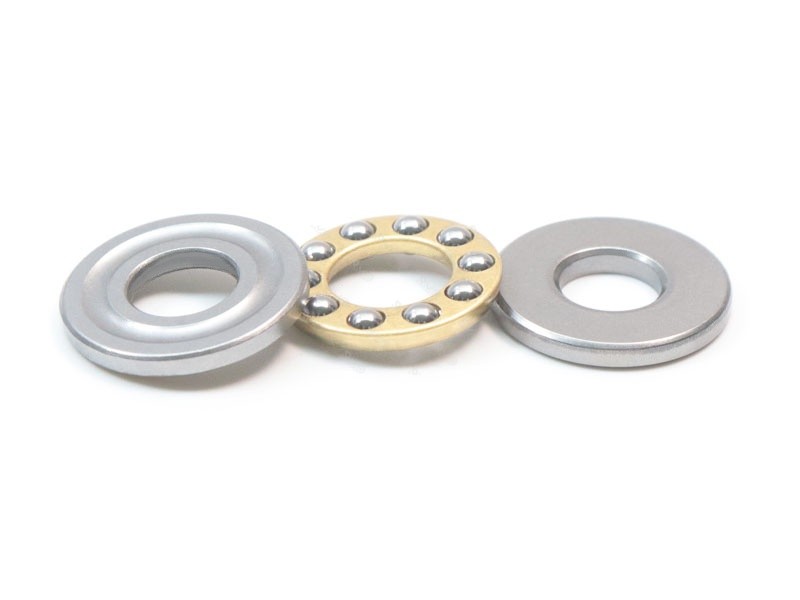

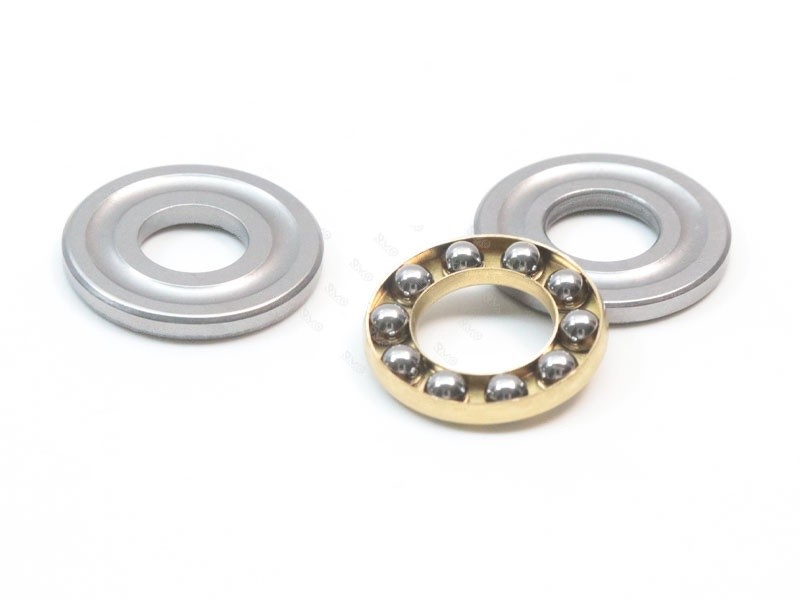

Component composition: It is composed of two washers, a set of balls and a cage assembly. The washers are used to support axial loads, while the ball and cage assembly enables the bearing to maintain low friction during high-speed rotation.
Raceway type: It adopts a grooved raceway design. This design ensures that when the bearing is subjected to axial loads, the balls have better contact with the raceway and the load is distributed more evenly, thereby enhancing the bearing's load-carrying capacity and operational stability.
| Cage material | Steel, Nylon, Copper |
| Branding | famous brand/RMO/Neutral/OEM |
| Material | Chrome steel(Gcr15) or stainless steel |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T or 30% T/T in advance ,70% T/T after finished production |
| Service | Free sample can be provided |

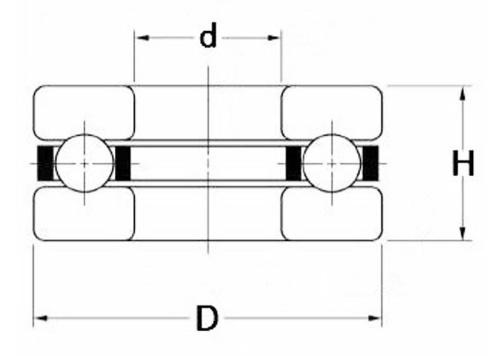

| Model No. | d | D | H | m |
| F3-8M | 3 mm | 8 mm | 3.5 mm | 0.9 g |
| F4-9M | 4 mm | 9 mm | 4 mm | 1.2 g |
| F4-10M | 4 mm | 10 mm | 4 mm | 1.5 g |
| F5-12M | 5 mm | 12 mm | 4 mm | 2.1 g |
| F6-12M | 6 mm | 12 mm | 4.5 mm | 2.2 g |
| F6-14M | 6 mm | 14 mm | 5 mm | 3.5 g |
| F7-13M | 7 mm | 13 mm | 4.5 mm | 2.6 g |
| F7-17M | 7 mm | 17 mm | 6 mm | 6.5 g |
| F8-16M | 8 mm | 16 mm | 5mm | 4.5 g |
| F8-19M | 8 mm | 19 mm | 7 mm | 9.1 g |
| F9-20M | 9 mm | 20 mm | 7 mm | 9.9 g |
| F10-18M | 10 mm | 18 mm | 5.5 mm | 5.4 g |

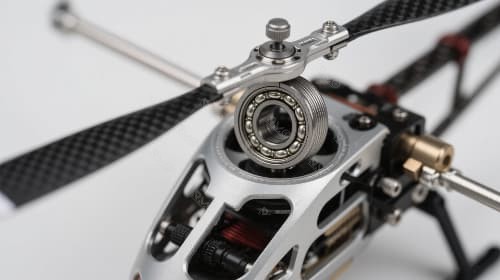

automotive industry, motor field, aerospace, medical devices, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
