Item No :
FC-25 HF2520Size (d*D*B) :
25x32x20mmMaterial :
ST14 steel with chrome steel GCr15Lead Time :
3-5 daysWeight :
0.03KGPayment Terms :
100% T/T or 30% T/T before production, 70% before deliveryMOQ :
50 PCSPackage :
plastic bag, plastic tube or single box+Carton+PalletShipping Port :

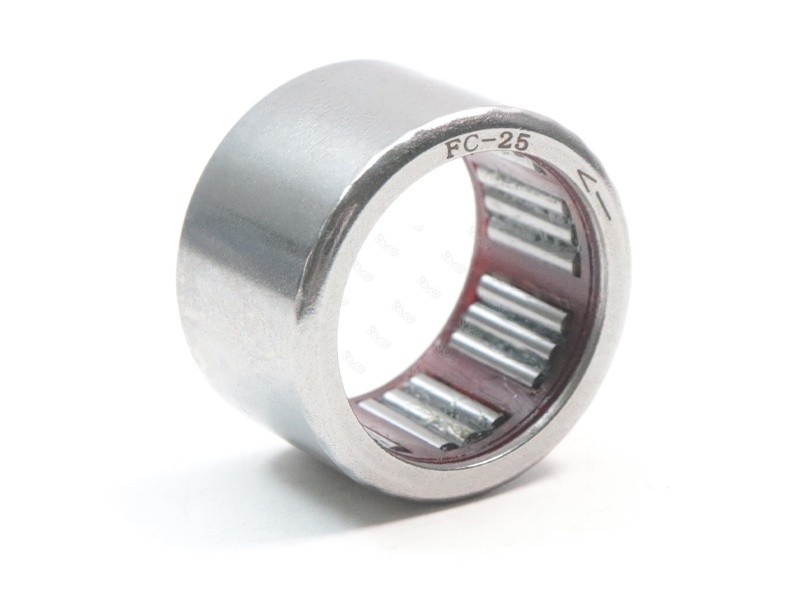

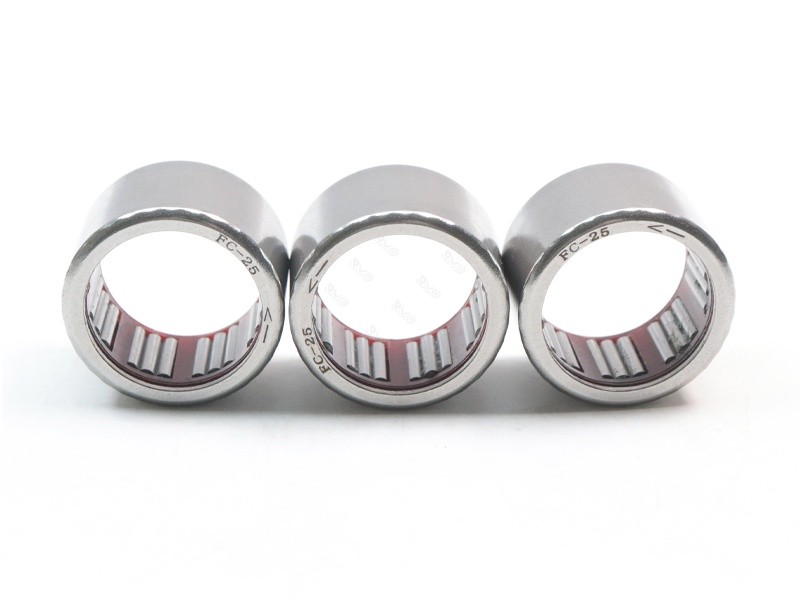

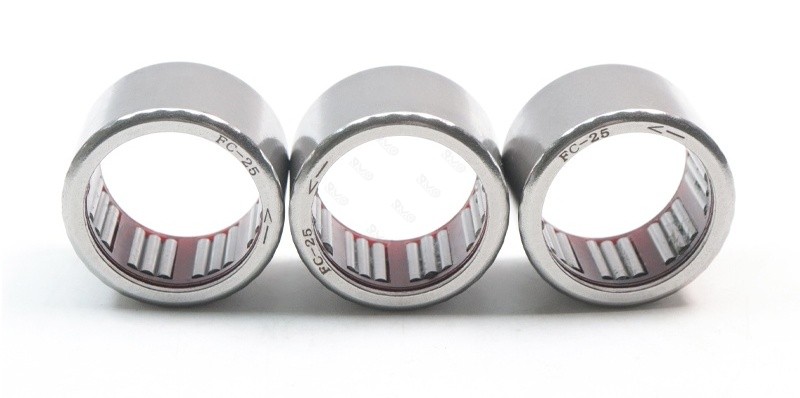

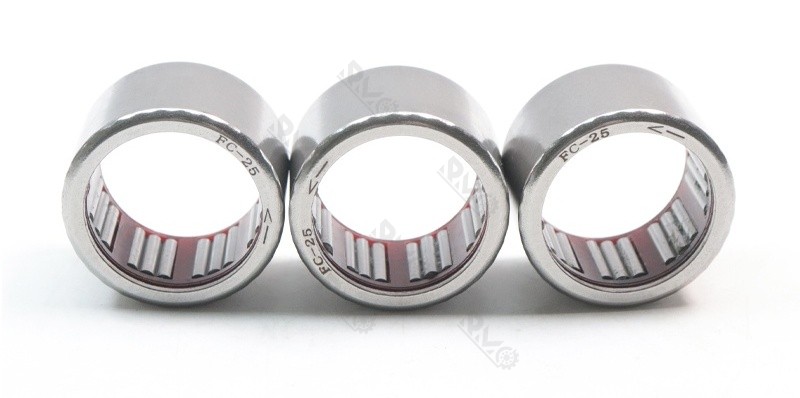

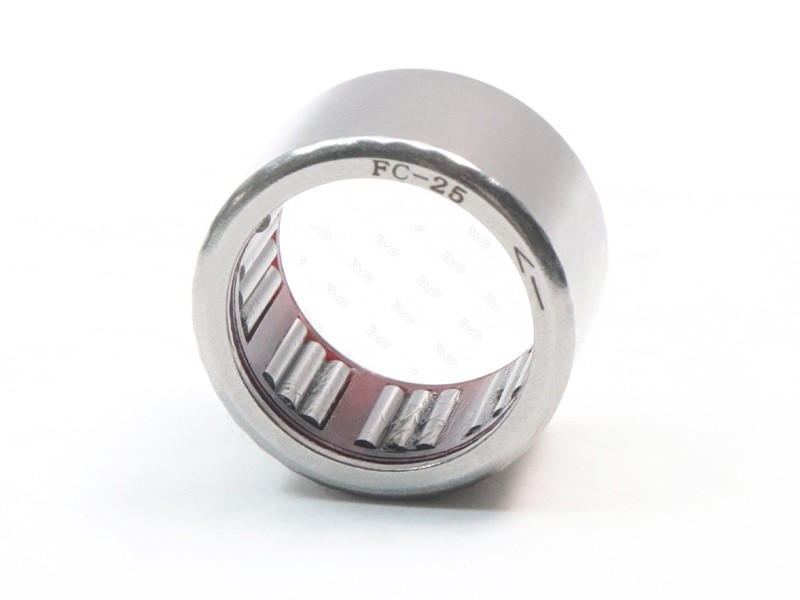

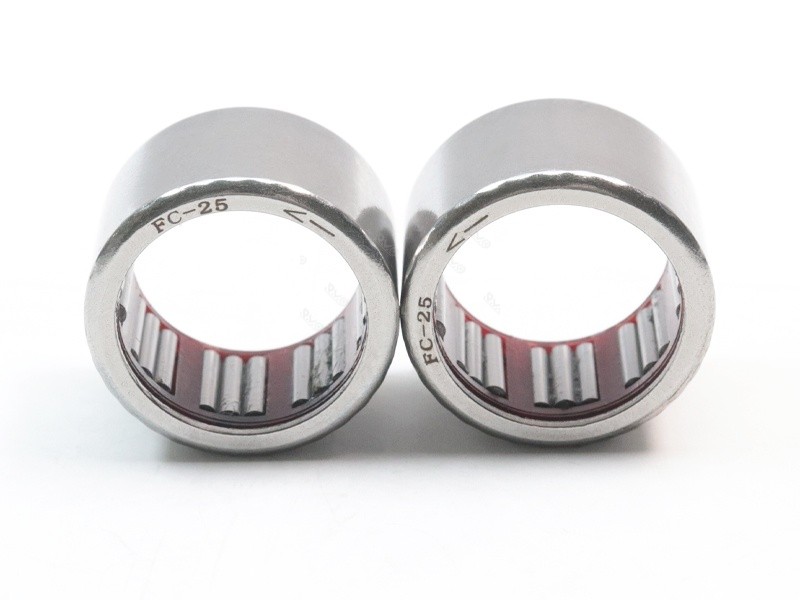

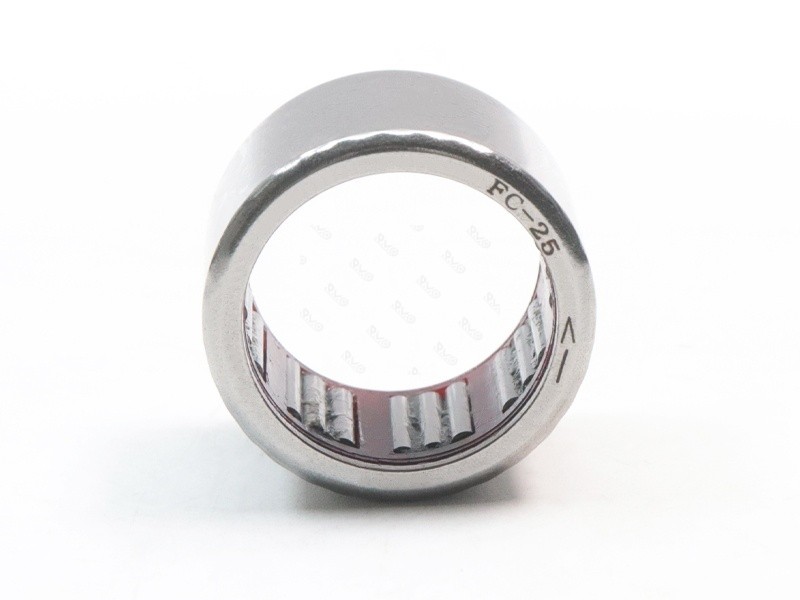

Guangzhou, Ningbo, ShanghaiFC-25 HF2520 One-way Needle Roller Bearing
⚙️Structural features:
The FC-25 is a one-way clutch needle roller bearing with an outer ring. The outer ring is formed by stamping and has a compact structure. It adopts a single row of needle rollers design, with the needle rollers being both thin and long, capable of withstanding large loads within a small radial space. The clutch part of the bearing usually comes with a spring, which is integrally formed with the cage to position the needle rollers and achieve the locking function.
⚙️Material: The inner and outer rings are made of bearing steel, which has high hardness and wear resistance. The cage is made of nylon.
⚙️Performance features: It has low noise and low idle speed characteristics. Due to its light weight, it allows for a higher dividing frequency. The allowable torque is approximately 66Nm, and the rotational speed can reach 5500r/min.

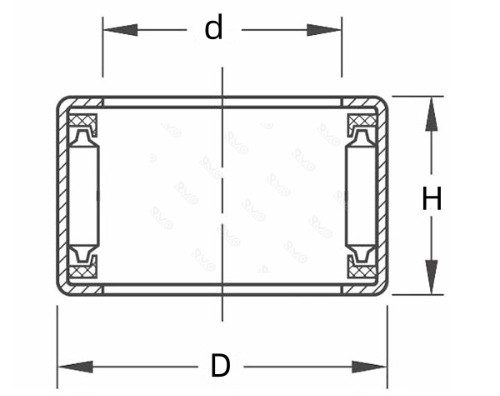

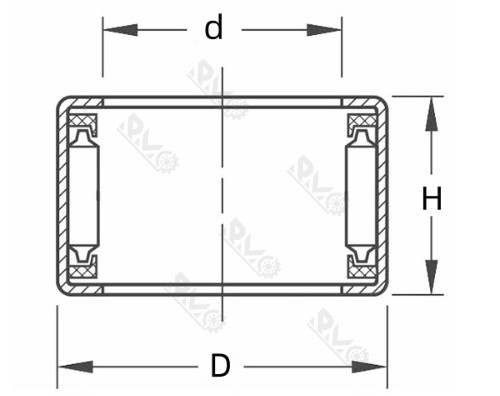

| Model No. | d | D | H | KG |
| RC-02 | 3.18 mm | 7.14 mm | 6.35 mm | 0.001 |
| FC-4-K | 4 mm | 8 mm | 6 mm | 0.001 |
| FCS-6 | 6 mm | 10 mm | 12 mm | 0.003 |
| RC-040708 | 6.35 mm | 11.11 mm | 12.7 mm | 0.003 |
| FCL-8-K | 8 mm | 12 mm | 12 mm | 0.0035 |
| FC-8 | 8 mm | 14 mm | 12 mm | 0.0035 |
| RC-061008 | 9.52 mm | 15.88 mm | 12.7 mm | 0.004 |
| FCL-10-K | 10 mm | 14 mm | 12 mm | 0.004 |
| FC-10 | 10 mm | 16 mm | 12 mm | 0.004 |
| FC-12 | 12 mm | 18 mm | 16 mm | 0.012 |
| RC-081208 | 12.7 mm | 19.05 mm | 12.7 mm | 0.013 |
| RC-101410 | 15.88 mm | 22.22 mm | 15.88 mm | 0.014 |
| FC-16 | 16 mm | 22 mm | 16 mm | 0.015 |
| RC-121610 | 19.05 mm | 25.4 mm | 15.88 mm | 0.016 |
| FC-20 | 20 mm | 26 mm | 16 mm | 0.017 |
| FC-25 | 25 mm | 32 mm | 20 mm | 0.031 |
| RC-162110 | 25.4 mm | 33.34 mm | 15.88 mm | 0.032 |
| FC-30 | 30 mm | 37 mm | 20 mm | 0.036 |
Suitable for various mechanical equipment, such as toys, skateboards, fitness equipment, money-counting machines, washing machines, fishing gear, dishwashers, sticker printers, textile machines, vacuum cleaners, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
