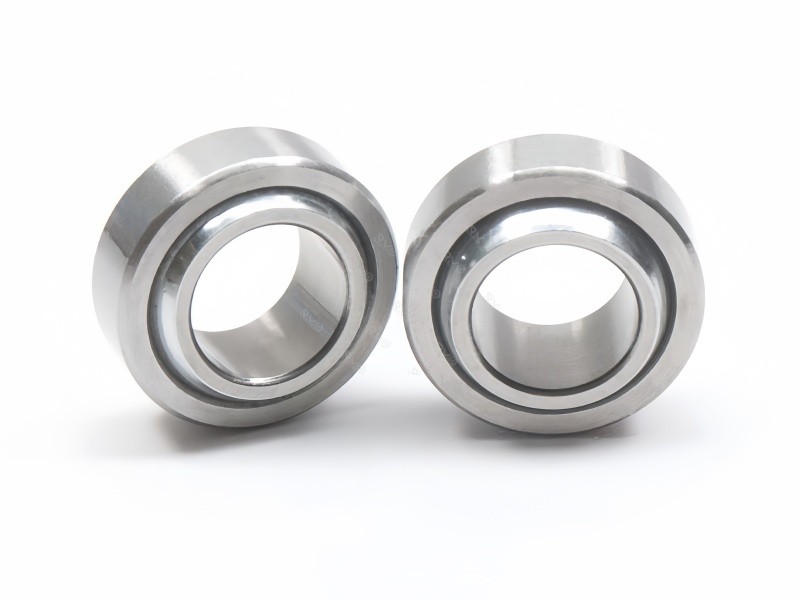

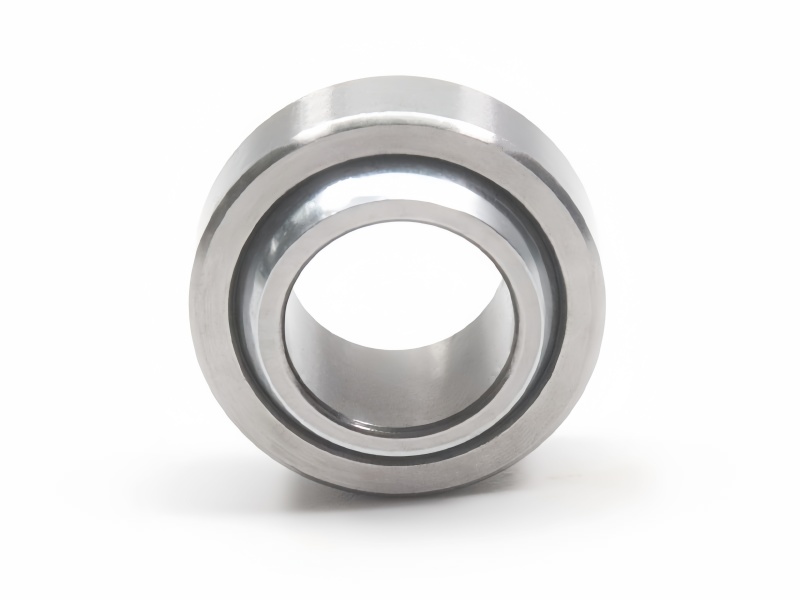

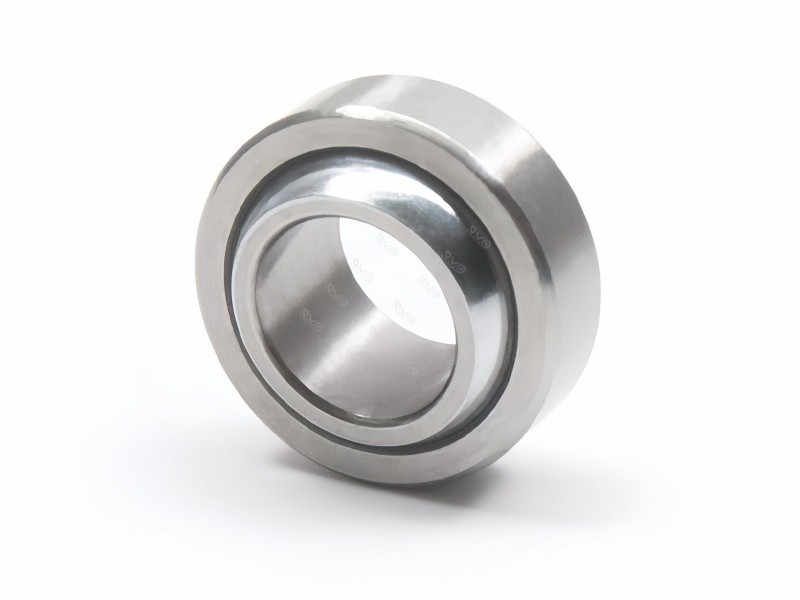

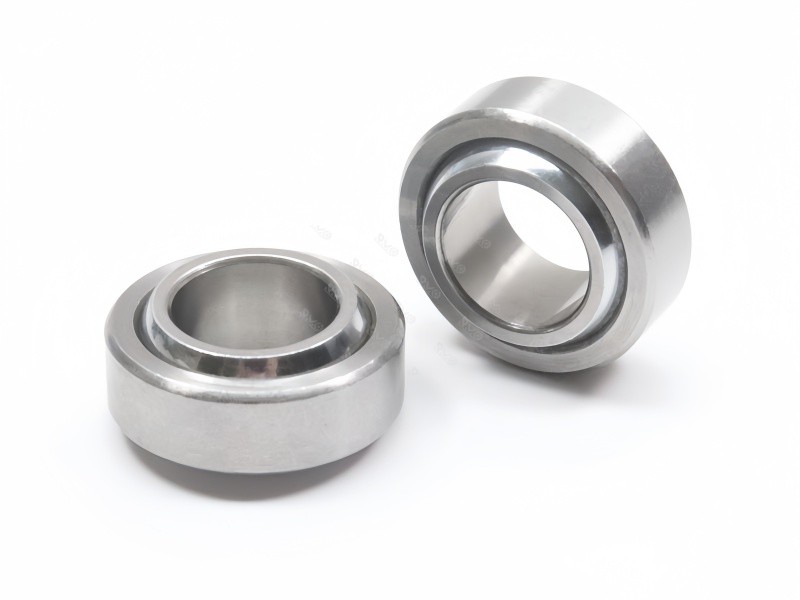

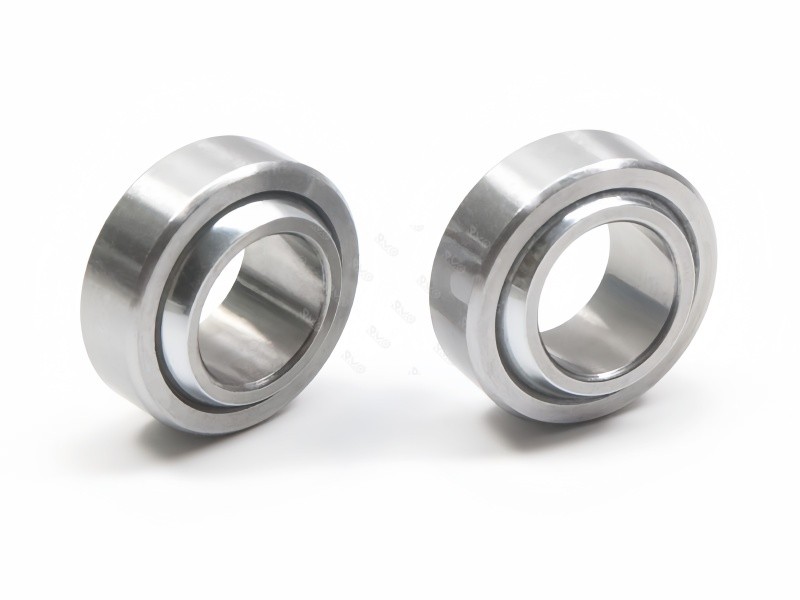

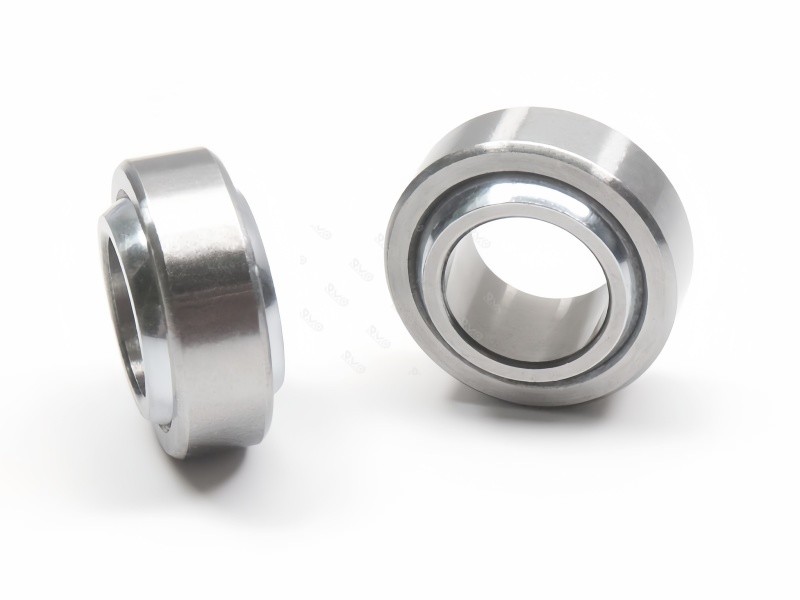

GE12C Spherical Plain Bearing

⚙️Working principle:

The inner and outer rings of the GE-C radial joint bearing form a spherical sliding friction pair. When the bearing is subjected to radial load and a certain axial load, the outer spherical surface of the inner ring can slide and swing relative to the inner spherical surface of the outer ring. It can automatically align itself within a certain angle range to adapt to the different eccentricity and inclination between the shaft and the bearing housing, ensuring the normal operation of the bearing.

⚙️Performance features:

1. Self-lubrication: Due to the use of self-lubricating materials such as sintered bronze composite materials on the sliding surfaces of the outer ring, no additional lubricating oil or grease needs to be added during operation, achieving excellent lubrication effects, reducing friction and wear, and lowering maintenance costs and work intensity. It is particularly suitable for situations where lubrication maintenance is difficult.

2. Wear resistance: The sliding surface of the inner ring coated with hard chromium and the sintered bronze composite material of the outer ring both have high hardness and wear resistance, capable of withstanding large loads and frequent oscillations and rotations, extending the service life of the bearing.

3. Self-aligning ability: It can automatically adapt to the misalignment between the shaft and the bearing housing, allowing a certain angle of inclination and oscillation, effectively avoiding additional stress and wear caused by misalignment, and improving the working reliability and stability of the bearing.

4. Corrosion resistance: The inner and outer rings made of bearing steel are treated with appropriate surface treatment and protected by self-lubricating materials, giving them a certain degree of corrosion resistance, enabling normal operation in some harsh working environments.

5. Bearing capacity: It can withstand constant-direction loads, and at the same time, can also withstand small axial loads in any direction, meeting the usage requirements of various working conditions.

⚙️Product Application:

Automobile industry, engineering machinery, aerospace, agricultural machinery, hydraulic machinery, etc.

•
•
•





⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.
