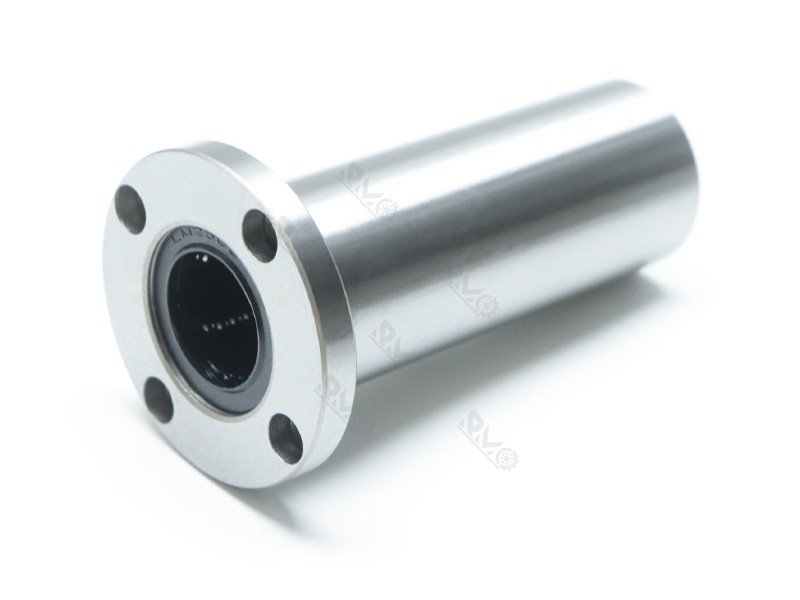

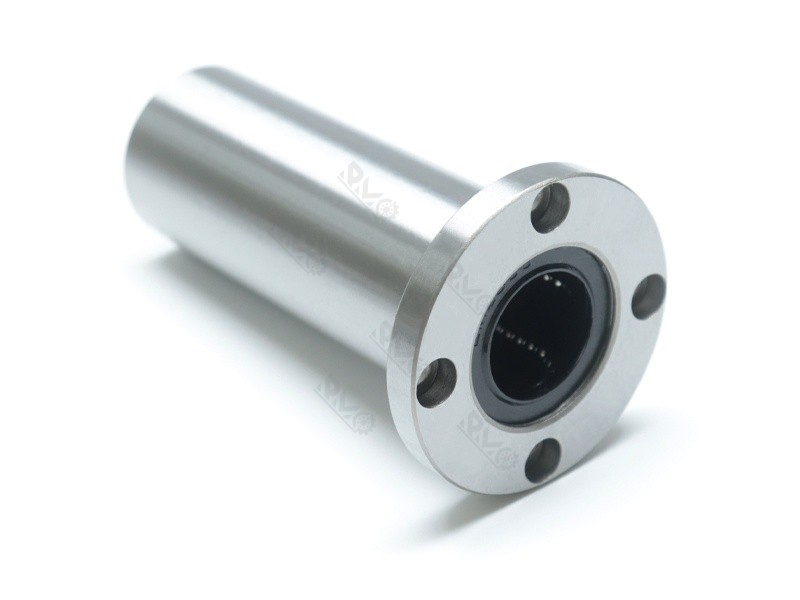

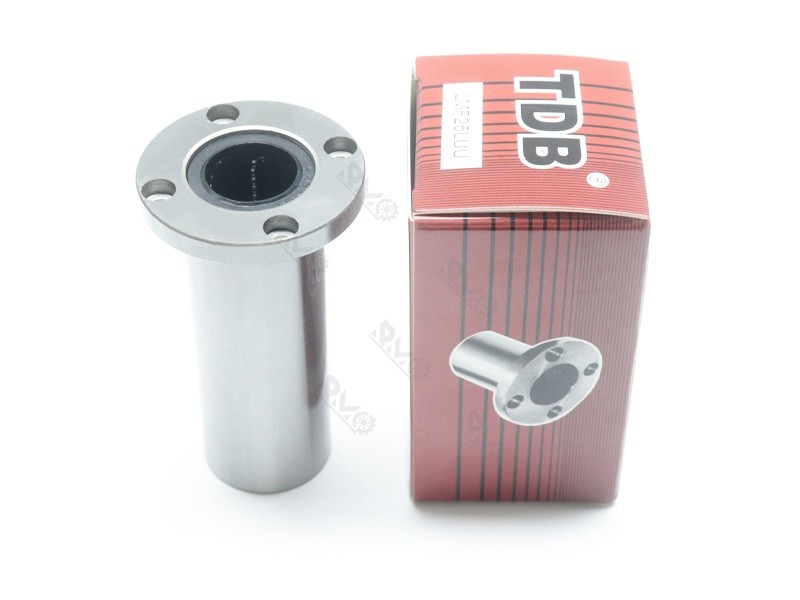

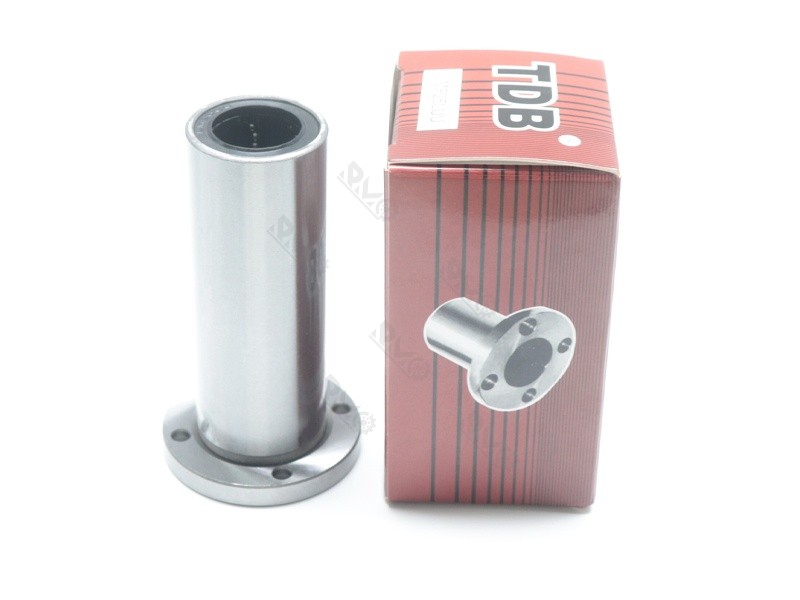

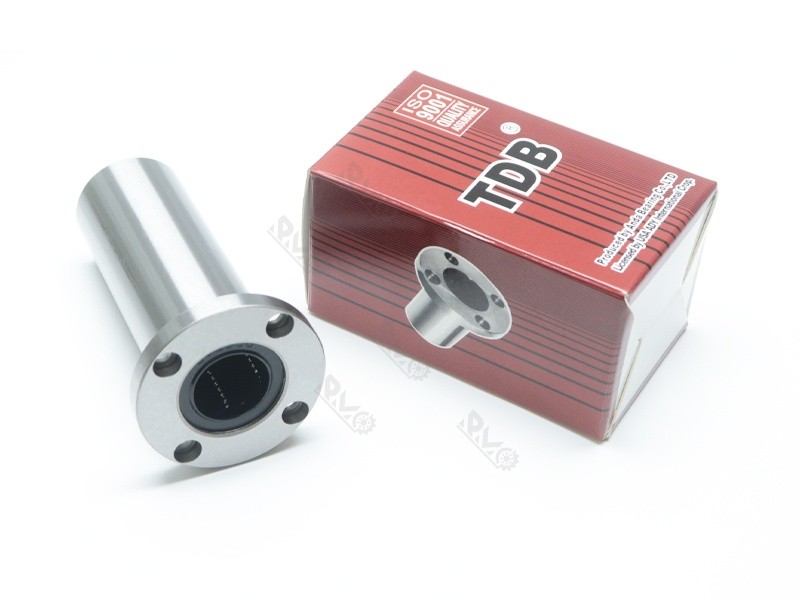

LMF25LUU Round Flange Linear Bearing for 25mm Shaft Smooth & Low-Friction Guide
Item No :
LMF25LUUSize (d*D*B) :
25x40x112x62mmMaterial :
Chrome steel GCr15Lead Time :
Normally 3-5 daysWeight :
0.515KGPayment Terms :
100% T/T or 30% T/T in advance ,70% before deliveryShipping Port :
Guangzhou, Ningbo, ShanghaiLMF25LUU Round Flange Linear Bearing for 25mm Shaft Smooth & Low-Friction Guide
⚙️Product description:
The LMF25LUU is a long-type round flange linear bearing designed for 25mm linear shafts. It provides smooth, precise, and low-friction linear motion, making it ideal for medium-to-heavy mechanical applications. With its extended length and double rows of ball circuits, the LMF25LUU offers improved load capacity, stability, and longer service life.
⚙️Technical Parameters:
|
Item No. |
LMF25LUU |
|
Branding |
Famous brand/RMO/Neutral/OEM |
|
Sealing |
UU |
|
Material |
Chrome steel GCr15 |
|
Lead Time |
3-5 days |
|
Precision |
Ground inner & outer raceways |
|
Ball Circuits |
6 rows |
|
Basic Load Rating |
Dynamic Cr 1560 N, Static Cor 3140 N |
|
Cage material |
Nylon or steel |
|
Shipping Port |
Guangzhou, Ningbo, Shanghai |
|
Payment |
100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
⚙️Key Features:
Long-type LUU design for enhanced load-bearing performance
Round flange for easy mounting on plates, frames, and linear modules
Low-friction & smooth linear motion
Built-in ball circuits for high precision and reduced vibration
Corrosion‑resistant steel construction
Suitable for continuous linear motion applications

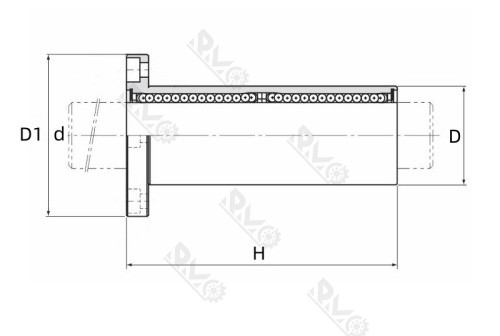

| Model No. | d | D | H | m |
| LMF6L | 6 mm | 12 mm | 35 mm | 32 g |
| LMF8L | 8 mm | 15 mm | 45 mm | 53 g |
| LMF10L | 10 mm | 19 mm | 55 mm | 105 g |
| SDMF10LY | 10 mm | 19 mm | 55 mm | 81 g |
| LMF12L | 12 mm | 21 mm | 57 mm | 100 g |
| LMF13L | 13 mm | 23 mm | 61 mm | 130 g |
| LMF16L | 16 mm | 28 mm | 70 mm | 187 g |
| SDMF16LY | 16 mm | 28 mm | 70 mm | 160 g |
| LMF20L | 20 mm | 32 mm | 80 mm | 260 g |
| LMF25L | 25 mm | 40 mm | 112 mm | 515 g |
| SDMF25LY | 25 mm | 40 mm | 112 mm | 410 g |
| LMF30L | 30 mm | 45 mm | 123 mm | 655 g |
| LMF35L | 35 mm | 52 mm | 135 mm | 970 g |
| LMF40L | 40 mm | 60 mm | 154 mm | 1560 g |
| LMF50L | 50 mm | 80 mm | 192 mm | 3500 g |
| LMF60L | 60 mm | 90 mm | 211 mm | 4500 g |
• CNC machinery (routers, engravers, plasma machines)
• 3D printers & motion platforms
• Automation and industrial equipment
• Linear stages, sliding modules, laboratory instruments
• Packaging and food processing machinery
• Robotics and pick‑and‑place systems
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
