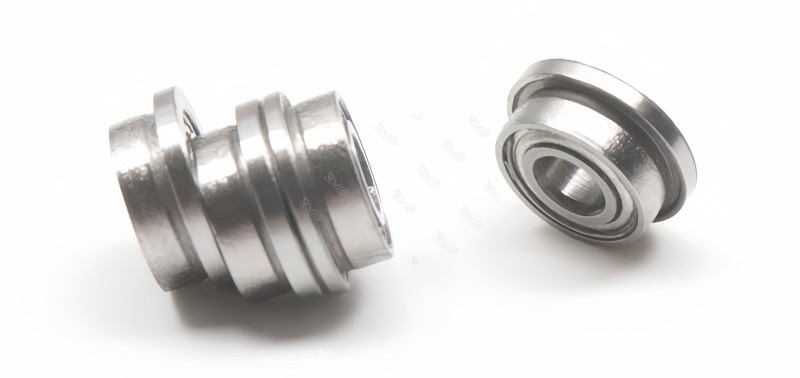

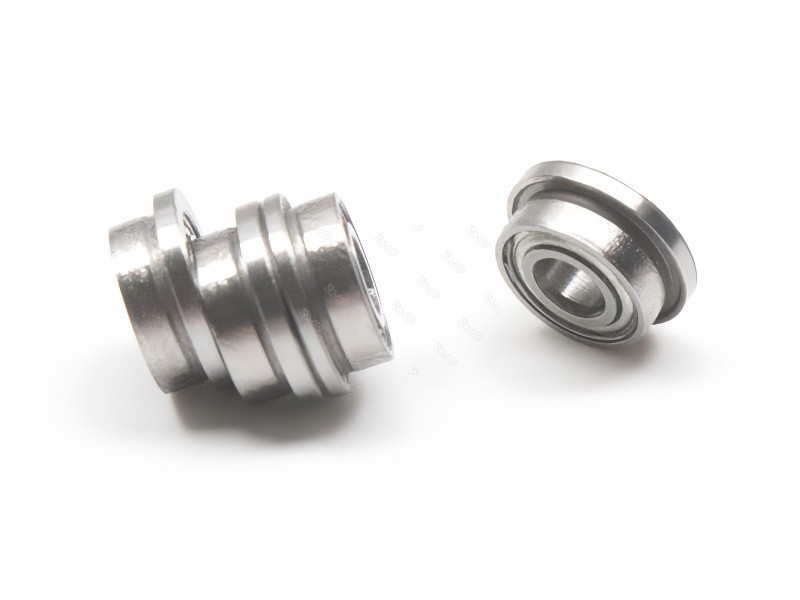

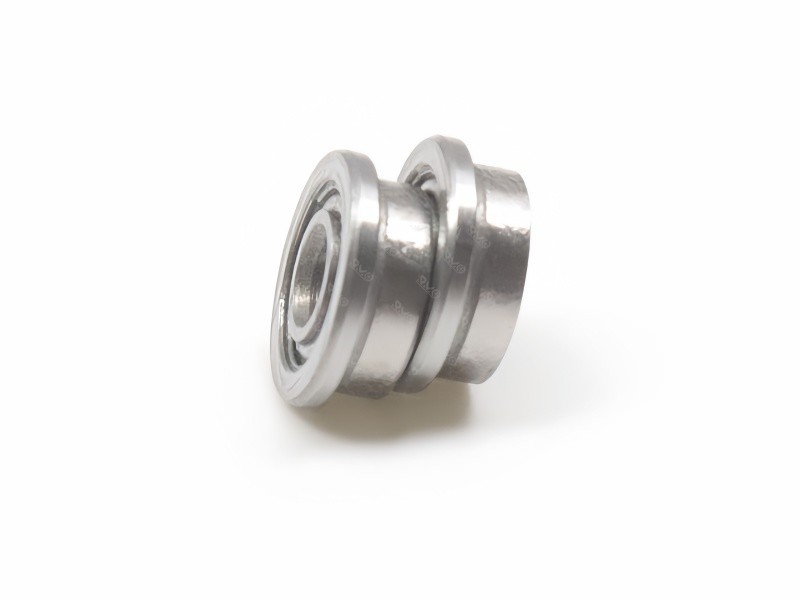

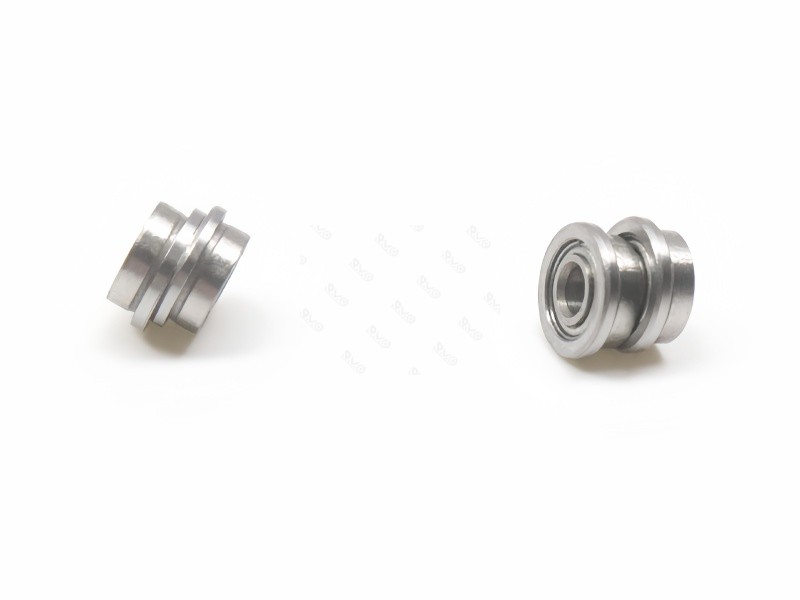

Low-noise F682XZZ Miniature Flanged Deep Groove Ball Bearing
Item No :
F682XZZSize (d*D*B) :
2.5x6x2.6x7.1mmLead Time :
3-5 daysWeight :
0.0003KGShipping Port :
Guangzhou, Ningbo, ShanghaiMOQ :
100 pcs
| Item No. | F682XZZ |
| Branding | famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | carbon steel, hybrid ceramic, full ceramic,GCR15,stainless steel (420 440C 304 316) |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C2 C0 C3 C4 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Cage material | Steel, nylon, copper |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Deep groove ball structure: It belongs to deep groove ball bearings. The groove design enables the steel balls to roll freely within the groove, capable of withstanding radial loads and certain axial loads. It has high rotational accuracy and low friction characteristics.
Dust cover design: The "ZZ" in the model indicates that both sides of the bearing are equipped with steel dust covers, which can prevent dust, impurities, etc. from entering the bearing interior, protecting the rolling elements and raceways, and extending the bearing's service life.
Material and lubrication: The inner and outer rings and rolling elements are made of bearing steel, which has high hardness and wear resistance. Bearings are generally pre-lubricated at the factory, filled with an appropriate amount of lubricating grease, and can be directly installed and used.

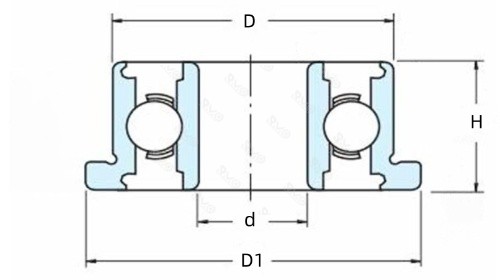

| Bearings No. | ID(d*D*H)mm | Weight (KG) | Bearings No. | ID(d*D*H)mm | Weight (KG) |
| F682ZZ | 2*5*2.3 | 0.001 | MF115ZZ | 5*11*4 | 0.001 |
| F683ZZ | 3*7*3 | 0.001 | MF106ZZ | 6*10*3 | 0.001 |
| F684ZZ | 4*8*3 | 0.001 | MF126ZZ | 6*12*4 | 0.002 |
| F685ZZ | 5*11*5 | 0.002 | MF117ZZ | 7*11*3 | 0.002 |
| F686ZZ | 6*13*5 | 0.003 | MF137ZZ | 7*13*4 | 0.003 |
| F687ZZ | 7*14*5 | 0.0035 | MF128ZZ | 8*12*3.5 | 0.003 |
| F688ZZ | 8*16*5 | 0.0045 | MF148ZZ | 8*14*4 | 0.009 |
| F689ZZ | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.009 |
| F692ZZ | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.001 |
| F693ZZ | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694ZZ | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.004 |
| F695ZZ | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.001 |
| F696ZZ | 6*15*5 | 0.004 | F608ZZ | 8*22*5 | 0.024 |
| F697ZZ | 7*17*5 | 0.006 | F606ZZ | 6*17*6 | 0.007 |
| F698ZZ | 8*19*6 | 0.008 | F625ZZ | 5*16*5 | 0.005 |
| F699ZZ | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52ZZ | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72ZZ | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 0.025 |
| MF82ZZ | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63ZZ | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104ZZ | 4*10*4 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85ZZ | 5*8*2.5 | 0.001 | F6801 | 12*21*5 | 0.006 |
| MF95ZZ | 5*9*3 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105ZZ | 5*10*4 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |

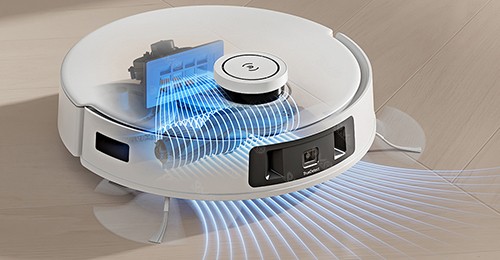

bearing for sweeping robot

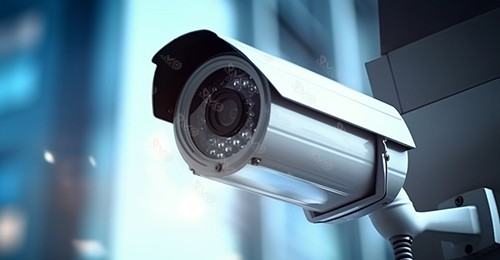

bearing for monitoring PTZ

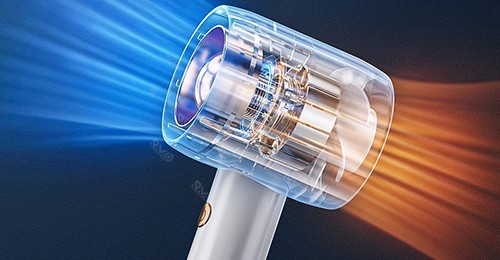

bearing for hair dryer
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
