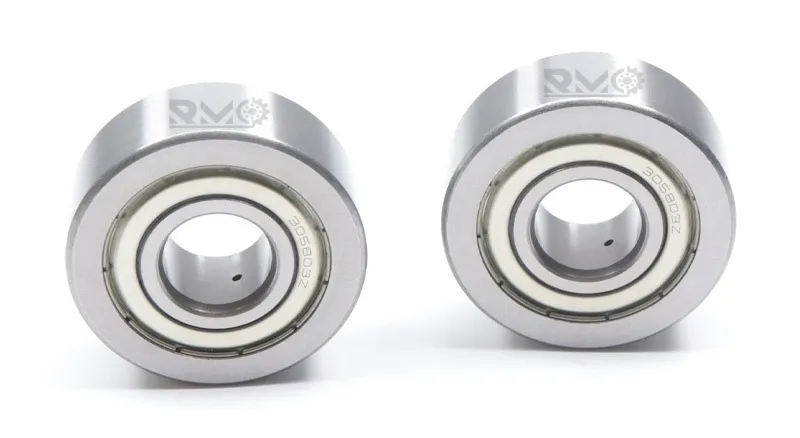

17mm Bore 305803C-2Z Track Roller Bearings for Printing Press Guide Tracks
| Item No : | 305803C-2Z (Track Roller / Cam Follower) |

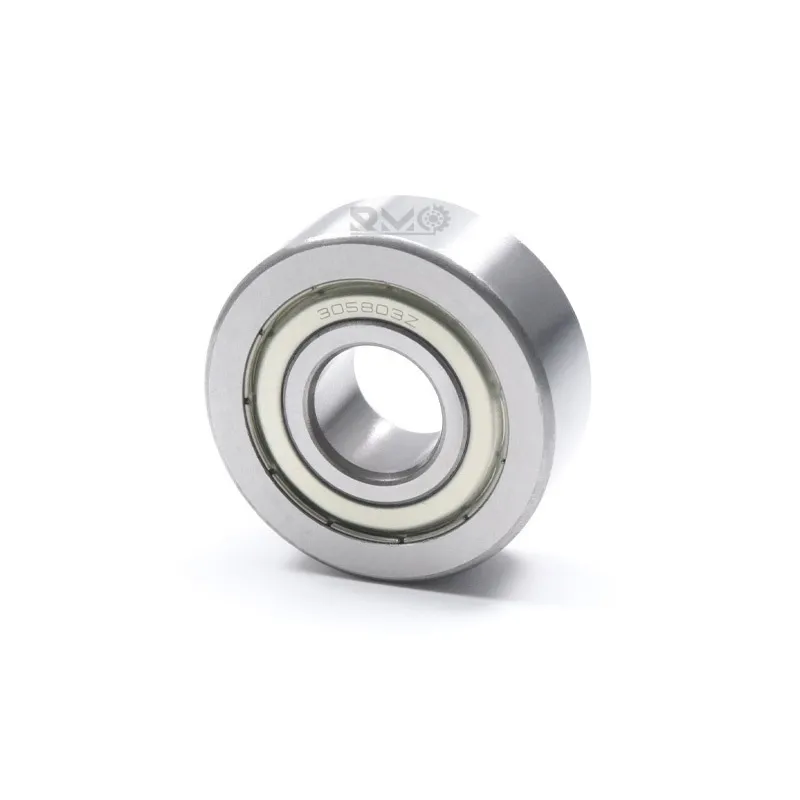

| Size (d*D*B) : | 17x47x17.5mm |
| Material : | Chrome Steel Gcr15 |
| Lead Time : | 3-5 days |
| Weight : | 0.16KG |
| MOQ : | 50 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:

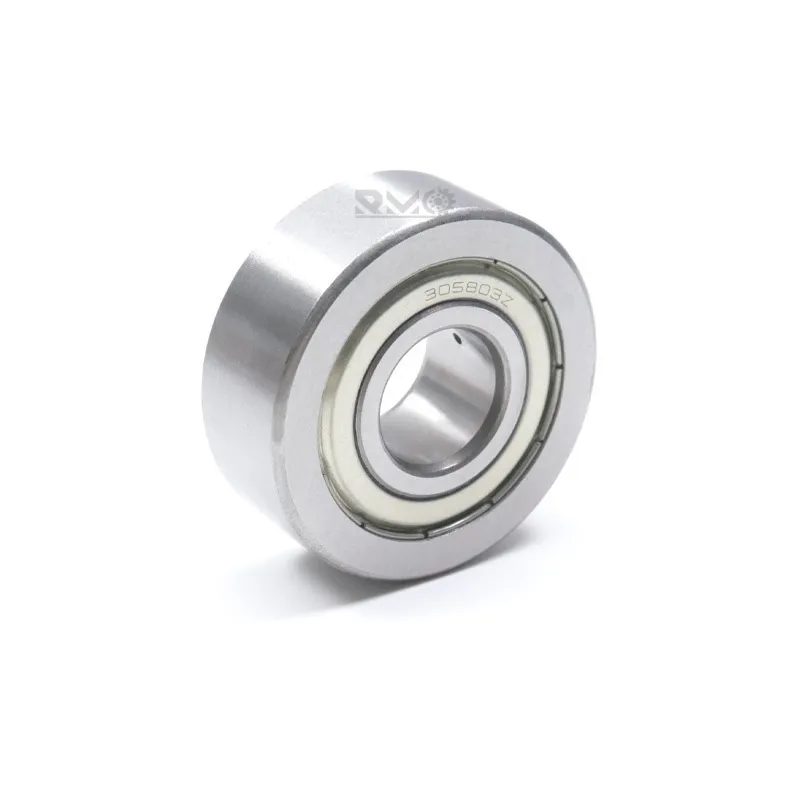

The 305803C-2Z (17x47x17.5mm) is a heavy-duty, double-row angular contact track roller bearing (cam follower) engineered specifically to run directly on flat, curved, or profiled guide tracks. Featuring a 17mm inner bore, 47mm outer diameter, and 17.5mm total width, it is built with an extra-thick outer ring designed to withstand high radial impact loads and heavy contact stresses without structural ring deformation. Equipped with internal double-row angular contact ball geometry and dual steel dust shields (2Z), this unit delivers smooth guidance, high tilting moment resistance, and exceptional running accuracy. We supply these high-performance track rollers under our proprietary RMO brand, supported by global multi-brand OEM direct sourcing for automated machinery, material handling systems, and printing equipment manufacturers.
⚙️Product Features:

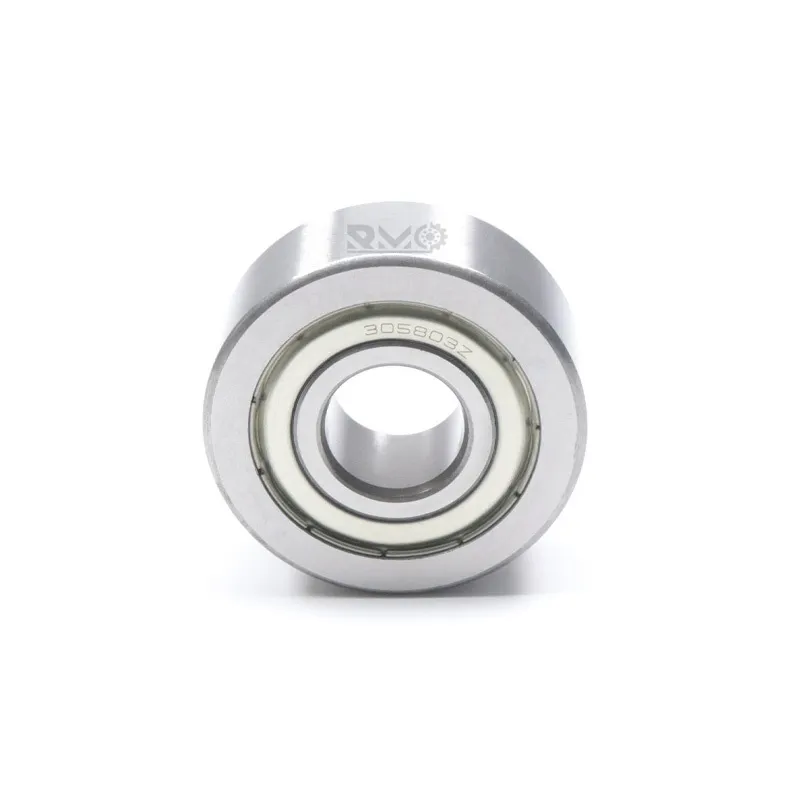

- Heavy-Duty Thickened Outer Ring: Specially reinforced outer ring resists high repetitive shock loads, track contact stresses, and edge crushing during continuous rail rolling.
- Double-Row Angular Contact Internal Geometry: High-rigidity internal layout accepts substantial combined radial forces, bi-directional thrust loads, and severe tilting moments.
- Optimized Running Surface Profile: Precisely ground outer cylindrical (or crowned) face ensures uniform pressure distribution along guide rails, preventing premature track wear.
- Dual Steel Shields (2Z) & Pre-Greased: Double metal dust shields safeguard internal raceways against metal debris and industrial grit while retaining factory synthetic grease.
⚙️Product Application:
Engineered for track guidance, high impact resistance, and heavy radial line contact, the 305803C-2Z track roller bearing is widely specified in:
- Conveyor & material handling: automated overhead conveyors, sorting line guide tracks, and pallet transfer cams.
- Printing & packaging machinery: offset press gripper cams, die-cutting guide rollers, and cartoning machine drive tracks.
- Industrial automation: linear gantry guide systems, rotary indexing cams, and automated assembly transfer stages.
- Textile & woodworking equipment: heavy loom cam drives, sliding panel saw guides, and veneer lathe tracking rollers.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model / Industry No. | 305803C-2Z / 305803 C 2Z (Track Roller / Cam Follower) |
| Bearing Structure | Double Row Angular Contact Track Roller |
| Metric Dimensions | 17x47x17.5mm (Inner d x Outer D x Total Width/Height H) |
| Outer Ring Feature | Thick-Walled Reinforced Outer Ring |
| Shielding Type | Dual Steel Dust Shields 2Z |
| Material | Chrome Bearing Steel GCr15 (AISI 52100 / 100Cr6 / SUJ2) |
| Load Rating | Superior Radial Shock & Tilting Load Support |
| Precision Rating | ABEC-1 / ABEC-6 (P0 / P6) |
| Target Application | Conveyors, Printing Cams, Guide Tracks, Automation |
| Brand | RMO (Own Brand) / Neutral / OEM Custom / Other Global Brands |
| Package | Individual plastic bag, plastic tube or original RMO brand box |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Shipping | Express (DHL/FedEx/UPS), Air Freight, Sea Freight |
| Payment | 100% TT, or 30% TT In Advance, 70% TT After Finished Production |

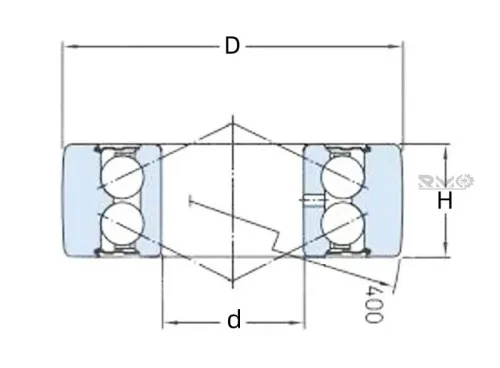

| Model No. | d | D | H | m |
| 305800C-2Z | 10 mm | 32 mm | 14 mm | 0.06 KG |
| 305801C-2Z | 12 mm | 35 mm | 15.9 mm | 0.08 KG |
| 305802C-2Z | 15 mm | 40 mm | 15.9 mm | 0.1 KG |
| 305803C-2Z | 17 mm | 47 mm | 17.5 mm | 0.16 KG |
| 305804C-2Z | 20 mm | 52 mm | 20.6 mm | 0.22 KG |
| 305805C-2Z | 25 mm | 62 mm | 20.6 mm | 0.32 KG |
| 305806C-2Z | 30 mm | 72 mm | 23.8 mm | 0.49 KG |
| 305807C-2Z | 35 mm | 80 mm | 27 mm | 0.65 KG |
