30x52x16mm 51206 Single Direction Thrust Ball Bearing Supplier

51206 single direction thrust ball bearing with 30mm inner diameter separable washers

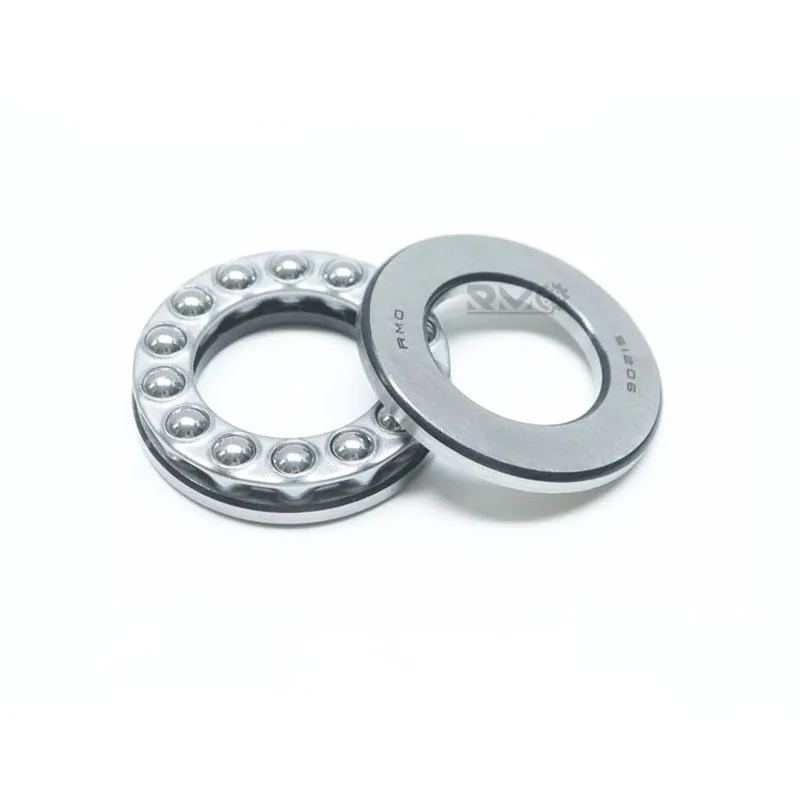

30x52x16mm 51206 single direction axial ball bearing technical dimension drawing

Close up of 51206 axial ball bearing showing pressed steel cage and high precision chrome balls

51206 single direction thrust bearing application inside an industrial machine tool spindle table

Wholesale supplier factory stock of 51206 thrust ball bearings ready for global B2B delivery

❮

❯

Share:

Item No :	51206
Size (dDB) :	30x52x16mm
Material :	Chrome steel Gcr15
Lead Time :	3-5 days
Weight :	0.137KG
MOQ :	50 pcs

⚙️Product Description:

Looking for a high-rigidity, low-friction solution to manage heavy axial loads in your rotating equipment? Our 51206 Single Direction Thrust Ball Bearing (Size: 30x40x16mm) is precision-engineered to handle intense axial forces in one direction with zero radial load tolerance. Comprising a separable design with a shaft washer, a housing washer, and a premium ball-and-cage assembly, it ensures exceptionally easy mounting, dismounting, and maintenance alignment. As an experienced B2B bearing trader, we offer this high-demand industrial part under our own reliable “RMO” brand to dramatically maximize your profit margins, while concurrently leveraging our global supply network to source alternative premium tier-1 international brands based on your custom procurement requests.

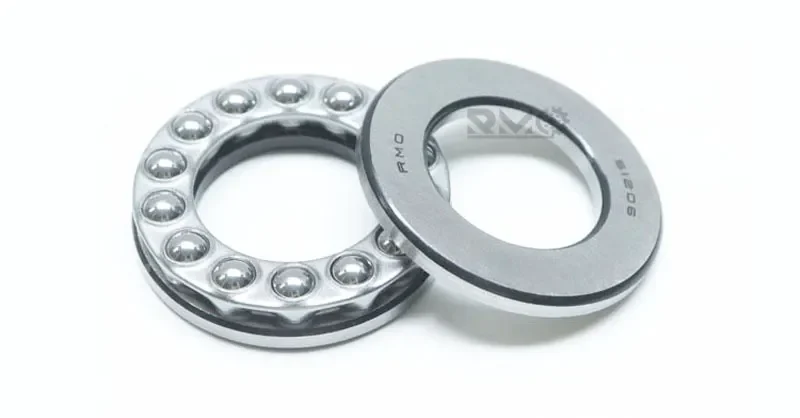

51206 bearing

⚙️Product Features:

100% Separable Interlocking Design: The shaft washer, housing washer, and ball assembly can be mounted independently, simplifying system installation and routine maintenance checks.
Superior Axial Load Rigidity: Specifically optimized raceway grooves guide the precision chrome steel balls perfectly, minimizing friction and energy loss under heavy axial thrust.
Exact Metric Standards: Precision-manufactured to 30mm (Bore) x 52mm (OD) x 16mm (Height) to guarantee a 100% perfect drop-in replacement for standard 51206 series bearings.
Ultra-Pure GCr15 Bearing Steel: Rings and rolling elements are forged from premium vacuum-degasified chrome steel, induction-hardened to achieve high fatigue limits and wear resistance.
Dual Brand Sourcing Flexibility: Increase your business competitiveness with our factory-direct RMO brand pricing, or request our trade network to procure authentic global premium brands.

⚙️Product Application:

Engineered for smooth rotation and high axial stability, the 51206 thrust ball bearing is extensively applied in:

Machine tool spindles, low-speed heavy-duty rotary tables, and index heads.
Industrial valve actuators, fluid control gates, and chemical mixing vessel shafts.
Heavy-duty screw jacks, mechanical lifts, and vertical hoist crane hooks.
Automotive steering gear systems and vehicle kingpin kingpins.
Marine propeller shaft thrust blocks, water pumps, and centrifuge gearboxes.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.

⚙️Obtain Certificate:

About Rimao

Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.

We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!

⚙️Technical Parameters:

Item No.	51206
Bearing Type	Single Direction Thrust Ball Bearing
Size	30x52x16mm
Shaft & Housing Washers Material	Chrome steel GCr15
Steel Balls Material	Premium GCr15 Chrome Steel Balls
Cage Material	Pressed Steel
Limiting Speed	Approx. 3200 RPM (Oil) / 2200 RPM (Grease)
Working Temperature Range	-30°C to +120°
Brand	RMO/Neutral/OEM/Other Brands
Service	Support Sample Testing
Shipping	Express (DHL/FedEx/UPS), Air Freight, Sea Freight
Payment	100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production

51206 thrust ball bearing

Model No.	d	D	H	m	Model No.	d	D	H	m
51200	10 mm	26 mm	11 mm	0.03 KG	51232-MP	160 mm	225 mm	51 mm	6.53 KG
51201	12 mm	28 mm	11 mm	0.03 KG	51234-MP	170 mm	240 mm	55 mm	8.12 KG
51202	15 mm	32 mm	12 mm	0.04 KG	51236-MP	180 mm	250 mm	56 mm	8.56 KG
51203	17 mm	35 mm	12 mm	0.05 KG	51238-MP	190 mm	270 mm	62 mm	11.6 KG
51204	20 mm	40 mm	14 mm	0.08 KG	51240-MP	200 mm	280 mm	62 mm	12 KG
51205	25 mm	47 mm	15 mm	0.11 KG	51244-MP	220 mm	300 mm	63 mm	13.1 KG
51206	30 mm	52 mm	16 mm	0.14 KG	51248-MP	240 mm	340 mm	78 mm	22.9 KG
51207	35 mm	62 mm	18 mm	0.2 KG	51252-MP	260 mm	360 mm	79 mm	24.8 KG
51208	40 mm	68 mm	19 mm	0.26 KG	51256-MP	280 mm	380 mm	80 mm	23.7 KG
51209	45 mm	73 mm	20 mm	0.28 KG	51260-MP	300 mm	420 mm	95 mm	41.8 KG
51210	50 mm	78 mm	22 mm	0.35 KG	51264-MP	320 mm	440 mm	95 mm	44.6 KG
51211	55 mm	90 mm	25 mm	0.38 KG	51268-MP	340 mm	460 mm	96 mm	47.6 KG
51212	60 mm	95 mm	26 mm	0.65 KG	51272-MP	360 mm	500 mm	110 mm	70.4 KG
51213	65 mm	100 mm	27 mm	0.68 KG	51276	380 mm	520 mm	112 mm	74.5 KG
51214	70 mm	105 mm	27 mm	0.73KG	51280	400 mm	540 mm	112 mm	77.7 KG
51215	75 mm	110 mm	27 mm	0.82 KG	51284	420 mm	580 mm	130 mm	109 KG
51216	80 mm	115 mm	28 mm	0.91 KG	51288	440 mm	600 mm	130 mm	115 KG
51217	85 mm	125 mm	31 mm	1.21 KG	51292	460 mm	620 mm	130 mm	119 KG
51218	90 mm	135 mm	35 mm	1.66 KG	51296	480 mm	650 mm	135 mm	137 KG
51220	100 mm	150 mm	38 mm	2.21 KG	512/500F	500 mm	670 mm	135 mm	135 KG
51222	110 mm	160 mm	38 mm	2.28 KG	512/530	530 mm	710 mm	140 mm	165 KG
51224	120 mm	170 mm	39 mm	2.66 KG	512/560	560 mm	750 mm	150 mm	200 KG
51226	130 mm	190 mm	45 mm	3.96 KG	512/600	600 mm	800 mm	160 mm	241 KG
51228	140 mm	200 mm	46 mm	4.3 KG	512/630X	630 mm	850 mm	175 mm	299 KG
51230-MP	150 mm	215 mm	50 mm	6.08 KG
