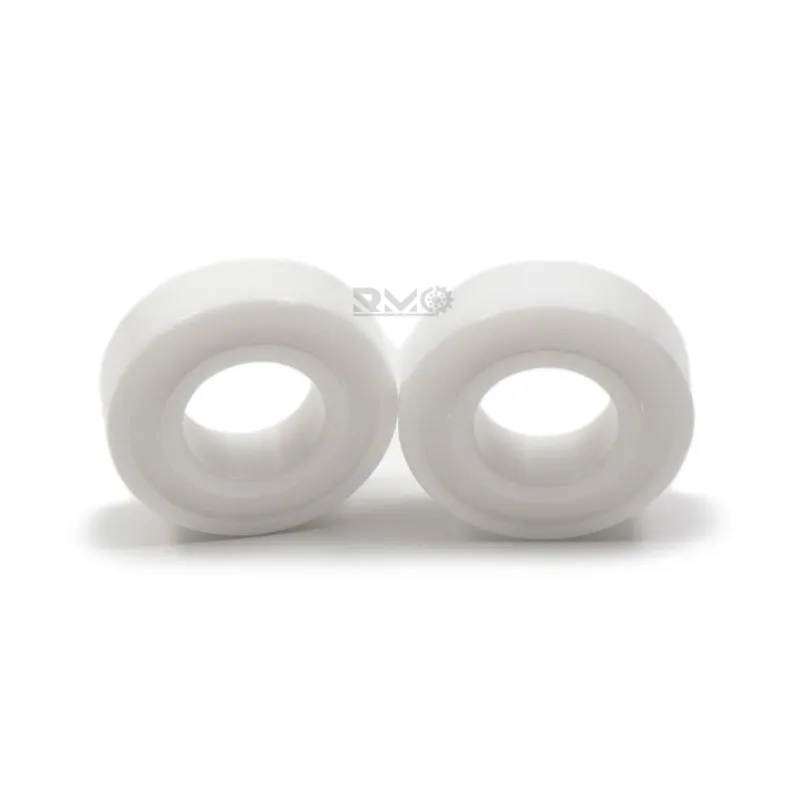

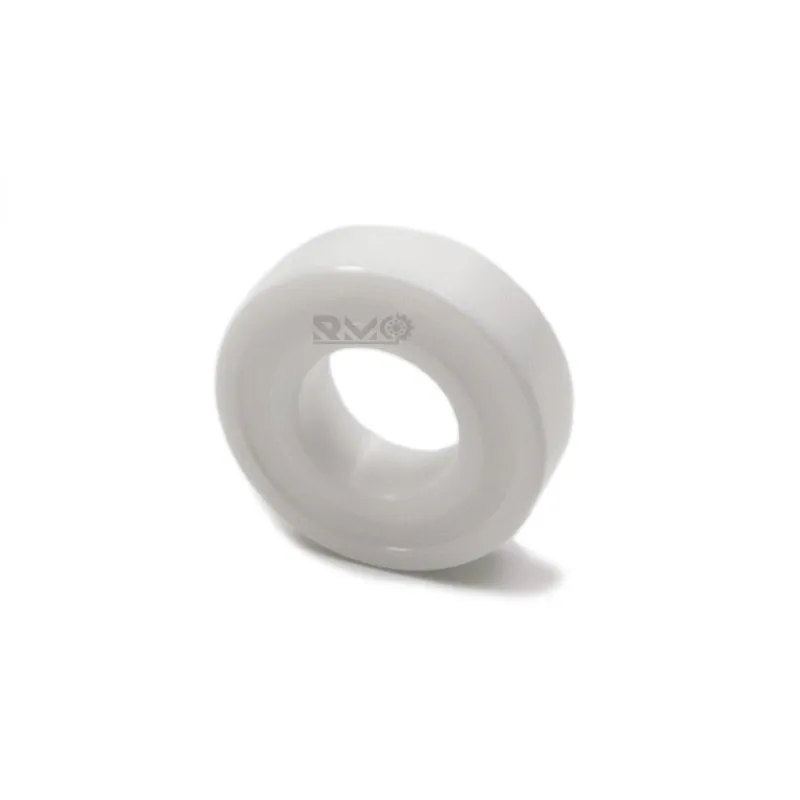

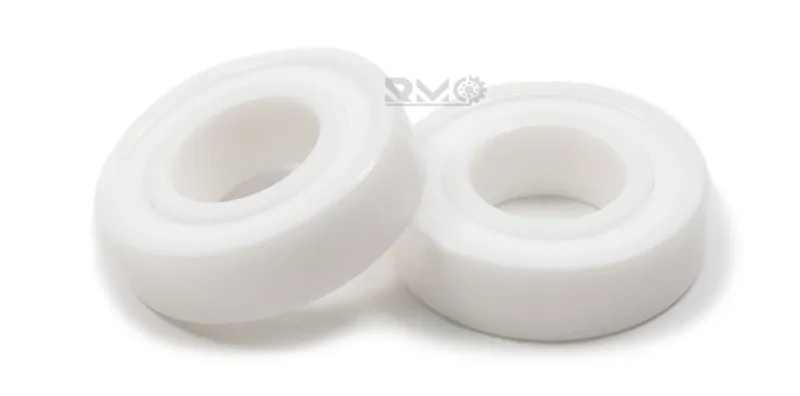

Non-Magnetic 17mm Bore 6003CE2RS Full Ceramic Bearings for MRI Equipment
| Item No : | 6003CE2RS (Full Ceramic Bearing) |

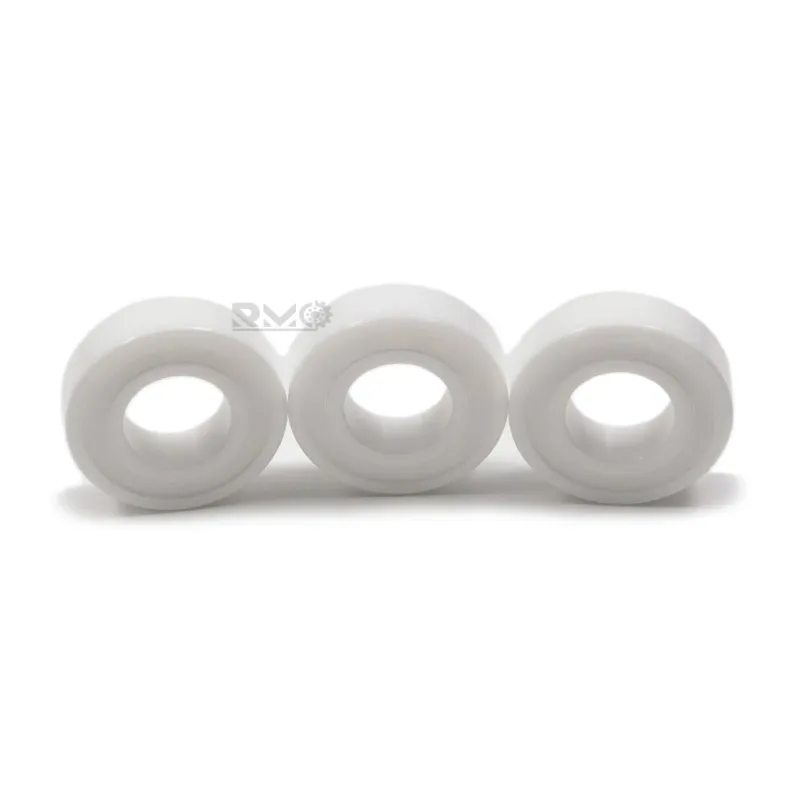

| Size (d*D*B) : | 17x35x10mm |
| Material : | Zro2 Full Ceramic + PTFE Cage |
| Lead Time : | 3-5 days |
| Weight: | 0.033G |
| MOQ : | 20 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:
The 6003CE2RS (17x35x10mm) is a premium full zirconia (ZrO2) ceramic deep groove ball bearing engineered for non-magnetic, highly corrosive, and high-temperature operating environments. Featuring a 17mm inner bore, 35mm outer diameter, and 10mm width, both its inner/outer rings and rolling elements are constructed from high-purity zirconia ceramic, fitted with dual PTFE/PEEK contact seals and a PTFE cage. This non-conductive, self-lubricating hybrid structure completely eliminates tribological oxidation and acid/alkali corrosion where standard steel bearings fail. We supply these non-magnetic full ceramic bearings under our proprietary RMO brand while facilitating multi-brand OEM sourcing for global chemical processing, medical imaging, and semiconductor equipment builders.
⚙️Product Features:

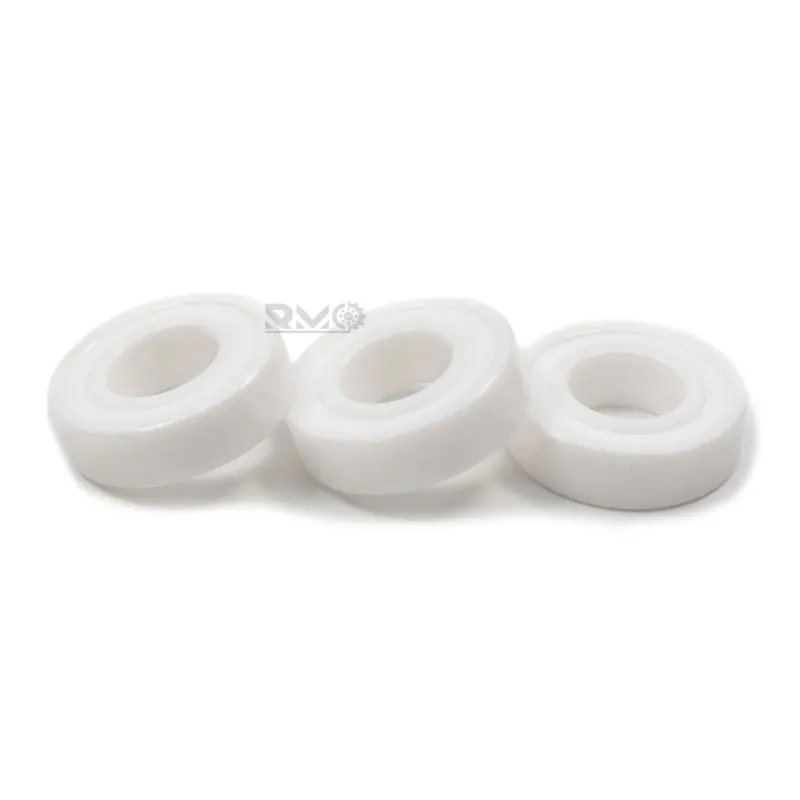

- Full Zirconia (ZrO2) Ceramic Construction: Exceptional resistance to strong acids, alkalis, saltwater, and harsh industrial solvents without chemical degradation.

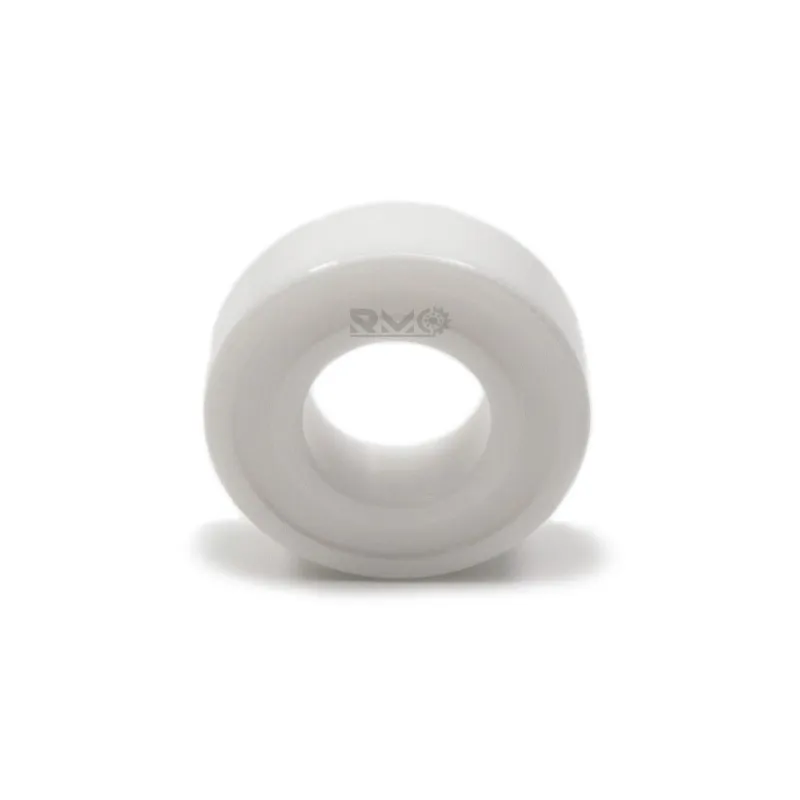

- 100% Non-Magnetic & Electrically Insulating: Zero magnetic interference and absolute electrical resistance, making it essential for sensitive MRI fields and high-voltage gear.
- Self-Lubricating PTFE Seals & Cage: Dual PTFE/PEEK seals keep fine particulates out while providing clean, oil-free operation in liquid immersion or dry vacuums.
- Low Density & High Thermal Resistance: Ceramic balls weigh 40% less than standard steel balls, reducing centrifugal force while enduring extreme temperature swings.
⚙️Product Application:
Engineered for zero magnetic signature, acid resistance, and lubricant-free operations, the 6003CE2RS bearing is widely specified in:
- Chemical & fluid handling: acid/alkali transfer pumps, submerged chemical agitators, and electroplating line rollers.
- Medical & scientific instruments: MRI scanner patient tables, high-field magnetic resonance gear, and bio-pharmaceutical centrifuges.
- Semiconductor & vacuum hardware: plasma etching equipment, wafer wet-cleaning benches, and vacuum chamber transports.
- Marine & electro-plating: electro-galvanizing lines, saltwater immersion gear, and battery manufacturing rollers.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model / Industry No. | 6003CE2RS / 6003CE-2RS |
| Bearing Type | |
| Metric Dimensions | 17x35x10mm (Inner d x Outer D x Total Width/Height H) |
| Ring & Ball Material | |
| Cage Material | PTFE (Polytetrafluoroethylene) / PEEK |
| Seal Material | Dual Contact PTFE / PEEK Seals |
| Operating Temperature | -40°C to +200°C |
| Magnetic Property | 100% Non-Magnetic / Dielectric |
| Corrosion & Electrical Resistanc | Impervious to Acids, Alkalis, Saltwater / Insulating |
| Lubrication | Dry-Running / Self-Lubricating |
| Target Application | Chemical Pumps, MRI Machines, Semiconductor |
| Brand | RMO (Own Brand) / Neutral / OEM Custom / Other Global Brands |
| Package | Individual plastic bag, plastic tube or original RMO brand box |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Shipping | Express (DHL/FedEx/UPS), Air Freight, Sea Freight |
| Payment | 100% T/T, or 30% T/T In Advance, 70% T/T After Finished Production |
