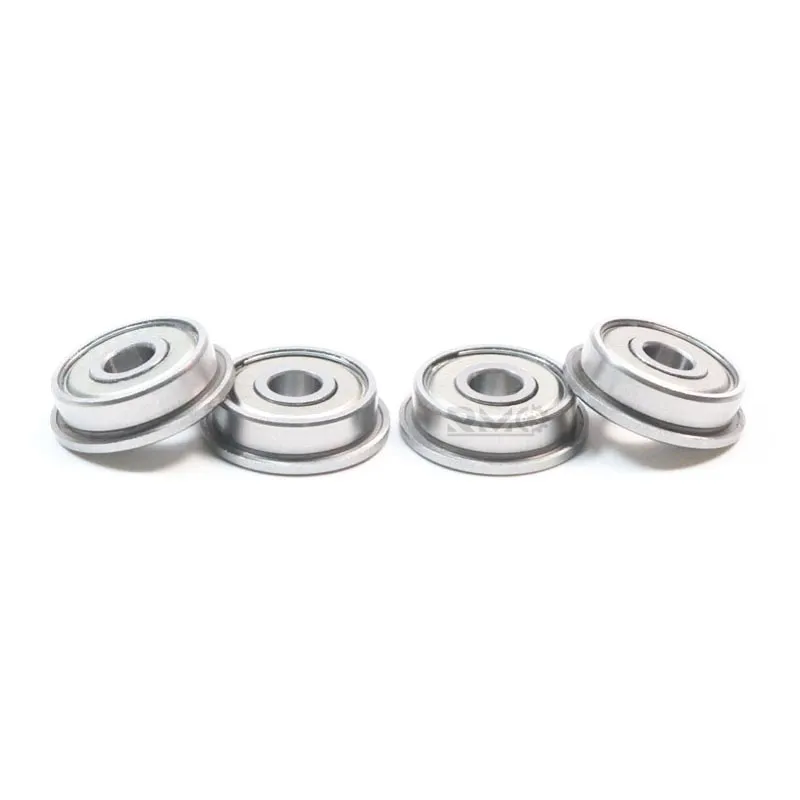

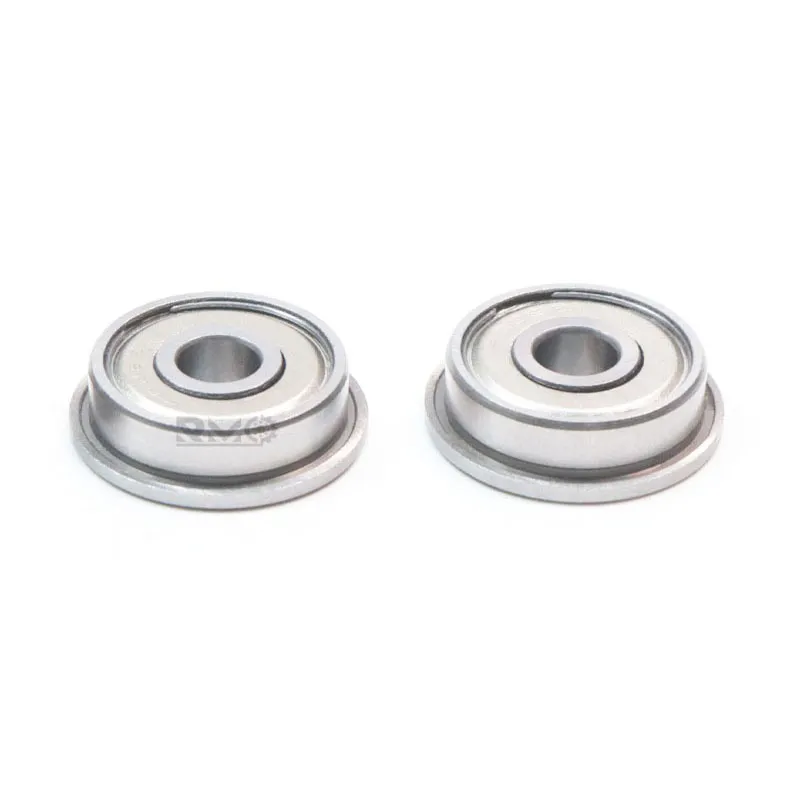

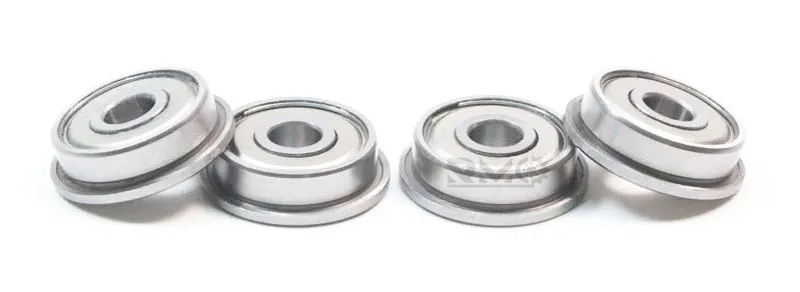

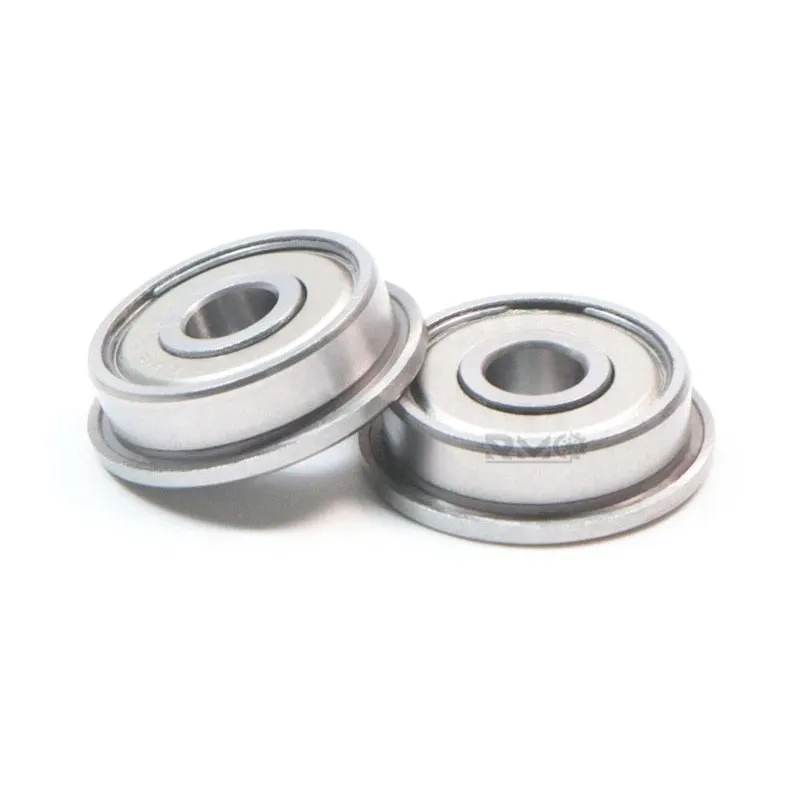

Wholesale 6x19x6mm F626ZZ Flanged Bearings with 22mm Outer Flange
| Item No : | F626ZZ / F626-2Z (Flanged Miniature) |
| Size (d*D*B) : | 6x19x6x22mm |
| Material : | Chrome Steel GCr15 |
| Lead Time : | 3-5 days |
| Weight : | 0.009KG |
| MOQ : | 100 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:
Designing compact 6mm shaft mechanisms where housing depth machining is too costly, or axial thrust forces threaten to push bearings out of alignment? The F626ZZ Miniature Flanged Ball Bearing (6x19x6mm with a 22mm Flange) provides an elegant mechanical stopping solution. Featuring a 6mm bore, 19mm outer diameter, and a solid 22mm integrated outer ring flange, this bearing mounts flush against sheet metal frames or mounting plates, completely eliminating the need for internal housing shoulders or snap rings. Equipped with dual metal shields (ZZ), it maintains high-speed rotational efficiency while shielding against debris. It is the premier choice for 3D printer belt tensioners, NEMA 17/23 stepping motor mounts, and RC model gearboxes. As an agile B2B bearing trading specialist, we elevate your sourcing flexibility: maximize unit profit margins with our field-proven RMO proprietary brand, or contract our global network to source OEM-certified premium international brands (such as NMB or NSK equivalents) for precision automated production lines.
⚙️Product Features:

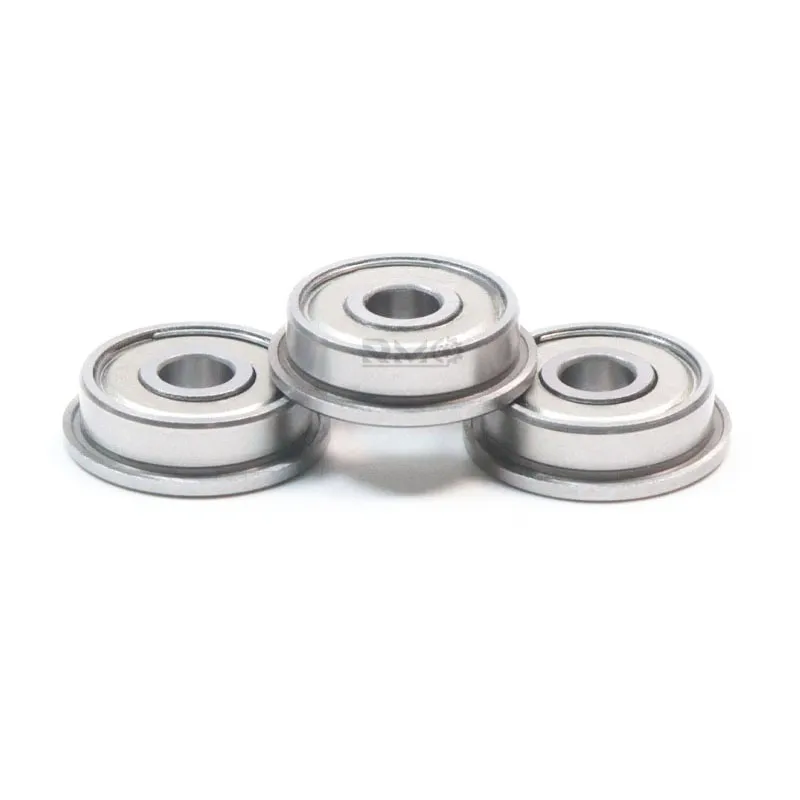

- 22mm Integrated Outer Flange: Built-in flange ridge provides positive mechanical axial stopping, preventing bearing creep or displacement along the housing wall under light axial loads.
- Simplified Housing Machining: Allows through-hole drilling on mounting plates rather than complex stepped bore machining, significantly cutting overall frame manufacturing and labor costs.
- Dual Metal Shields (ZZ): Precision steel shields protect the internal steel balls and grease lubricant from particulate dust drag-free, supporting high-rpm operation up to 38,000 RPM.
- Refined GCr15 Chrome Steel: Machined from high-purity 52100 chrome steel with micro-honed raceways, delivering silent operation and dynamic stability on fast-reversing shafts.
- Dual-Channel B2B Sourcing Advantage: We adapt to your project scale. Order bulk wholesale cartons of cost-effective RMO stock for aftermarket distribution, or utilize our trade desk to acquire fully traceable international micro-bearing brands.
⚙️Product Application:
Specially suited for applications requiring simple panel mounting and precise 6mm shaft positioning, the F626ZZ series is essential for:
- 3D printers (Voron, Creality belt idlers, lead screw top mounts, and extruder drives).
- Stepping motor mounts (NEMA 17 and NEMA 23 faceplate alignment).
- Robotics, RC models, and unmanned aerial vehicle (UAV) servo gearboxes.
- Office automation equipment (printers, scanners, and paper feeding mechanisms).
- Global 3D printing spare parts distributors, robotics hardware builders, and B2B hardware importers.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model No. | F626ZZ / F626-2Z (Flanged Miniature) |
| Bearing Type | Flanged Deep Groove Ball Bearing |
| Size | 6x19x6x22mm |
| Flange Thickness | ~ 1.5 mm |
| Shielding Type | Dual Steel Shields ZZ |
| Material | Chrome Steel Gcr15 |
| Dynamic Load (Cr) | ~ 2,260 N |
| Static Load (Cor) | ~ 840 N |
| Max RPM | ~ 38,000 RPM (Grease) 1/min |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Brand | RMO/Neutral/OEM/Other Brands |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Shipping Method | Express (DHL/FedEx/UPS), Air Freight, Sea Freight |
| Payment | 100% T/T, or 30% T/T In Advance, 70% T/T After Finished Production |
