Corrosion-Resistant Stainless Steel F698ZZ Flanged Bearings for 3D Printer Idlers

Share:
Item No :
F698ZZ / F698-2RS  / SF698ZZ
Size (d*D*B) :8x19x6x22mm
Material :Chrome Steel GCr15
Lead Time :3-5 days
Weight :0.008KG
MOQ :100 pcs
Service :Support Sample Testing

⚙️Product Description:

The F698ZZ (8x19x6x22mm) is a versatile flanged miniature bearing featuring an 8mm bore, 19mm outer diameter, 6mm width, and a distinctive 22mm outer flange. Designed to provide precise axial location on flat mounting surfaces, this bearing prevents sliding displacement without requiring external retaining rings. To match diverse working environments, we offer dual material choices: high-carbon GCr15 chrome steel for high load capacity and anti-rust stainless steel (such as 440C) for moisture-prone sectors. Supplied under our RMO brand alongside comprehensive OEM solutions, it is a go-to choice for global automation and consumer hardware manufacturers.

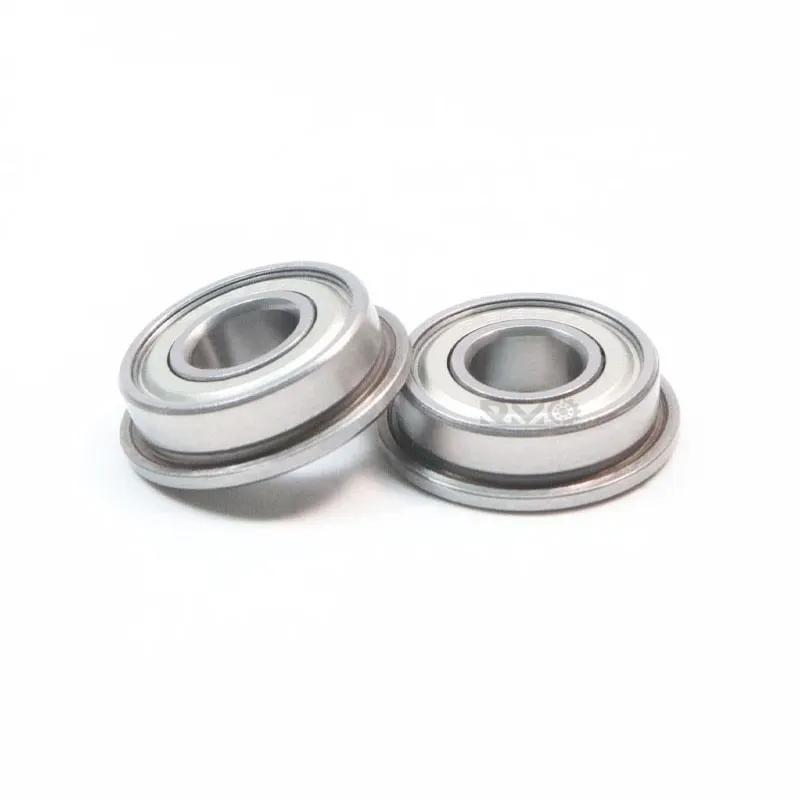

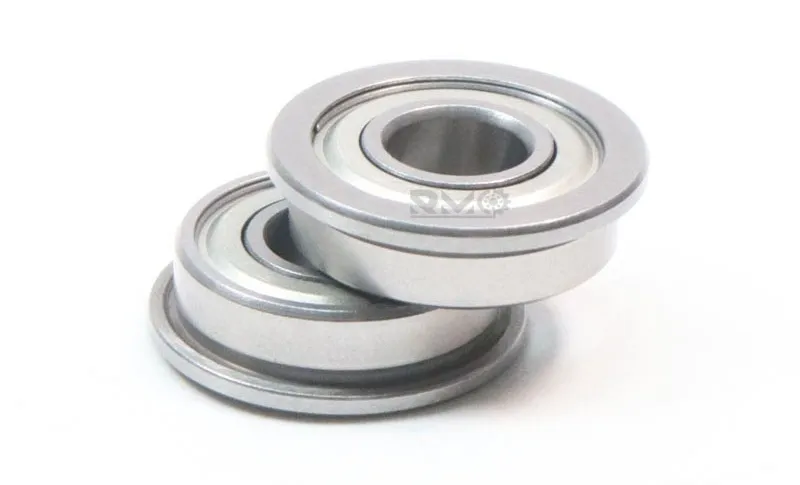

RMO brand F698ZZ flanged ball bearings

⚙️Product Features:

  • Integrated 22mm Flange Stop: The extended outer flange shoulder acts as a built-in locator, simplifying housing design and preventing axial push-through.
  • Dual Material Flexibility: Available in standard GCr15 chrome steel for cost-effective rigidity or stainless steel for superior oxidation and moisture defense.
  • Low-Friction Shielding: Equipped with dual metal shields (ZZ) or contact rubber seals to lock in high-grade synthetic grease and block particulate entry.

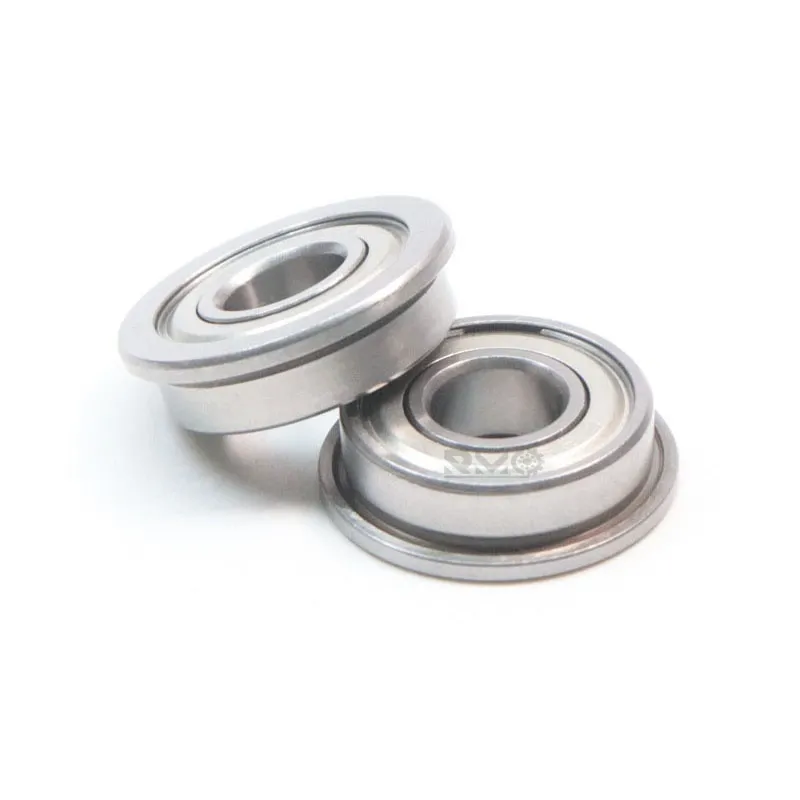

  • Optimized 8mm Bore Size: Fits standard 8mm guide shafts, linear rods, and idler pulley studs with minimal play and high rotation fluency.

⚙️Product Application:

Combining precision positioning with dual-material adaptability, the F698ZZ bearing is widely deployed in:

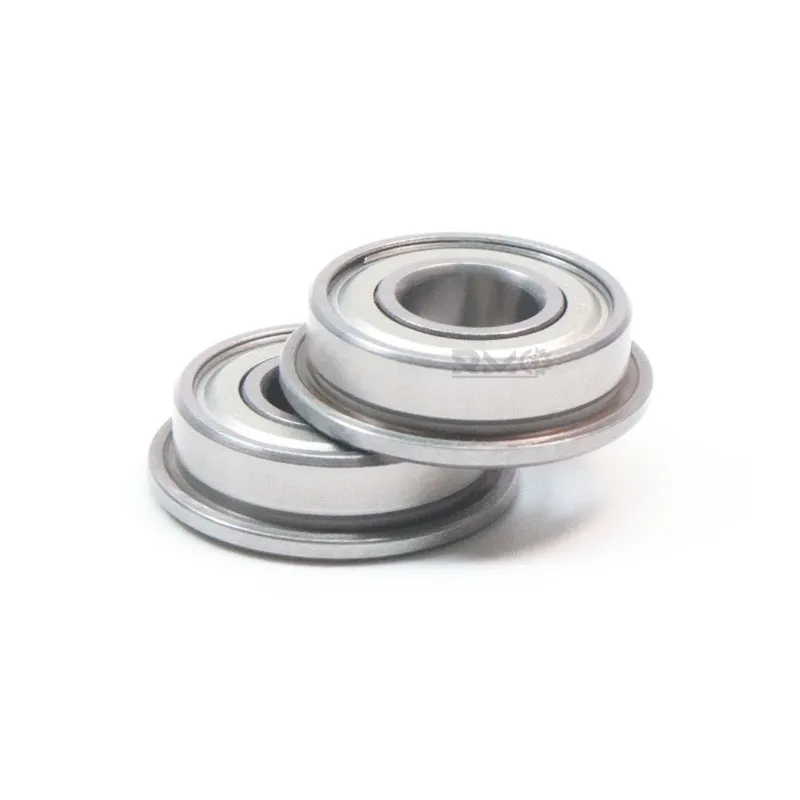

  • 3D printing & CNC machinery: filament idler pulleys, belt tensioners, and lead screw guides.
  • Fitness & gym equipment: cable crossover machine pulleys, exercise bike resistance rollers.
  • Consumer appliances: vacuum cleaner motor mounts, small electric fans, and sliding door mechanisms.
  • Automation & office hardware: document scanners, currency counters, and small conveyor rollers.

⚙️Precautions:

1. Keep clean2. Use with caution3. appropriate tool4. Hot-loading5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.Strong impact during use can easily cause scratches and indentations.Avoid replacing existing tools, and use appropriate tools.Bearings are precision parts, so hot installation is recommended.Sweat on your hands during operation will cause rust, so it is best to wear gloves.

⚙️Obtain Certificate:

About Rimao

Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.

We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!

⚙️Technical Parameters:

Model No.
F698ZZ / F698-2RS  / SF698ZZ
Bearing TypeFlanged Deep Groove Ball Bearing
Dimensions8x19x6mm (Inner d x Outer Dia D x Total Width/Height H)
Flange DimensionsFlange OD=22mm, Flange Width=1.5mm
Seal TypeMetal Shielded (ZZ) / Contact Rubber Sealed (2RS)
Material OptionsGCr15 Chrome Steel / Stainless Steel 440C
Precision GradeABEC-1 to ABEC-5 (P0 – P5)
Target Application)3D Printers, Fitness Gear, Idlers
Lead Time3-5 days for stock; 7-15 days for bulk orders
BrandRMO/Neutral/OEM/Other Brands
Shipping PortGuangzhou, Ningbo, Shanghai
Shipping MethodExpress (DHL/FedEx/UPS), Air Freight, Sea Freight
Payment100% T/T, or 30% T/T In Advance, 70% T/T After Finished Production
