Heavy-Duty HK2416 Drawn Cup Needle Bearings for Motorcycle Transmissions
| Item No : | HK2416 |
| Size (d*D*B) : | 24x30x16mm |
| Material : | Chrome Bearing Steel GCr15 |
| Lead Time : | 3-5 days |
| Weight : | 0.02KG |
| MOQ : | 100 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:

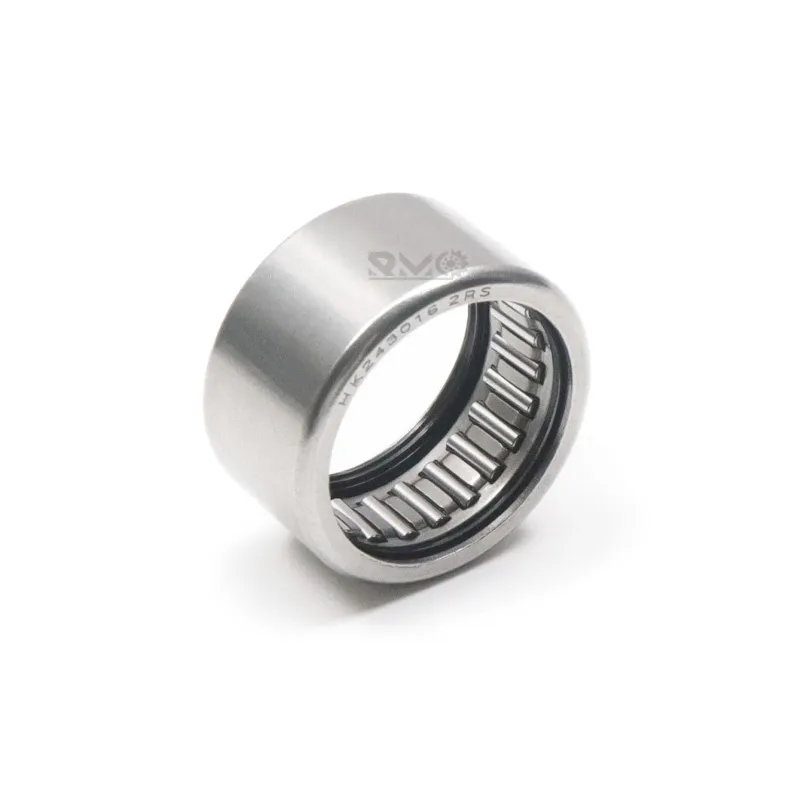

The HK2416 (24x30x16mm) is an open-end drawn cup needle roller bearing engineered for applications requiring extremely high radial load capacity within limited radial housing space. Featuring a 24mm inner shaft diameter, 30mm outer diameter, and 16mm width, it utilizes a precision thin-walled outer ring pressed from high-grade cold-rolled steel, housing a guided complement of GCr15 chrome steel needle rollers and a rigid steel cage. By using the shaft directly as the inner raceway, it minimizes radial cross-section height while delivering high rigidity and torque transfer efficiency. We supply these compact needle bearings under our proprietary RMO brand while supporting global multi-brand OEM sourcing for automotive powertrains, gear reducers, and hydraulic equipment manufacturers.
⚙️Product Features:
- Ultra-Compact Radial Profile: Extremely low 3mm radial section height allows maximum space optimization in dynamic gearbox housings.

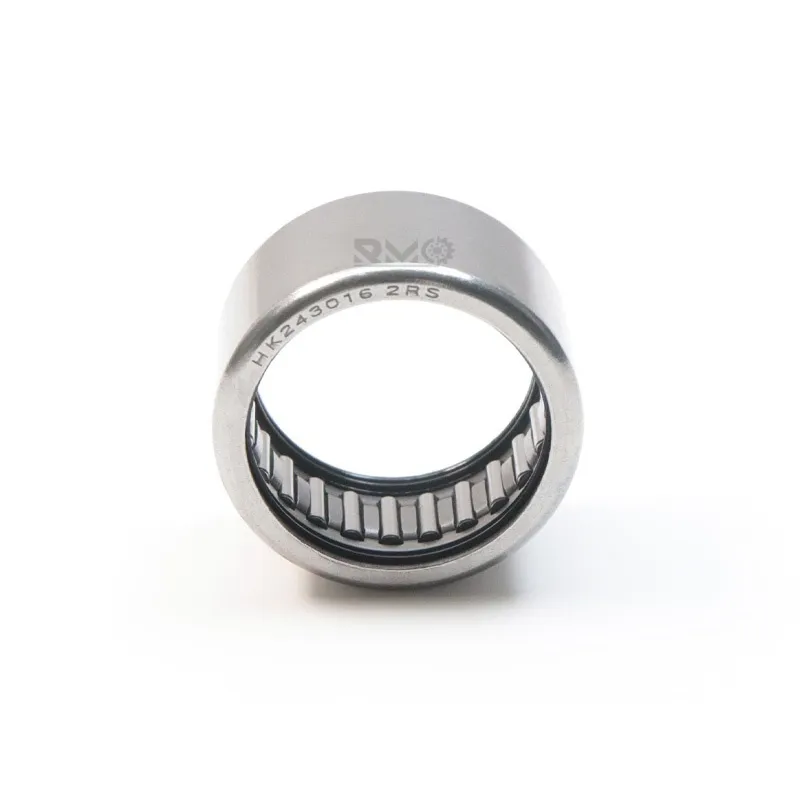

- Cold-Rolled Thin-Walled Steel Cup: Precision-formed steel outer cup provides rigid press-fit seating inside housing bores without needing axial retaining snap rings.
- High Line-Contact Load Rating: Dense needle roller complement provides exceptional dynamic and static radial load resistance under heavy continuous operation.
- Optimized Roller Guidance: Rigid retainer geometry ensures precise needle parallelism and low friction torque at elevated rotational speeds.
⚙️Product Application:
Engineered for compact power transmission, high radial shock resistance, and minimal housing mass, the HK2416 bearing is widely specified in:
- Automotive & powersports: motorcycle transmission shafts, manual gearbox idler gears, and ATV clutch drives.
- Fluid power & hydraulics: hydraulic gear pumps, orbital motors, and axial piston pump cradle pivots.
- Industrial gearboxes: planetary gear reducers, automated speed changers, and power tool gear trains.
- General machinery: textile machinery needle bars, agricultural implement drives, and lawn tractor transmissions.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Bearing Model | HK2416 |
| Bearing Type | Open-End Drawn Cup Needle Roller Bearing |
| Metric Dimensions | 24x30x16mm (Inner d x Outer Dia D x Total Width/Height H) |
| Structural Design | Thin-Walled Cold-Rolled Steel Outer Cup, Open Ends |
| Outer Ring Material | Cold-Rolled Steel ST14 / Case-Hardened Steel |
| Cage Material | Pressed Steel / Polyamide Retainer Option |
| Shaft Requirement | Shaft Hardness 58-64 HRC |
| Target Application | Motorcycle Gearboxes, Hydraulic Pumps, Reducers |
| Brand | RMO (Own Brand) / Neutral / OEM Custom / Other Global Brands |
| Package | Individual plastic bag, plastic tube or original RMO brand box |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Shipping | Express (DHL/FedEx/UPS), Air Freight, Sea Freight |
| Payment | 100% TT, or 30% TT In Advance, 70% TT After Finished Production |
