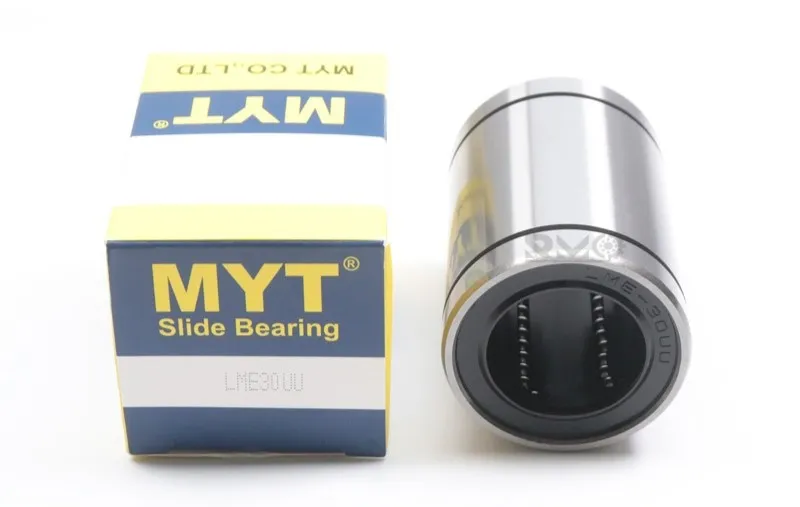

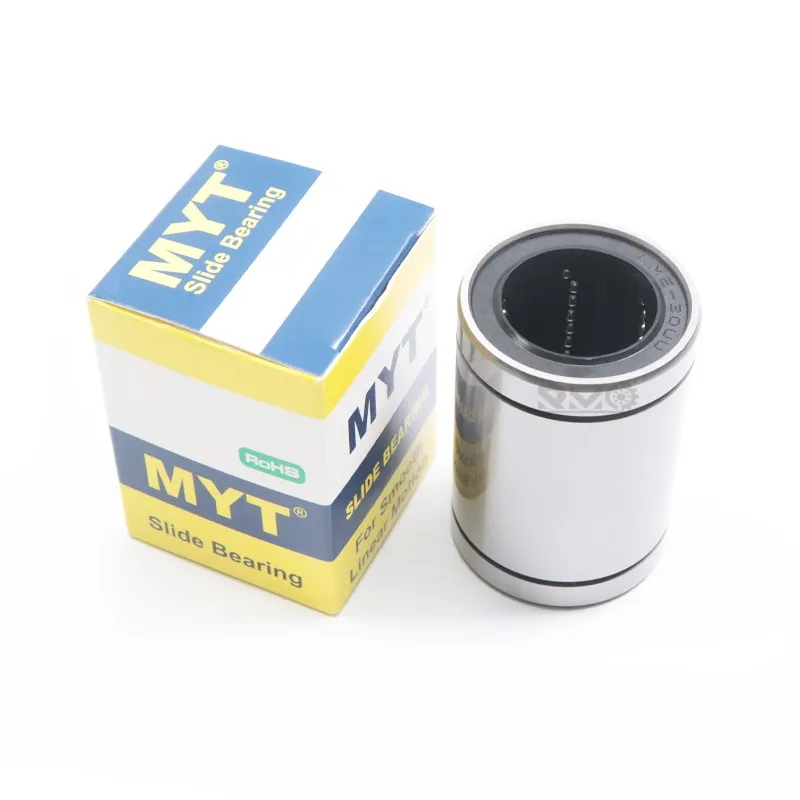

High Precision LME30UU CNC Guide Bushing Linear Motion Bearing
| Item No : | LME30UU |
| Size (d*D*B) : | 30x47x68mm |
| Material : | Chrome Steel GCr15 |
| Lead Time : | 3-5 days |
| Weight : | 0.325KG |
| MOQ : | 100 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:
The LME30UU (30 x 47 x 68 mm) is a European standard linear motion ball bushing equipped with dual synthetic rubber contact seals (UU) to prevent contaminant ingress in high-dust industrial environments. Featuring a 30mm shaft bore, a 47mm outer diameter, and a 68mm overall length, it incorporates a heat-treated chromium steel outer sleeve and high-density ball tracks to ensure smooth, low-friction axial travel along hardened guide shafts. We provide factory-direct inventory of our proprietary RMO brand LME30UU bearings for cost-conscious bulk buyers, alongside strategic global brand sourcing options for high-end industrial automation OEM applications.
⚙️Product Features:
- European Standard LME Geometry: Engineered to ISO/European metric standards (30x47x68mm) for direct interchangeability across global automation equipment.
- Dual-Lip Rubber Contact Seals (UU): Double rubber seals retain internal lithium grease while effectively preventing fine metallic dust and coolant intrusion.
- Hardened Chrome Steel Outer Sleeve: Precision-ground GCr15 outer cylinder provides extreme rigidity and minimal deformation under heavy side loads.
- Multi-Row Recirculating Ball Guidance: High-precision steel ball circuits deliver smooth rolling friction, minimal stick-slip, and low operating noise during high-speed stroke motion.
- Flexible Dual-Track Supply: Direct factory stock of proprietary RMO brand bearings for cost optimization, with premium international brand options upon client request.
⚙️Product Application:
- CNC Machine Tools & Automated Slide Units: Multi-axis CNC routers, automated linear slides, and laser cutting positioning gantries.
- 3D Printing & Industrial Robotics: Heavy-duty 3D printer gantry rails, pick-and-place robotic arms, and linear motion modules.
- Packaging & Textile Machinery: Automated labeling machinery, high-speed textile feeding slides, and sorting conveyor mechanisms.
- Plastic Injection & Woodworking Equipment: Mold ejection guidance rods, woodworking edge-bander linear units, and press machines.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model No. | LME30UU / LME 30 UU |
| Size | 30x47x68mm (Inner d x Outer D x Total Length/Height H) |
| Bearing Category | Linear Bearing / European Standard Linear Bushing |
| Sealing Type | Dual-Lip Rubber Seals on Both Sides (UU) |
| Outer Sleeve Material | Precision-Ground GCr15 Chrome Steel |
| Cage material | Nylon / Steel |
| Precision Rating | P0 / P6 (ABEC-1 / ABEC-3) Optional |
| Ball Circuit Count | 6 Ball Rows |
| Target Machinery | CNC Machines, Linear Modules, Industrial Robots, Packaging Drives |
| Brand | RMO/Neutral/OEM/Other Brands |
| Packing Method | |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Shipping Port | Guangzhou, Ningbo, Shanghai |
| Payment | 100% T/T, or 30% T/T In Advance, 70% T/T After Finished Production |
| Model No. | d | D | H | m |
| LME3 | 3 mm | 7 mm | 10 mm | 1.35 g |
| LME4 | 4 mm | 8 mm | 12 mm | 1.9 g |
| LME5 | 5 mm | 12 mm | 22 mm | 11 g |
| SDE5 | 5 mm | 12 mm | 22 mm | 10 g |
| LME8 | 8 mm | 16 mm | 25 mm | 20 g |
| SDE8 | 8 mm | 16 mm | 25 mm | 20 g |
| SDE10 | 10 mm | 19 mm | 29 mm | 27 g |
| LME12 | 12 mm | 22 mm | 32 mm | 41 g |
| UB-12A | 12 mm | 22 mm | 32 mm | 41 g |
| LME16 | 16 mm | 26 mm | 36 mm | 57 g |
| SDE16 | 16 mm | 26 mm | 36 mm | 53 g |
| LME20 | 20 mm | 32 mm | 45 mm | 91 g |
| LME25 | 25 mm | 40 mm | 58 mm | 215 g |
| SDE25Y | 25 mm | 40 mm | 58 mm | 170 g |
| LME30 | 30 mm | 47 mm | 68 mm | 325 g |
| LME40 | 40 mm | 62 mm | 80 mm | 705 g |
| LME50 | 50 mm | 75 mm | 100 mm | 1130 g |
| LME60 | 60 mm | 90 mm | 125 mm | 2220 g |
| LME80GA | 80 mm | 120 mm | 165 mm | 5140 g |
