RMO Brand PHS6 6x18x39x9mm Pneumatic Linkage Bearing Supplier
| Item No : | PHS6 (Right Hand) & PHS6L (Left Hand) |
| Size (d*D*B) : | 6x18x39x9mm |
| Material : | Steel with Zinc Plated |
| Lead Time : | 3-5 days |
| Weight: | 0.0233KG |
| MOQ : | 50 pcs |
| Service : | Support Sample Testing |
⚙️Product Description:
The PHS6 (Right-Hand Thread) and PHS6L (Left-Hand Thread) are specialized 6x18x39x9mm female rod end bearings, widely recognized as Heim joints. Engineered to accommodate moderate misalignment and oscillating movements, these rod ends feature an internal M6 thread for seamless integration into control rods and mechanical linkages. As an expert B2B component supplier, we provide these essential articulation joints under our rigorously tested RMO brand, while also offering customized sourcing solutions for other tier-one OEM brands to match your specific assembly needs.
⚙️Product Features:
- Right & Left Hand Options: Available in both standard right-hand (PHS6) and reverse left-hand (PHS6L) threads, allowing for precise tension and length adjustments in dual-linkage systems.
- Internal Female M6 Thread: Precisely tapped female threading guarantees secure, vibration-resistant mounting to pneumatic cylinder rods and tie rods.
- Self-Aligning Spherical Ball: The hard-chrome plated inner ball rotates smoothly within the housing, compensating for shaft misalignment and multi-directional angular stress.
- Corrosion-Resistant Housing: Constructed with zinc-plated carbon steel, the housing body offers excellent durability and resistance against environmental oxidation.
⚙️Product Application:
Designed to facilitate smooth articulation and load transfer in mechanical linkages, the PHS6/PHS6L rod end is ideal for:
- Pneumatic and hydraulic cylinder clevis linkages and rod ends.
- Robotic arms, automated packaging machinery, and linear motion control systems.
- Small vehicle steering tie rods, go-kart linkages, and suspension joints.
- Industrial textile machines and printing press articulating mechanisms.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model No. | |
| Bearing Category | |

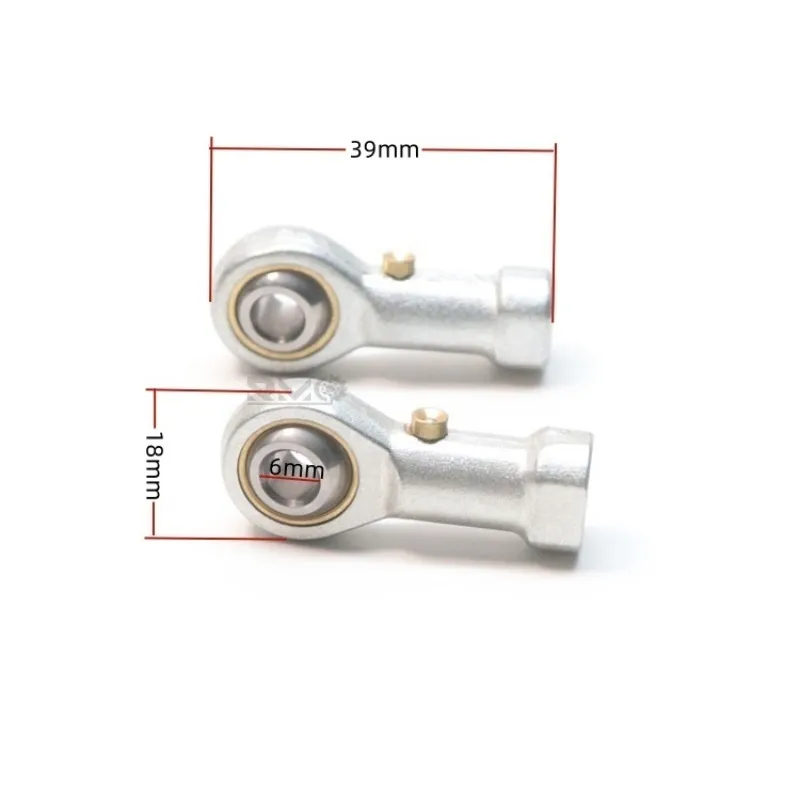

| Dimensions | 6x18x39x9mm (Bore d x Head d2 x Total Length L x Width B) |
| Thread Size | M6 x 1.0 Female Internal Thread |
| Ball Material | Bearing Steel GCr15, Hard Chrome Plated |
| Housing Material | |
| Target Application | Pneumatic Cylinders, Linkages & Automation |
| Brand | RMO (Own Brand) / Neutral / OEM Custom / Other Global Brands |
| Package | |
| Lead Time | |
| Shipping | |
| Payment | 100% TT, or 30% TT In Advance, 70% TT After Finished Production |
| Model No. | Main Dimension(mm) | Load (KN) | weight (g) | ||||||||||||||
| D | D3 | B | C1 | W | L3min | D2 | L4 | h1 | L5 | D4 | D5 | DK | D1 | Dyn.c | stat.C0 | ||
| PHS 5 | 5 | M5*0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 | 11.11 | 7.7 | 3.25 | 5.7 | 15.2 |
| PHS 6 | 6 | M6*1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10 | 13 | 12.7 | 8.96 | 4.3 | 7.2 | 22.3 |
| PHS 8 | 8 | M8*1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 | 15.875 | 10.4 | 7.2 | 11.6 | 42.2 |
| PHS10 | 10 | M10*1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 12.9 | 10 | 14.5 | 68.6 |
| PHS10-1 | 10 | M10’1.25 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 | 19.05 | 12.9 | 10 | 14.5 | 68.6 |
| PHS12 | 12 | M12*1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 15.4 | 13.4 | 17 | 104 |
| PHS12-1 | 12 | M12-1.25 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 22.225 | 15.4 | 13.4 | 17 | 104 |
| PHS14 | 14 | M14*2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 | 25.4 | 16.9 | 17 | 24 | 143.5 |
| PHS14-1 | 14 | M14*1.5 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 | 25.4 | 16.9 | 17 | 24 | 143.5 |
| PHS16 | 16 | M16*2.0 | 21 | 15 | 24 | 28 | 38 | 83 | 64 | 8 | 22 | 27 | 28.575 | 19.4 | 21.6 | 28.5 | 197.5 |
| PHS16-1 | 16 | M16*1.5 | 21 | 15 | 24 | 28 | 38 | 83 | 64 | 8 | 22 | 27 | 28.575 | 19.4 | 21.6 | 28.5 | 197.5 |
