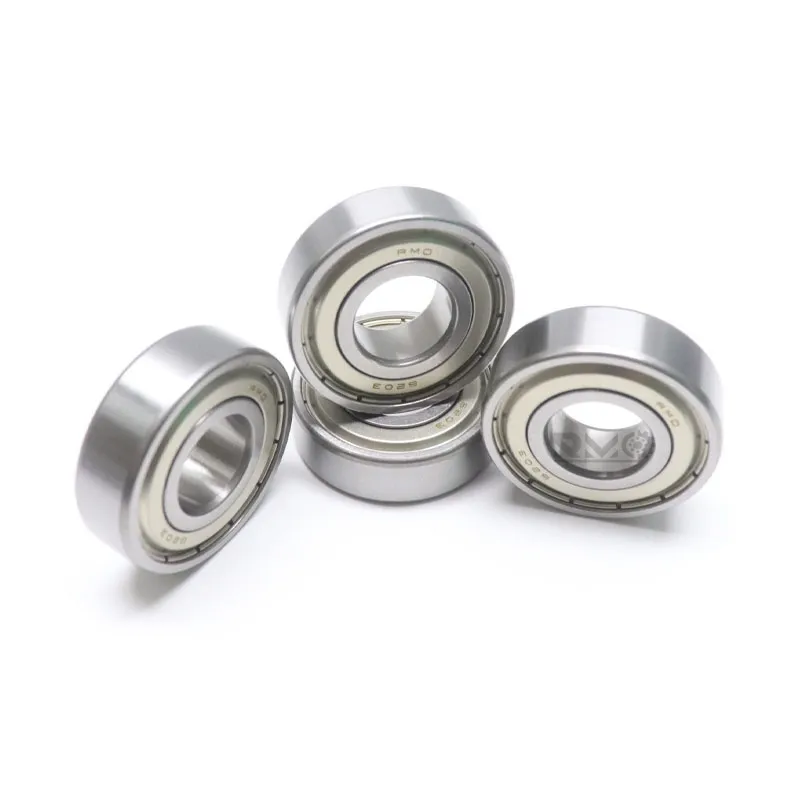

High Speed 6203-2RS Ball Bearing for Electric Motors

Name: High Speed 6203-2RS Ball Bearing for Electric Motors
SKU: 6203-2RS

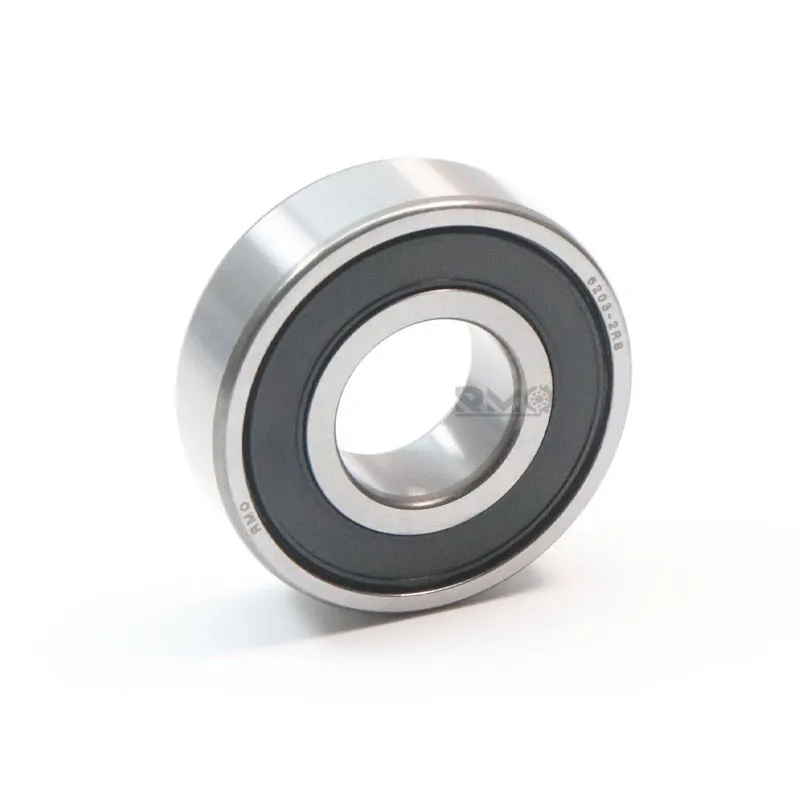

6203-2RS rubber sealed deep groove ball bearing

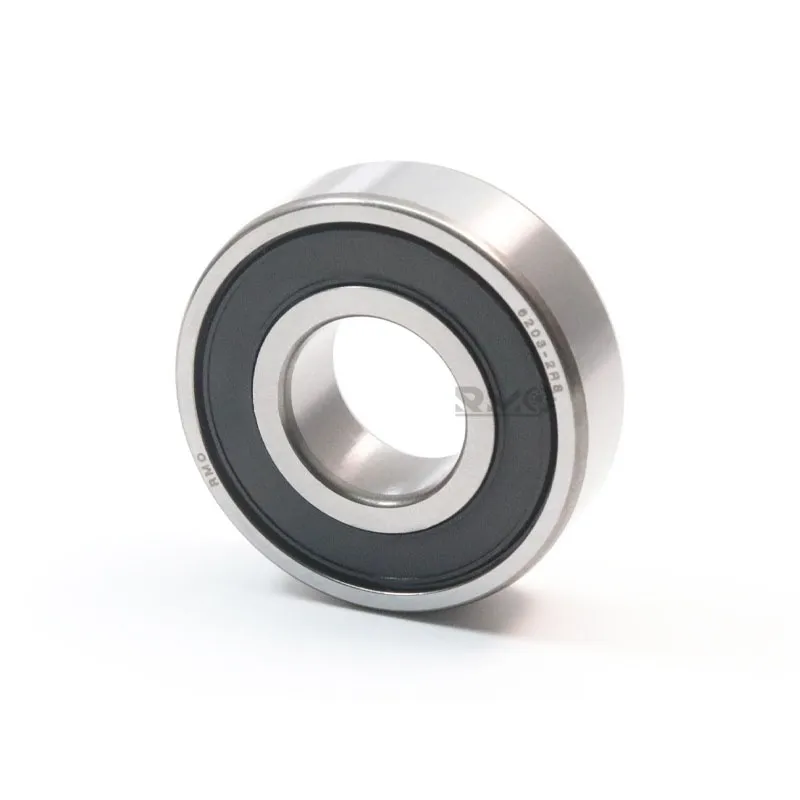

Cross section of 6203-2RS sealed bearing

❮

❯

Share:

Item No :	6203-2RS 6203ZZ

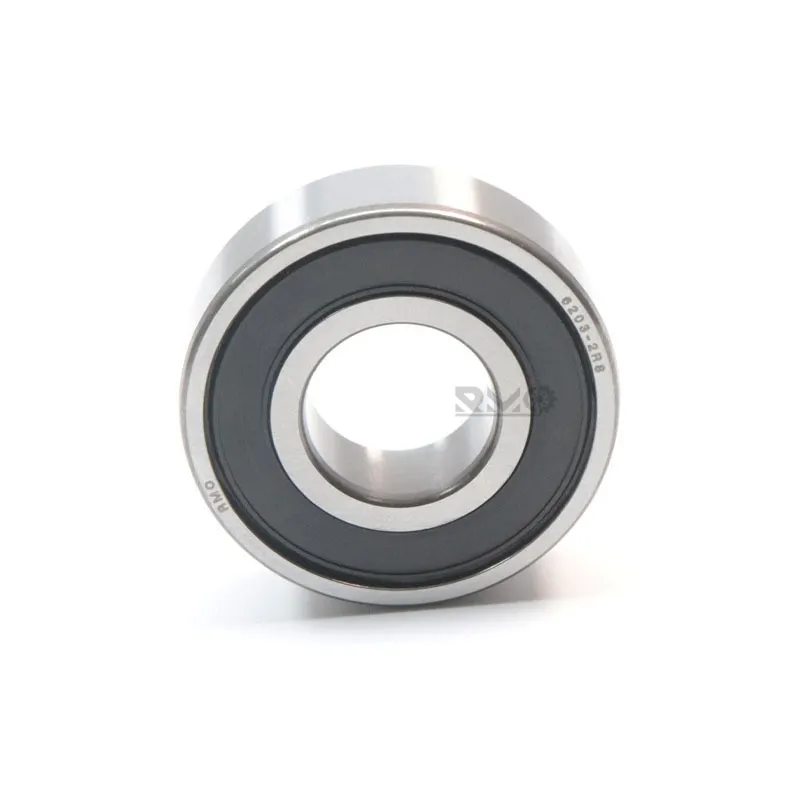

Size (dDB) :	17x40x12mm
Material :	Chrome steel GCr15
Lead Time :	3-5 days
Weight :	0.065KG
MOQ :	50 pcs

⚙️Product description:

High-performance RMO 6203-2RS (Rubber Sealed) and 6203ZZ (Metal Shielded) deep groove ball bearings. Designed for 17mm shafts, these bearings offer exceptional durability and low friction for high-speed industrial applications.

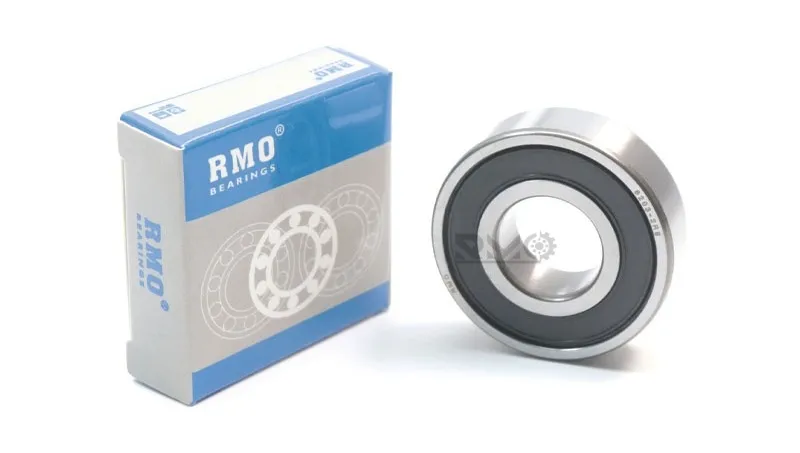

6203 RMO bearing

⚙️Product Features:

Versatile Protection: Available in 2RS (moisture/dust resistant) and ZZ (low friction/high speed) options.
Premium Material: Manufactured from high-quality GCr15 chrome steel for superior wear resistance.
Pre-Lubricated: Factory-filled with premium grease for maintenance-free operation.
High Precision: Optimized internal geometry for low noise and vibration.

⚙️Application fields:

Widely used in electric motors, household appliances, agricultural machinery, conveyor systems, and automotive components.

⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.

⚙️Obtain Certificate:

About Rimao

Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.

We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!

⚙️Technical Parameters:

Item No.	6203-2RS 6203ZZ
Sealing	Open, ZZ (Metal Shield), 2RS (Rubber Seal)
Material	Chrome steel GCr15 or stainless steel (420 440C 304 316) etc.
Precision	ABEC-1 / ABEC-3 (P6)
Clearance	C0 (Standard) / C3
Vibration	Z1V1, Z2V2, Z3V3
Load rating	Dynamic (Cr): ≈ 4.59 KN, Static (Cor): ≈ 1.97KN
Brand	RMO/Neutral/OEM/Other Brand
Lead Time	3-5 Days for Stock; 7-15 Days for Bulk Orders
Shipping Port	Guangzhou, Ningbo, Shanghai
Payment	100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production
Service	Some Models Offer Sample Testing

60-2RS Series Ball Bearing Drawing

Model No.	d	D	H	m	Model No.	d	D	H	m
6200ZZ	10 mm	30 mm	9 mm	0.03 KG	6211ZZ	55 mm	100 mm	21 mm	0.61 KG
6201ZZ	12 mm	32 mm	10 mm	0.04 KG	6212ZZ	60 mm	110 mm	22 mm	0.81 KG
6202ZZ	15 mm	35 mm	11 mm	0.05 KG	6213ZZ	65 mm	120 mm	23 mm	1.05 KG
6203ZZ	17 mm	40 mm	12 mm	0.06 KG	6214ZZ	70 mm	125 mm	24 mm	1.12 KG
6204ZZ	20 mm	47 mm	14 mm	0.104 KG	6215ZZ	75 mm	130 mm	25 mm	1.2 KG
62/22ZZ	22 mm	50 mm	14 mm	0.12 KG	6216ZZ	80 mm	140 mm	26 mm	1.46 KG
6205ZZ	25 mm	52 mm	15 mm	0.13 KG	6217ZZ	85 mm	150 mm	28 mm	1.84 KG
62/28ZZ	28 mm	58 mm	16 mm	0.17 KG	6218ZZ	90 mm	160 mm	30 mm	2.63 KG
6206ZZ	30 mm	62 mm	16 mm	0.2 KG	6219ZZ	95 mm	170 mm	32 mm	2.19 KG
62/32ZZ	32 mm	65 mm	17 mm	0.23 KG	6220ZZ	100 mm	180 mm	34 mm	3.15 KG
6207ZZ	35 mm	72 mm	17 mm	0.29 KG	6221ZZ	105 mm	190 mm	36 mm	3.7 KG
6208ZZ	40 mm	80 mm	18 mm	0.38 KG	6222ZZ	110 mm	200 mm	38 mm	4.45 KG
6209ZZ	45 mm	85 mm	19 mm	0.42 KG	6224ZZ	120 mm	215 mm	40 mm	5.26 KG
6210ZZ	50 mm	90 mm	20 mm	0.47 KG	6226ZZ	130 mm	230 mm	40 mm	5.9 KG
