High Precision RN206 Roller Bearing 30×53.5x16mm for Planetary Gearboxes
| Item No : | RN206EM |
| Size (d*D*B) : | 30×53.5x16mm |
| Material : | |
| Lead Time : | 3-5 days |
| Weight : | 0.144KG |
| MOQ : | 50 pcs |
⚙️Product Description:

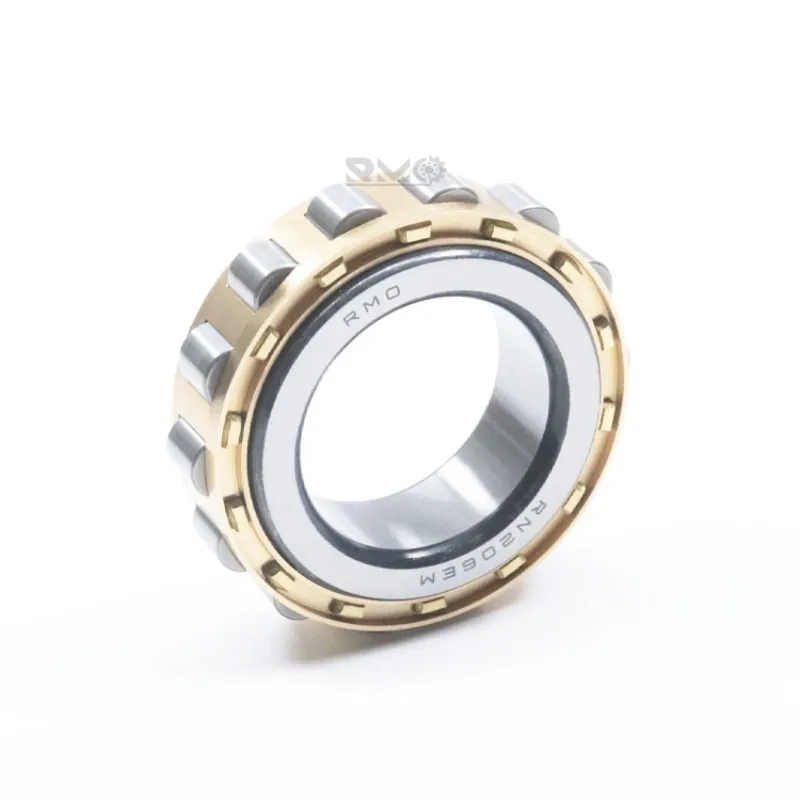

The RN206 (including the high-capacity RN206EM variant) is a specialized single-row cylindrical roller bearing engineered without an outer ring. Featuring a 30 mm bore diameter, a 53.5 mm roller assembly outer diameter, and a 16 mm width, its precision rollers run directly against the housing bore. Designed with double integral ribs on the inner ring, this compact unit delivers exceptionally high radial capacity while minimizing radial space requirements. We provide factory-direct inventory of our proprietary RMO brand RN206 bearings with solid brass or steel cage options, alongside premium international brand sourcing for planetary gearboxes, hydraulic pumps, and compact mechanical drives.
⚙️Product Features:
- Outer-Ringless Compact Design: Direct contact between precision rollers and the housing bore eliminates the outer ring, reducing radial weight and structural envelope size.
- Double-Ribbed Inner Ring Guidance: Two integral inner ring flanges ensure strict axial roller guidance and prevent cage tilting during high-speed rotation.

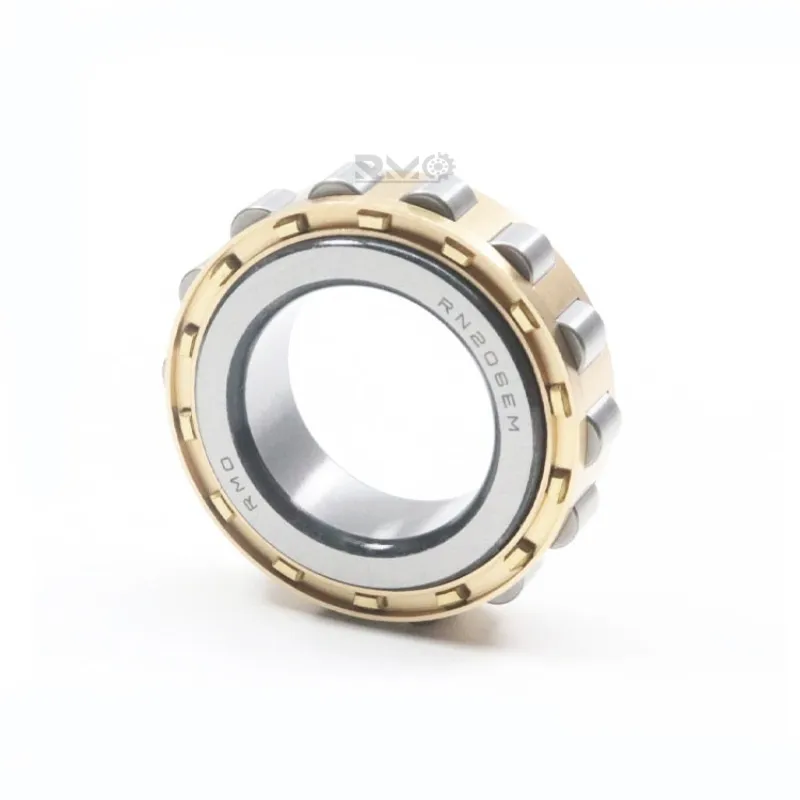

- Heavy-Duty Brass Cage Option (EM): High-strength machined brass cage provides superior resistance to mechanical shock, vibration, and thermal expansion in continuous duty.
- Crown-Profiled GCr15 Rollers: Optimally profiled chromium steel rollers eliminate edge stress concentration under heavy radial loading.
- Flexible Dual-Track Supply: Direct factory supply of RMO brand micro-space bearings for cost optimization, paired with top global brand sourcing for specialized OEM requirements.
⚙️Product Application:
- Planetary Gear Units & Compact Gearboxes: Compact planetary gear assemblies, automotive transmissions, and industrial speed reducers.
- Hydraulic Pumps & Motors: Axial piston pumps, heavy-duty hydraulic motors, and fluid power equipment.
- Textile & Agriculture Machinery: High-density drive spindles, agricultural equipment gearboxes, and power take-off (PTO) shafts.
- Construction & Mining Equipment: Small-footprint reduction units, winch drive drums, and auxiliary drive assemblies.
⚙️Precautions:
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |  |  |  |  |
⚙️Obtain Certificate:
About Rimao
Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.
We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
⚙️Technical Parameters:
| Model No. | |
| Bearing Type | Outer Ringless Cylindrical Roller Bearing |

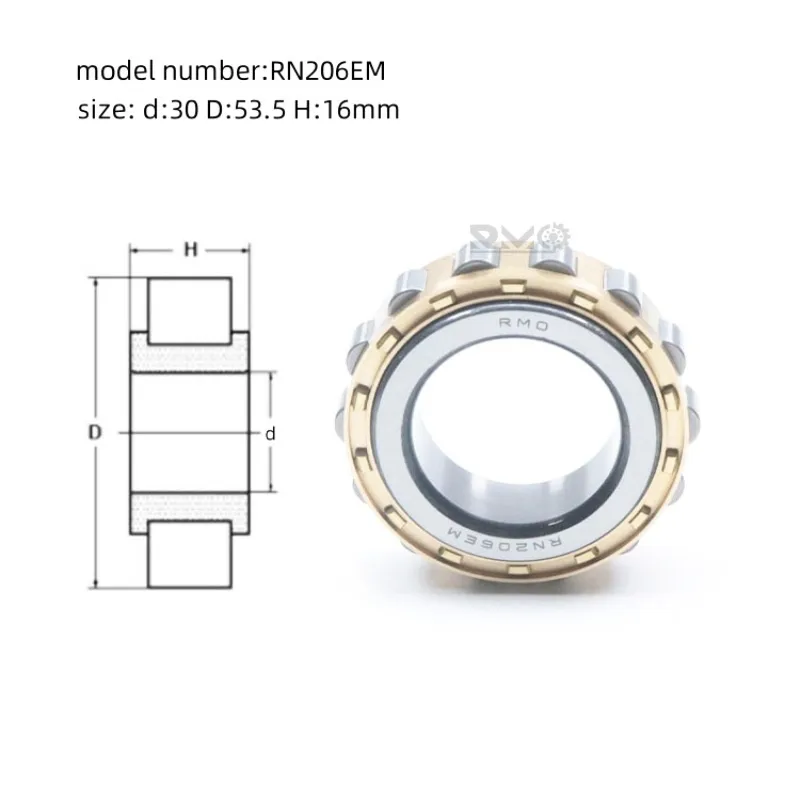

| Size | 30×53.5x16mm (Bore d x Outer Dia D x Width/Height H) |
| Cage Material Options | |
| Roller Material | High Carbon Chromium Bearing Steel (GCr15 / AISI 52100) |
| P0, P6, P5 (ABEC-1, ABEC-3, ABEC-5) | |
| Target Machinery | Planetary Gearboxes, Hydraulic Pumps, Textile Machinery, Automotive Drives |
| Brand | RMO / TMB / Neutral / OEM / Other Brands |

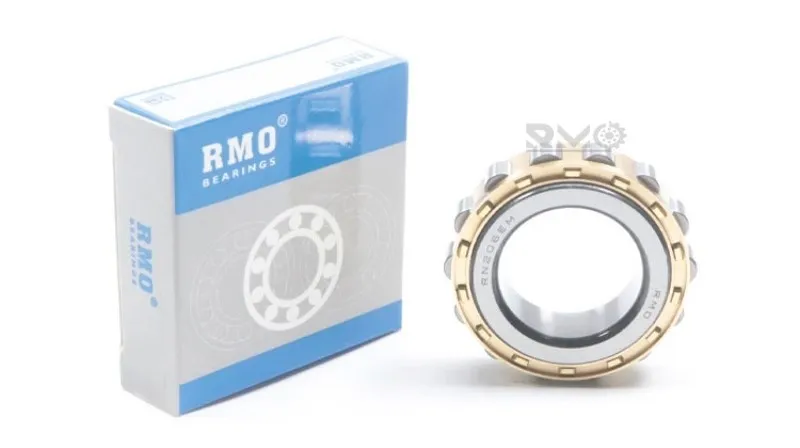

| Package | Individual plastic bag, plastic tube or original RMO brand box |
| Lead Time | 3-5 days for stock; 7-15 days for bulk orders |
| Shipping | Express (DHL/FedEx/UPS), Air Freight, Sea Freight |
| Payment | 100% T/T, or 30% T/T In Advance, 70% T/T After Finished Production |
