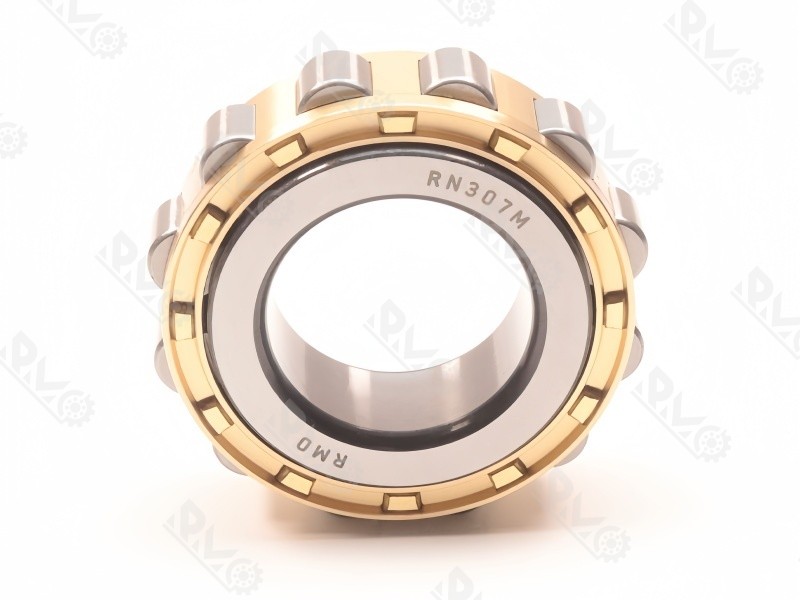

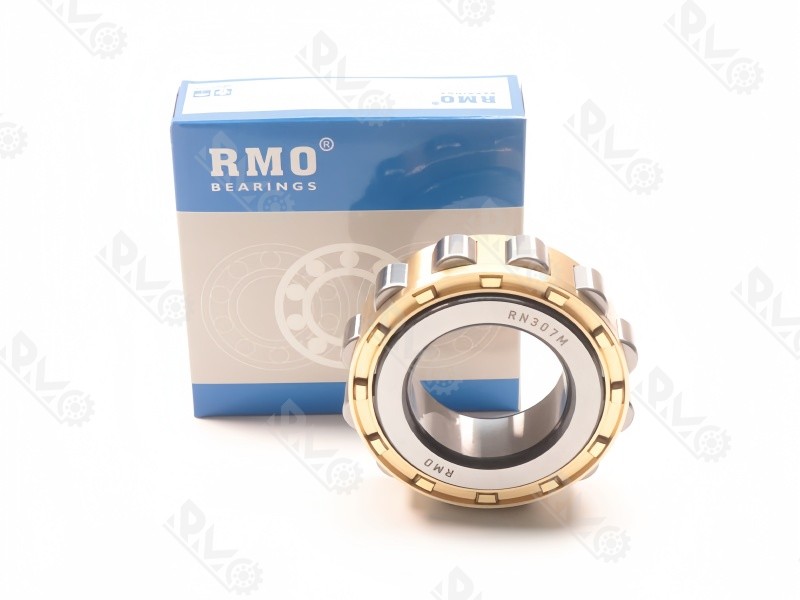

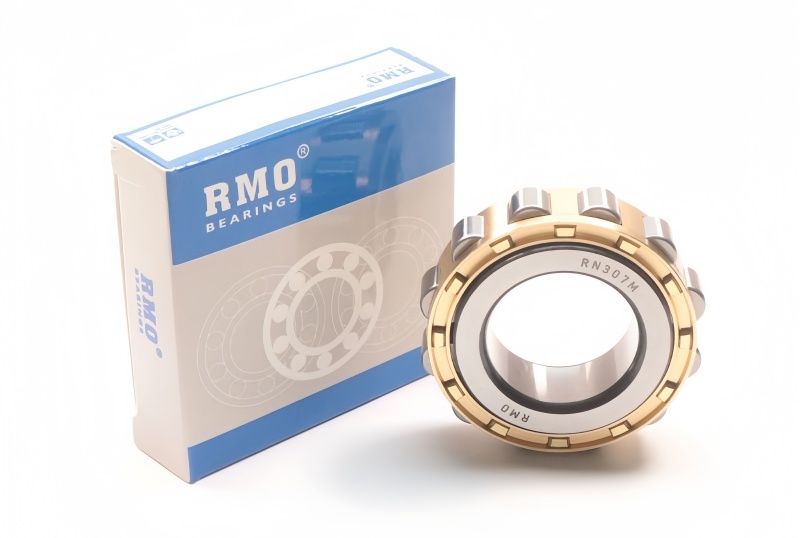

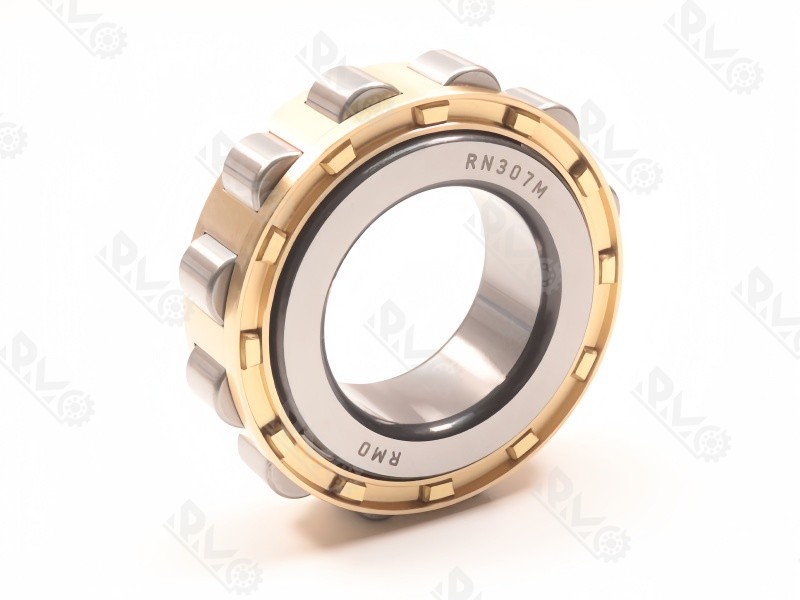

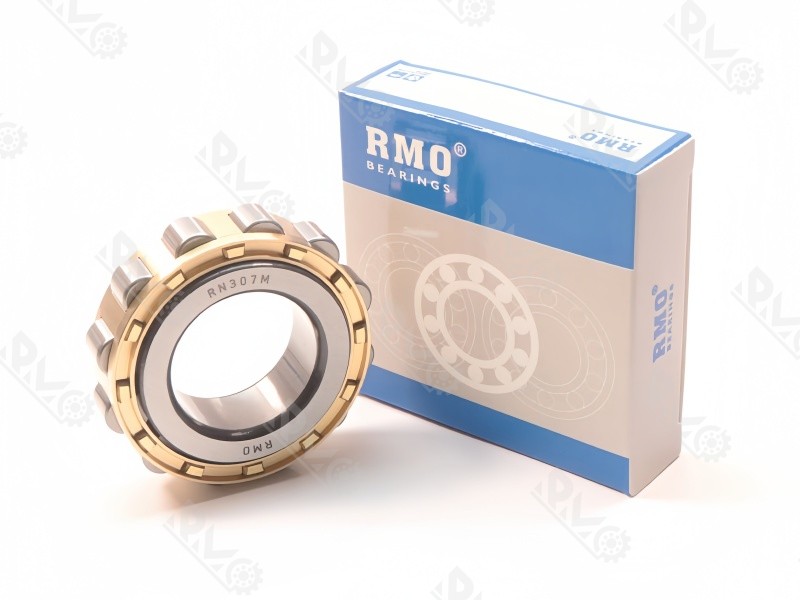

RN307M Outer Ring Free Cylindrical Roller Bearing for Machinery & Automotive
Item No :
RN307MSize (d*D*B) :
35x68.2x21mmMaterial :
Chrome steel + BrassBrand :
Famous brand/RMO/Neutral/OEMLead Time :
3-5 daysWeight :
0.315KGService :
Supports DHL, FedEx courier services and sea freight shippingRN307M Outer Ring Free Cylindrical Roller Bearing for Machinery & Automotive
⚙️Product description:
The RN307M is a single row cylindrical roller bearing without an outer ring free design, which is widely recognized in the global industrial market for its excellent radial load bearing capacity and high precision operation. It is a cost effective and reliable choice for mechanical manufacturing, auto parts and energy mining industries.
| Item No. | RN307M |
| Branding | Famous brand/RMO/Neutral/OEM |
| Sealing | OPEN |
| Material | Chrome steel Gcr15 |
| Lead Time | 3-5 days |
| Precision | p0 p6 p5 p4 |
| Clearance | C0 C3 |
| load capacity | Radial, Basic rated dynamic load 62.7KN, Basic rated static load 42.8KN |
| Cage material | Brass |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Strong Radial Load Capacity: The linear contact between the cylindrical rollers and the raceway enables the RN307M to bear heavy radial loads, which is far superior to deep groove ball bearings in high load working conditions such as mining machinery and industrial motors.
Space-Saving Design: The outer ring free structure simplifies the mechanical assembly. It can be directly matched with the appropriate inner diameter journal to form a supporting structure, which is especially suitable for equipment with limited installation space.
Low Friction & High Efficiency: The precision processed rollers and cage (brass optional) minimize the friction coefficient during operation. It achieves low-noise and low-energy consumption operation while maintaining high speed.

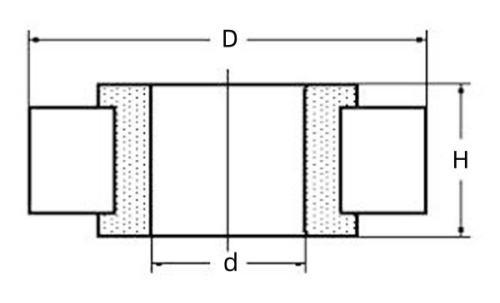

| Model No. | d | D | H | m |
| RN204 | 20 mm | 40 mm | 14 mm | 0.08 KG |
| RN206 | 30 mm | 53.5 mm | 16 mm | 0.14 KG |
| 502206W1 | 30 mm | 53.5 mm | 16 mm | 0.14 KG |
| RN206E | 30 mm | 53.5 mm | 16 mm | 0.13 KG |
| 502206EA | 30 mm | 53.5 mm | 16 mm | 0.31 KG |
| RN606M | 30 mm | 60 mm | 26 mm | 0.34 KG |
| RN606M-1 | 30 mm | 68 mm | 26 mm | 0.43 KG |
| RN208 | 40 mm | 70 mm | 18 mm | 0.27 KG |
| RN208E | 40 mm | 71.5 mm | 18 mm | 0.24 KG |
| RN307 | 35 mm | 68.2 mm | 21 mm | 0.32 KG |
| RN309 | 45 mm | 86.5 mm | 25 mm | 0.61 KG |
| RN310 | 50 mm | 95 mm | 27 mm | 0.8 KG |
| RN312 | 60 mm | 113 mm | 31 mm | 1.28 KG |
| RN313 | 65 mm | 121.5 mm | 33 mm | 1.57 KG |
⚙️Typical Applications:
Automotive Industry: Auto accessories and engine related transmission components.
Precision Machinery: Machine tool components, precision instruments and spectral analysis equipment.
Energy & Mining: Coal mining equipment, oil field machinery and energy processing equipment.
General Manufacturing: decoration machinery, printing equipment, electric motors and food & beverage processing machinery.
Mechanical Maintenance: It is an ideal replacement part for the maintenance of imported and domestic machinery, with a high degree of interchangeability.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
