Item No :
SBR16 linear guide railSize (d*D*B) :
16x150mmMaterial :
chrome steel with aluminiumLead Time :
Normally 3-5 daysWeight :
0.55KGPayment Terms :
100% T/T or 30% T/T in advance ,70% before deliveryMOQ :
10 pcsShipping Port :

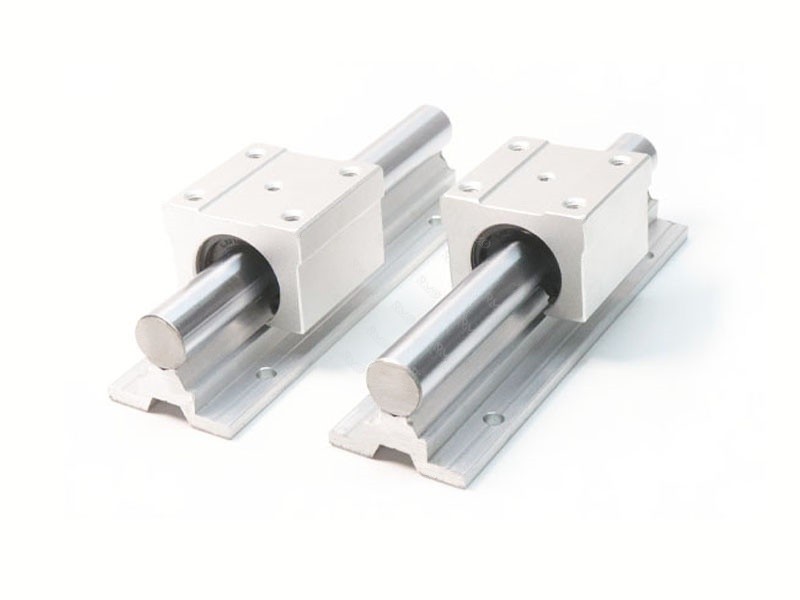

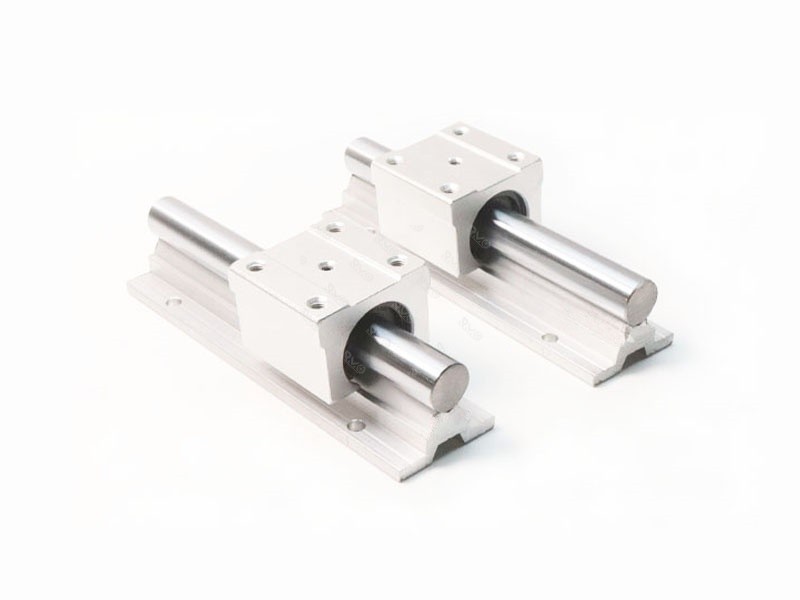

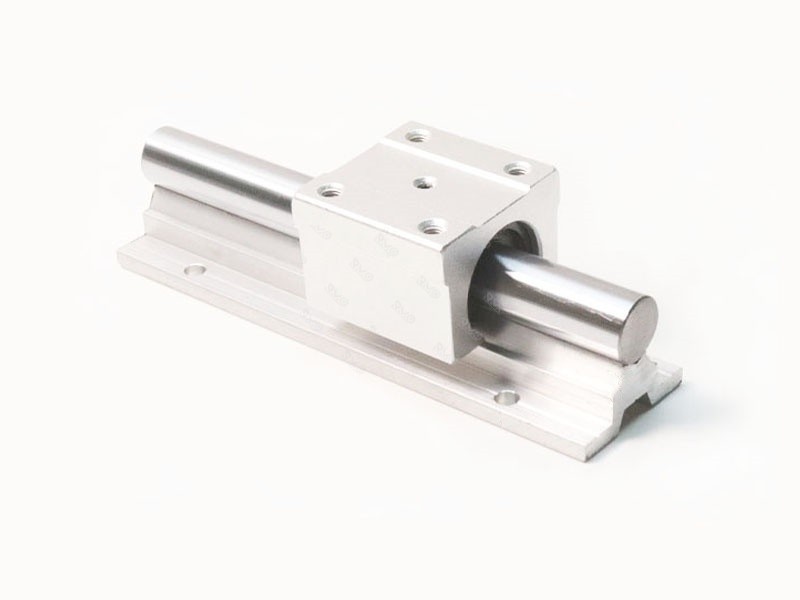

Guangzhou, Ningbo, ShanghaiSBR16 linear guide rail with SBR16UU slider
⚙️SBR16 Linear Guide Rail:
Model meaning: "SBR" indicates the type of the linear guide, and "16" refers to the shaft diameter of the guide being 16mm.
Product material: Usually made of bearing steel or high-carbon steel, with a chrome plating treatment on the surface, it has good rust resistance and wear resistance. Some products are equipped with an aluminum support structure to enhance the stability and rigidity of the guide.
Product features: It has high precision, with precise circular shaft dimensions and high straightness, ensuring the accuracy, repeatability and stability of the movement; the guide surface is smooth, with a low friction coefficient when cooperating with the slider, enabling smooth, low-noise linear movement; installation is convenient, with precise installation holes on the sturdy aluminum base and slider, facilitating reliable installation and connection by users.

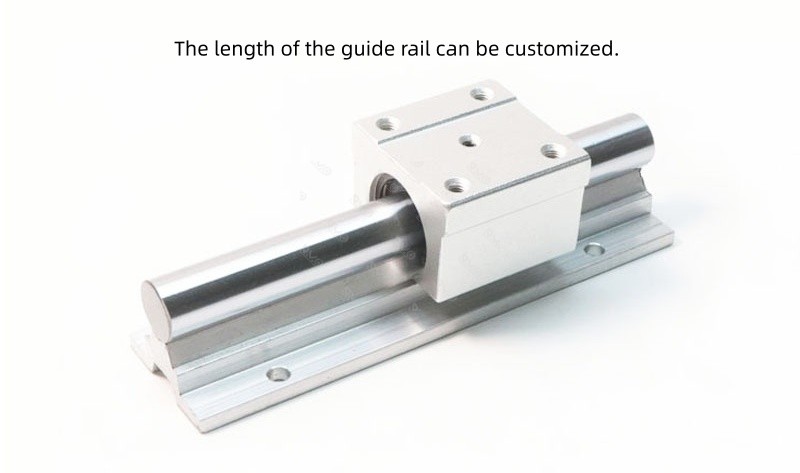

Length specifications: There are usually multiple lengths available for selection, including 400mm, 800mm, 1000mm, 1500mm, etc., with the longest reaching up to 6000mm.
⚙️SBR16 slider:

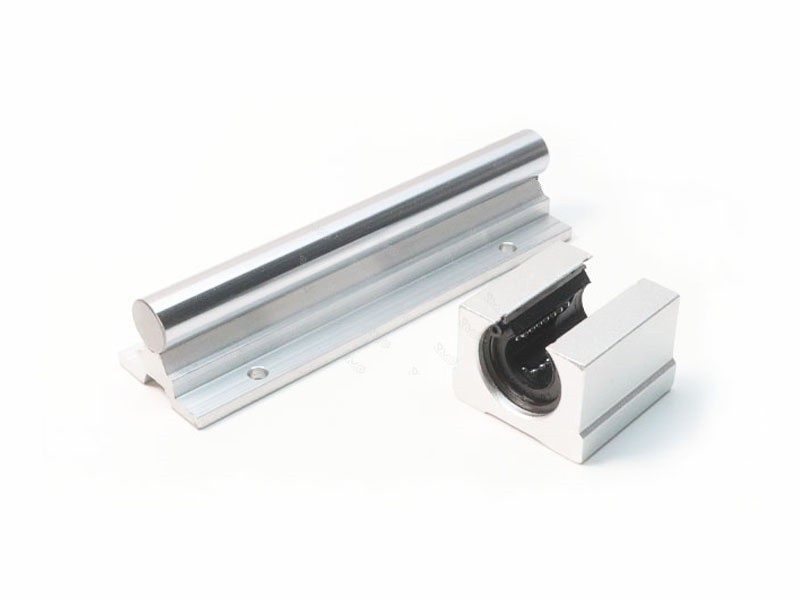

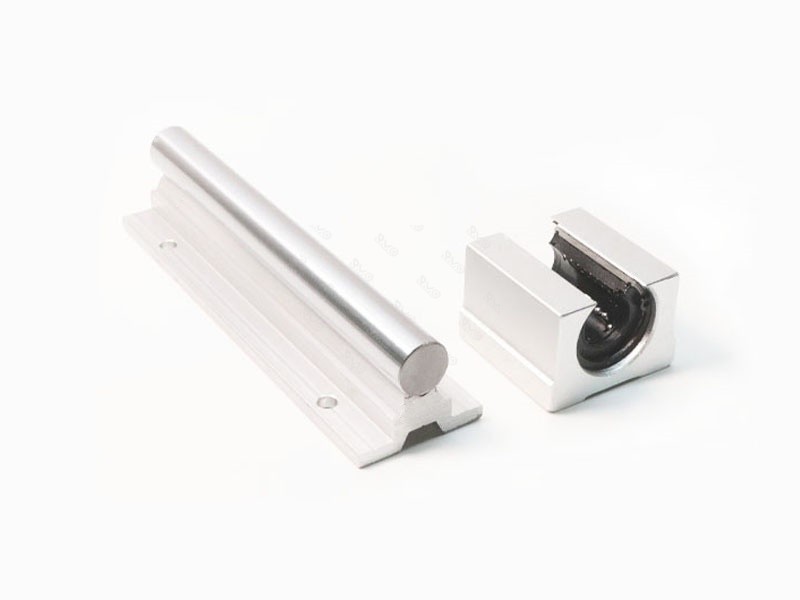

Slider model: It is SBR16UU, which is used in conjunction with the SBR16 linear guide rail.
Material: The main body of the slider is generally made of aluminum alloy, and the bearings inside are made of high-quality bearing steel. This combination ensures the lightweight of the slider while also providing high load-bearing capacity and wear resistance.
Structure: There are multiple ball bearings inside, and these ball bearings roll on the guide rail, enabling the slider to move linearly along the guide rail and providing good guidance and stability.
Size: The SBR16UU slider has dimensions (length × width × height) of approximately 45mm × 45mm × 33mm.
Load capacity: The dynamic load of a single slider is approximately 774N, and the static load is approximately 1180N, which can meet the load requirements of various automated equipment and DIY projects.

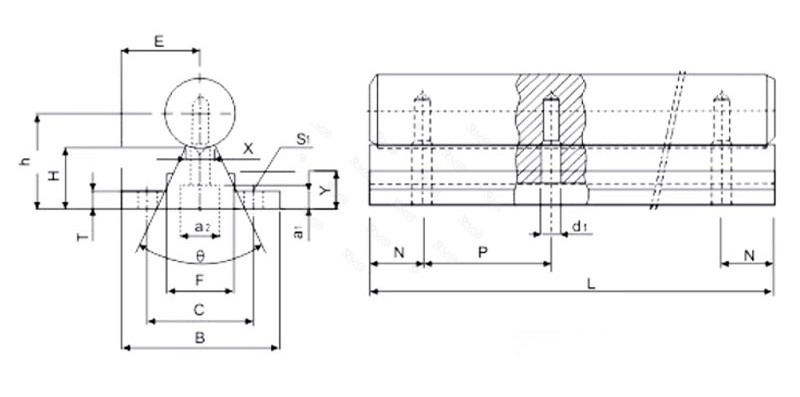

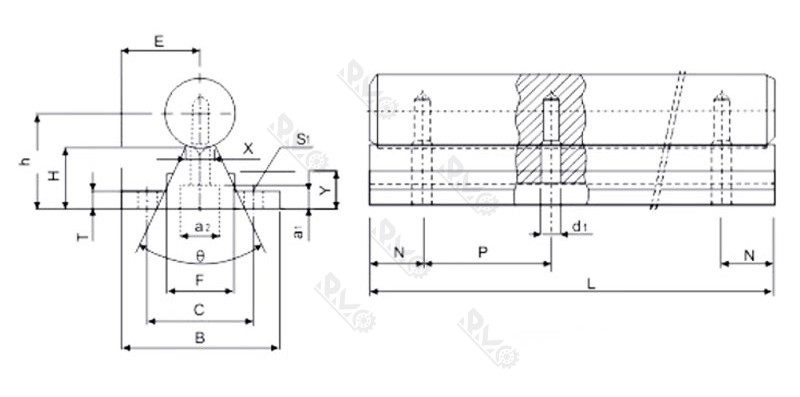

| Model No. | ID | E | h | B | H | T | F | X | Y | C | 0 | S1 | a1 | a2 | d1 | KG/m |
| SBR10 | 10 | 19 | 21 | 32/30 | 13.5 | 4 | 12.4 | 4.7 | 8.9 | 22/20 | 80° | 4.5 | S | 8.5 | 4.5 | 1.1 |
| SBR12 | 12 | 17 | 20.46 | 34/32 | 15 | 4.5 | 15 | 6 | 9.8 | 25/22 | 80° | 4.5 | S | 8.5 | 4.5 | 1.4 |
| SBR16 | 16 | 20 | 25 | 40 | 17.8 | 5 | 18.5 | 8 | 11.7 | 30 | 80° | 5.5 | 6 | 9.5 | 5.5 | 2.56 |
| SBR20 | 20 | 22.5 | 27 | 45 | 17.7 | 5 | 19 | 8 | 10 | 30 | 50° | 5.5 | 6.5 | 11 | 6.6 | 3.5 |
| SBR25 | 25 | 27.5 | 33 | 55 | 21 | 6 | 21.5 | 8T | 12 | 35 | 50° | 6.6 | 6.5 | 11 | 6.6 | 5.3 |
| SBR30 | 30 | 30 | 37 | 60 | 22.8 | 7 | 26.5 | 10.3 | 13 | 40 | 50° | 6.6 | 8.5 | 14 | 9 | 7.38 |
| SBR35 | 35 | 32.5 | 43 | 65 | 26.6 | 8 | 28 | 13 | 15.5 | 45 | 50° | 9 | 8.5 | 14 | 9 | 9.68 |
| SBR40 | 40 | 37.5 | 48 | 75 | 29.4 | 9 | 38 | 16 | 17 | 55 | 50° | 9 | 8.5 | 14 | 9 | 12.69 |
| SBR50 | 50 | 47.5 | 62 | 95 | 38.8 | 11 | 45 | 20 | 21 | 70 | 50° | 11 | 12.5 | 19 | 11 | 20.46 |

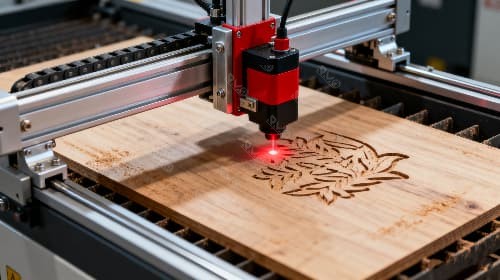

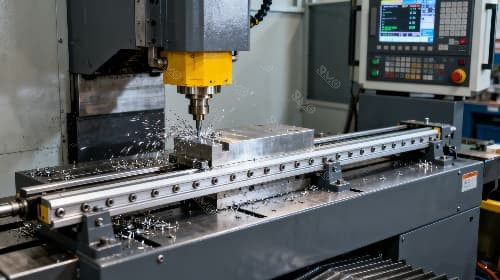

The SBR16 linear guide rail and slider are widely used in various automated equipment and DIY projects, such as 3D printers, laser engraving machines, CNC numerical control machines, lathes, milling machines, industrial robots, etc. They can also be used in large transmission equipment, providing precise and stable linear motion for these devices.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
SFU1204 is a type of ball screw that is widely used in the field of precision machinery.
