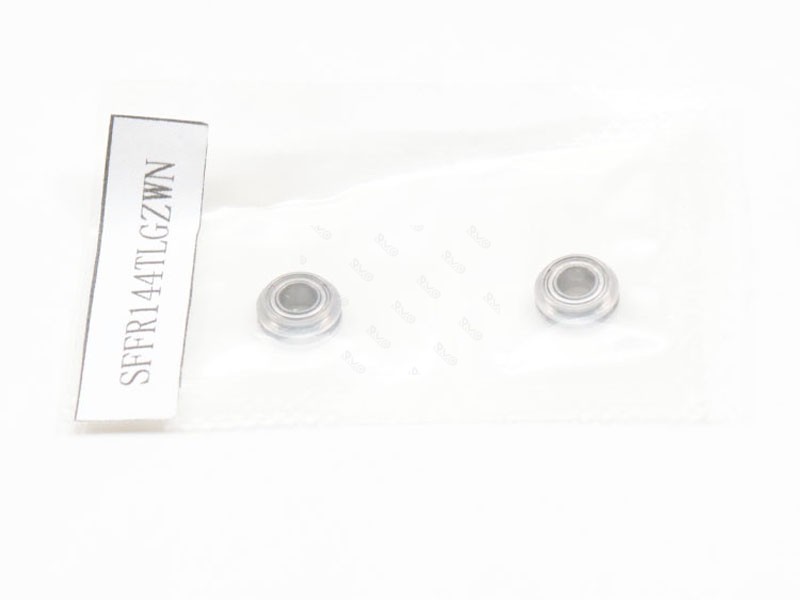

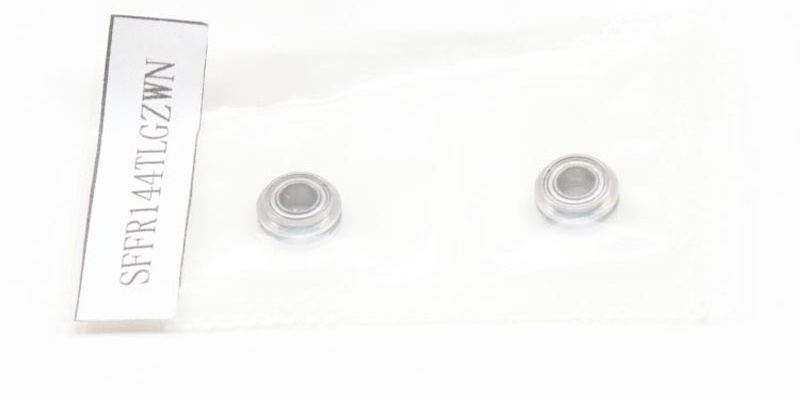

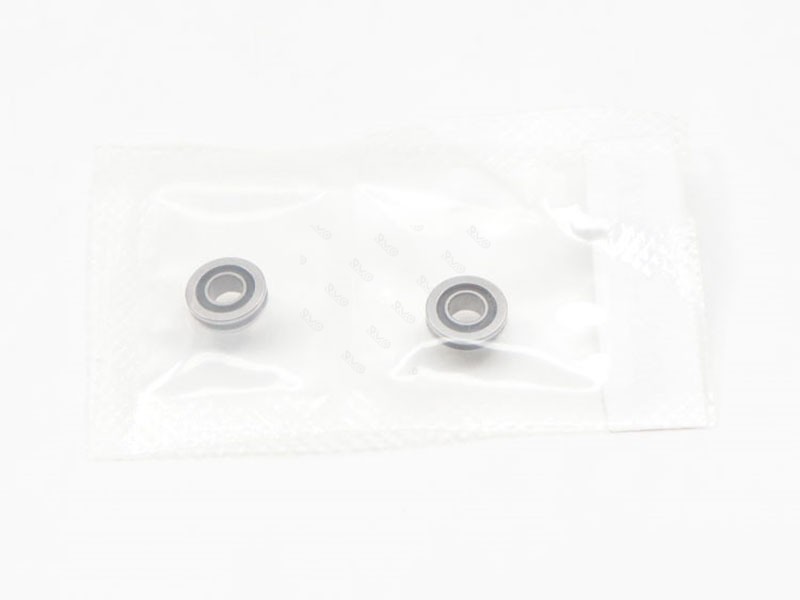

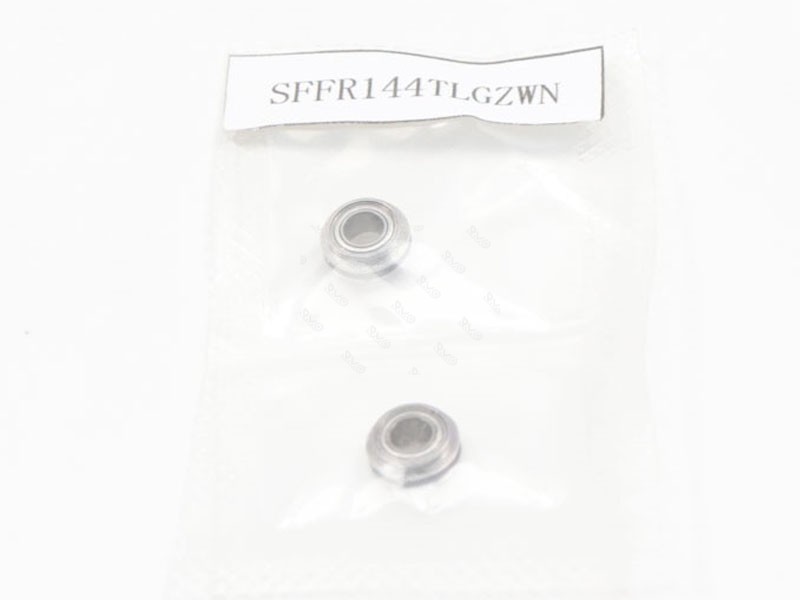

SFFR144TLGZWN Micro Deep Groove Ball Bearing for Dental Handpiece
SFFR144TLGZWN is a high-speed miniature bearing designed for Dental Handpiece.
Item No :
SFFR144TLGZWNSize (d*D*B) :
3.175x6.35x2.78mmMaterial :
Stainless steel 440C + Si3N4 ceramic ballsCage material :
TorlonLead Time :
3-5 workdaysSFFR144TLGZWN Micro Deep Groove Ball Bearing for Dental Handpiece
⚙️Structural features:
It is a single-row bearing. The sealing method is Z-shaped, meaning that one side has a dust cover, which can prevent water vapor, debris, and other impurities in the oral cavity from entering the bearing interior. The cage type is crown-shaped. The materials available include Torlon, polyimide, phenolic, etc., and it has high strength and self-lubrication properties.
⚙️Technical Parameters:
| Item No. | SFFR144TLGZWN |
| Branding | Famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Stainless steel 440C + Si3N4 ceramic balls |
| Lead Time | 3-5 days |
| Precision | ABEC-1、ABEC-3、ABEC-5、ABEC-7 |
| Cage material | Torlon |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
The material of the ring is generally 440C stainless steel, which has the properties of rust prevention and corrosion resistance. The material of the balls can be stainless steel balls or ceramic balls. Ceramic balls are usually made of Si3N4 ceramic, which has high hardness and a low thermal expansion coefficient. During high-speed rotation, it can effectively reduce the influence of centrifugal force and improve the stability and service life of the bearing.
Precision grade: The precision grade can reach ABEC-1, ABEC-3, ABEC-5, ABEC-7, etc. Among them, ABEC-7 is a higher precision grade, which can meet the high-speed and precise dental treatment requirements.
Performance parameters: This bearing features high speed, low noise and long service life. Under a pressure of 200-250 kPa, the rotational speed can reach 350,000-450,000 revolutions per minute, and the normal working life is approximately 6 months.

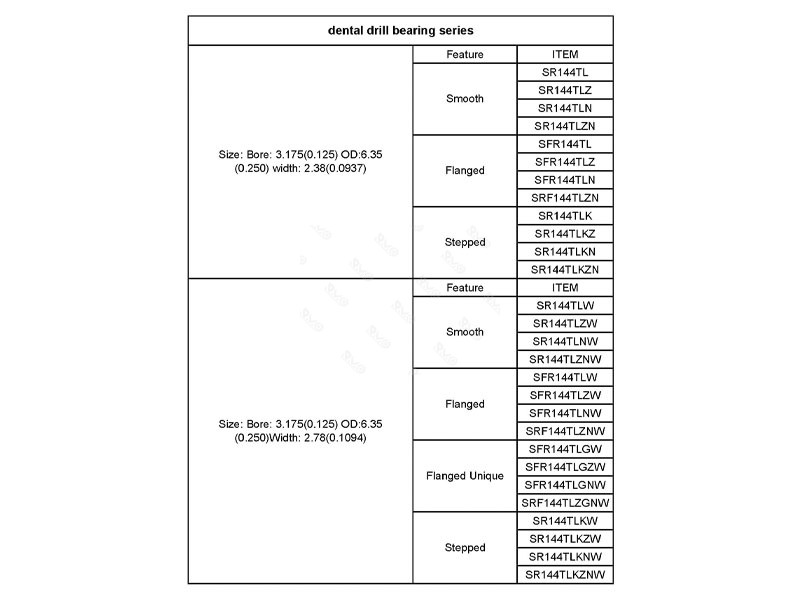

| dental drill bearing series | ||
| Size: Bore: 3.175(0.125) OD:6.35 (0.250) width: 2.38(0.0937) |
Feature | ITEM |
| Smooth | SR144TL | |
| SR144TLZ | ||
| SR144TLN | ||
| SR144TLZN | ||
| Flanged | SFR144TL | |
| SFR144TLZ | ||
| SFR144TLN | ||
| SRF144TLZN | ||
| Stepped | SR144TLK | |
| SR144TLKZ | ||
| SR144TLKN | ||
| SR144TLKZN | ||
| Size: Bore: 3.175(0.125) OD:6.35 (0.250) Width: 2.78 (0.1094) |
Feature | ITEM |
| Smooth | SR144TLW | |
| SR144TLZW | ||
| SR144TLNW | ||
| SR144TLZNW | ||
| Flanged | SFR144TLW | |
| SFR144TLZW | ||
| SFR144TLNW | ||
| SRF144TLZNW | ||
| Flanged Unique | SFR144TLGW | |
| SFR144TLGZW | ||
| SFR144TLGNW | ||
| SRF144TLZGNW | ||
| Stepped | SR144TLKW | |
| SR144TLKZW | ||
| SR144TLKNW | ||
| SR144TLKZNW | ||
It is applicable to various brands of high-speed dental turbine phones and is a key component in dental treatment equipment.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
