SGB15-3 3-wheel Double-axis Core Guide Rail Slider

SGB15-3 3-wheel double-axis core guide rail slider

⚙️Product description:

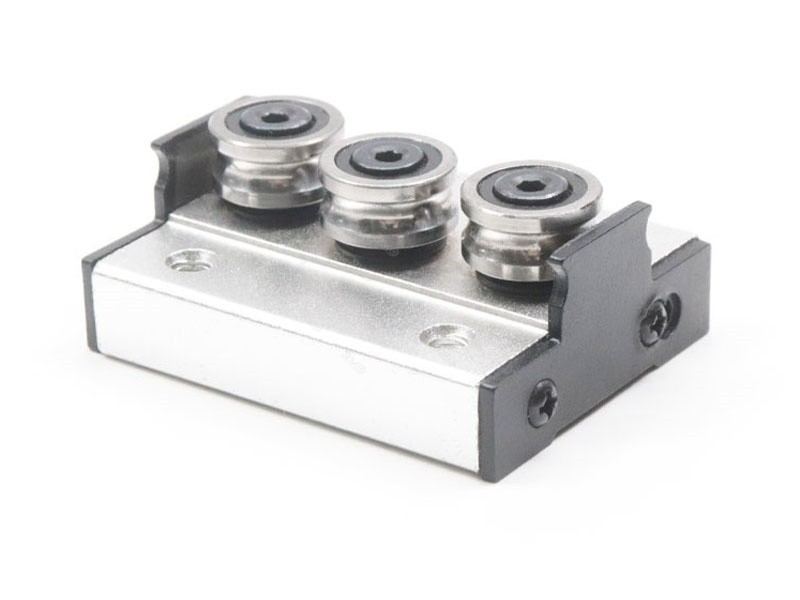

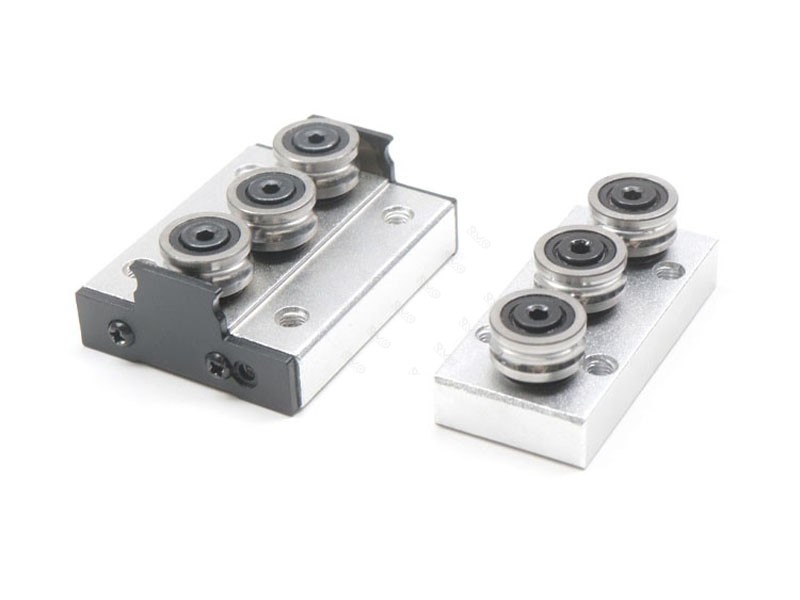

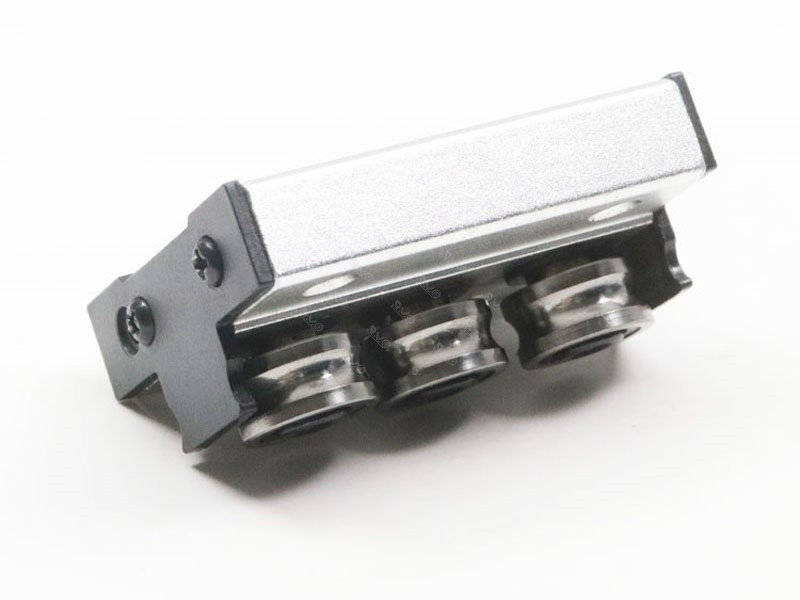

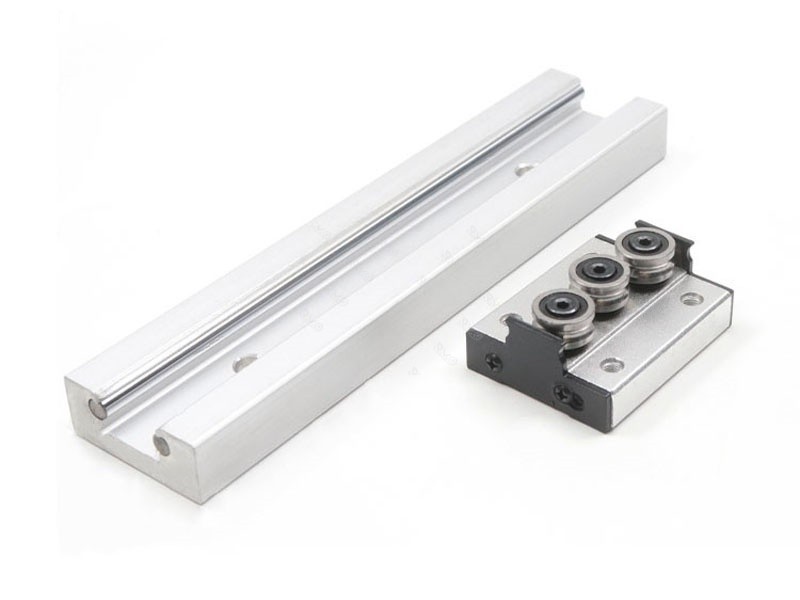

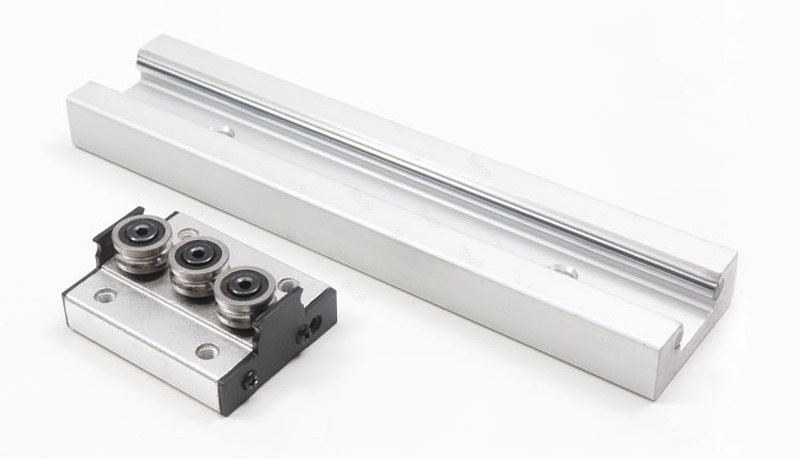

Structural Design: The SGB15-3 double-axis core guide rail slider is composed of the slider body and three rollers, and is used in conjunction with the SGR15 guide rail. The guide rail adopts a double-axis core design, which can effectively reduce the friction force during movement, ensuring smooth and precise movement. The rollers on the slider come into contact with the inner axis core track of the guide rail to achieve linear motion.

Material: The guide rail is made of aluminum alloy and has undergone special hardening treatment on its surface, which gives it excellent wear resistance and corrosion resistance, ensuring good performance even in harsh environments. The slider part is also made of aluminum alloy to ensure a good fit with the guide rail and long-term stable operation.

Performance features: This slider is equipped with high-speed bearings, allowing for a high operating speed of up to 10 meters per minute, meeting the demands of rapid response and efficient operation. Additionally, it has a good load-bearing capacity, making it suitable for applications with certain load requirements. Moreover, it operates with low noise, making it ideal for use in precision instrument manufacturing, medical equipment, and other fields with high environmental requirements.





⚙️Product Application:

Widely used in industrial automation fields, such as assembly lines, handling robots and other equipment. It can also be applied to scientific research experimental equipment, sliding parts of high-end furniture, etc., providing smooth and precise linear motion for these devices.

•

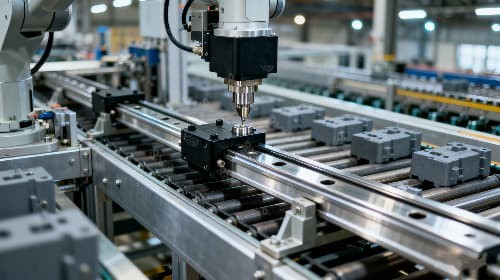

  SGR guide rail for assembly line
•

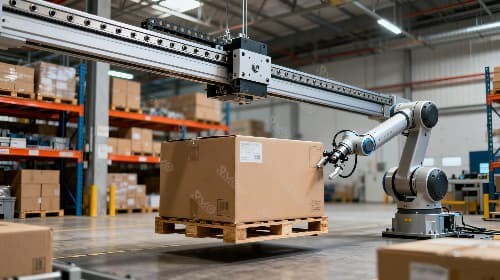

  SGR guide rail for transfer robot
•

  SGR guide rail for textile machinery





⚙️Precautions:

1. Keep clean	2. Use with caution	3. appropriate tool	4. Hot-loading	5. Be careful of rust
Dust will have a bad effect on the bearing, so keep the surrounding clean.	Strong impact during use can easily cause scratches and indentations.	Avoid replacing existing tools, and use appropriate tools.	Bearings are precision parts, so hot installation is recommended.	Sweat on your hands during operation will cause rust, so it is best to wear gloves.

⚙️Obtain Certificate:

About Rimao

Since its establishment in 2011, Rimao Bearing has combined international vision with local wisdom and injected innovative ideas into every bearing and pulley with its profound industry accumulation and unremitting pursuit of technology. We have not only passed CE and ROHS certification, but also set a new benchmark in the industry and led the development trend of the bearing industry.



We are not just a ball bearing and roller bearing importer and wholesaler. We provide real solutions to help you achieve the product and design goals set by your customers. With more than 20 years of production and sales experience, tens of thousands of models and specifications, we look forward to cooperating with you!
