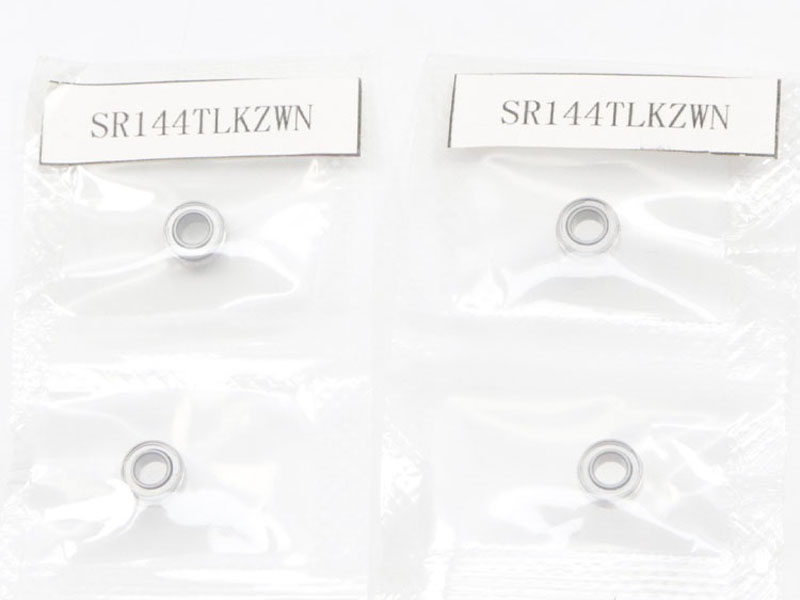

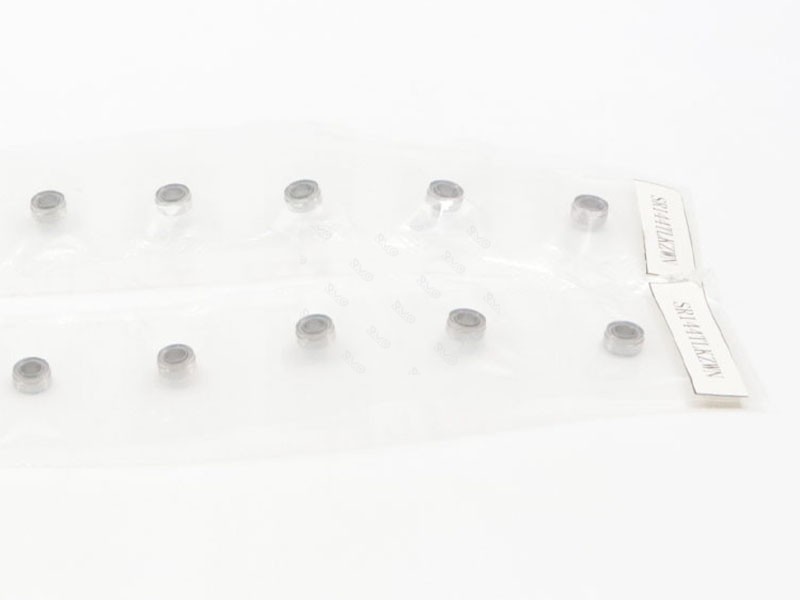

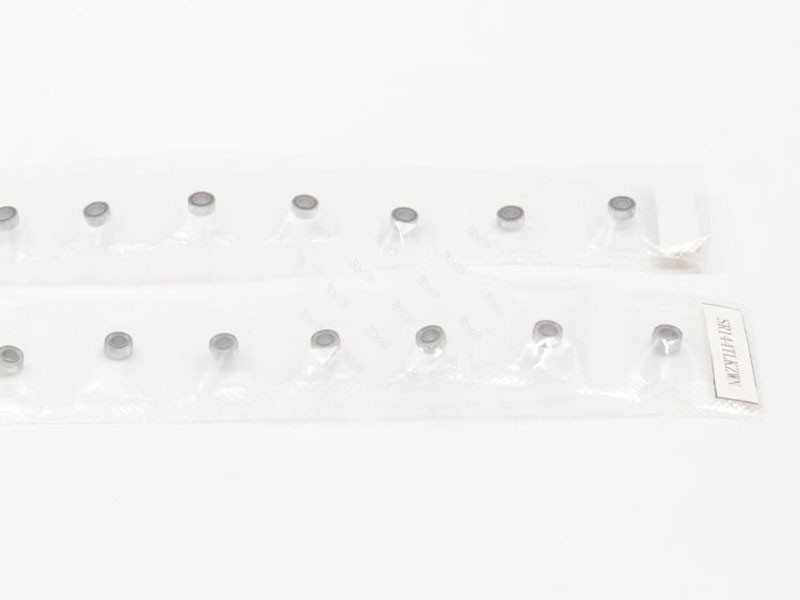

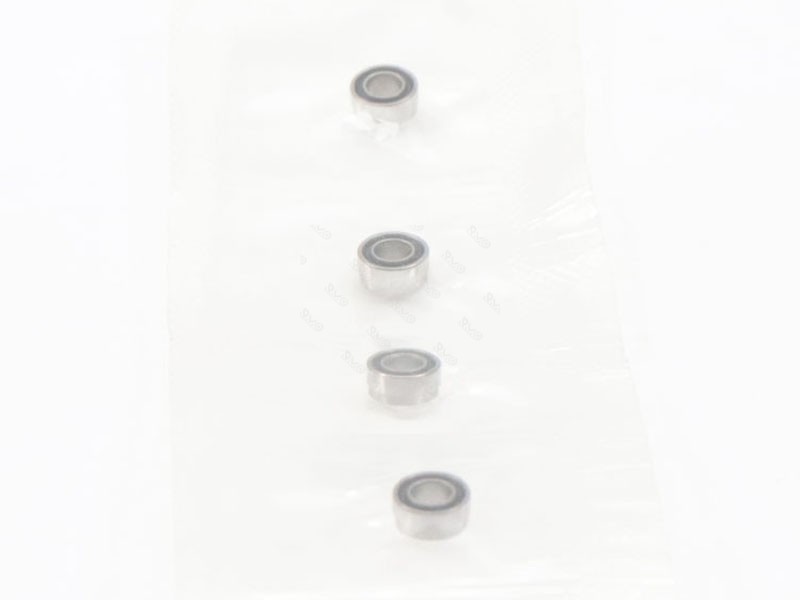

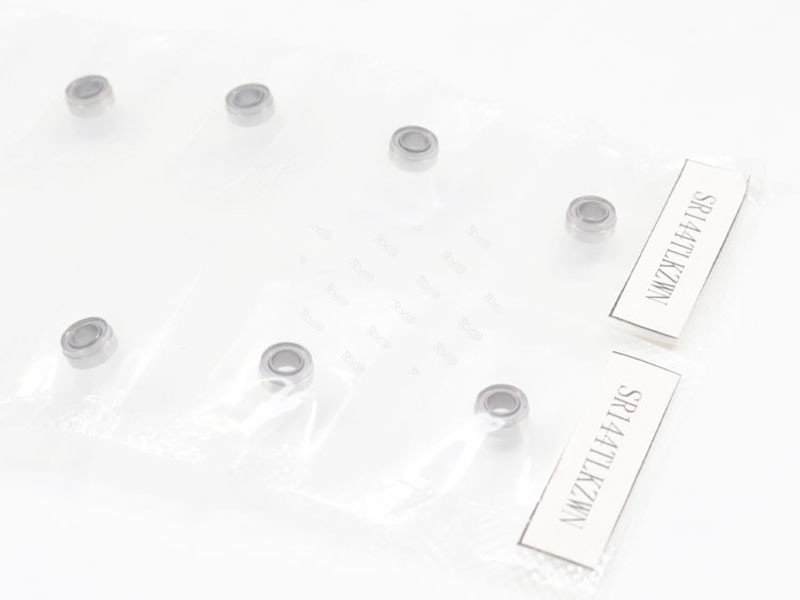

SR144TLKZWN Precision Bearing for High-Speed Premium Dental Handpieces
Item No :
SR144TLKZWNSize (d*D*B) :
3.175x6.35x2.78mmMaterial :
Stainless steel 440C + Si3N4 ceramic ballsLead Time :
3-5 workdaysMOQ :
50 pcsSR144TLKZWN Precision Bearing for High-Speed Premium Dental Handpieces
⚙️Product description:
Specifically designed for dental ultra-high-speed treatment scenarios, it is the core component that ensures the stable operation of dental drills and enhances the accuracy of treatments. It is suitable for high-precision operations such as preparing dental implant sockets and dental restoration.
⚙️Material and Structure:
Main Configuration: The inner and outer rings are made of high-precision stainless steel 440, which is highly resistant to corrosion and deformation, and is suitable for dental high-frequency, high-temperature, and high-pressure sterilization environments; The rolling elements are made of Si3N4 nitride silicon carbide beads, with low friction coefficient and high hardness (HRA 90+), effectively reducing wear and temperature rise during high-speed operation.
Auxiliary Structure: The cage is made of Torlon special polyamide material, which is resistant to high temperatures (long-term operation at 260℃) and anti-creep, ensuring structural stability during ultra-high-speed operation; The "Z" in the model represents a single-sided metal dust-proof cover, which can prevent moisture and debris from entering the bearing interior, extending the service life.
⚙️Technical Parameters:
| Item No. | SR144TLKZWN |
| Branding | Famous brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Stainless steel 440C + Si3N4 ceramic balls |
| Lead Time | 3-5 days |
| Precision | ABEC-1、ABEC-3、ABEC-5、ABEC-7 |
| Cage material | Torlon |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production |
Ultra-high-speed Adaptability: The precision grade reaches ABEC-7, and the maximum rotational speed can reach 400,000 revolutions per minute. It fully meets the operation requirements of dental high-speed handpieces, and the radial runout during operation is ≤ 5 μm, ensuring precise operation.
Sterilization Resistance and Durability: It can withstand ≥ 200 cycles of high-temperature and high-pressure sterilization. After sterilization, the torque change rate is controlled within ±8% of the initial value. It has a long service life under normal working conditions, reducing the frequency of instrument maintenance.
Stable Temperature and Low Noise: The combination of ceramic beads and special retainers significantly reduces operating friction. The temperature rise at the highest rotational speed is ≤ 15℃. At the same time, it reduces instrument vibration and noise, enhancing the comfort of the doctor's operation and the patient's diagnosis and treatment experience.

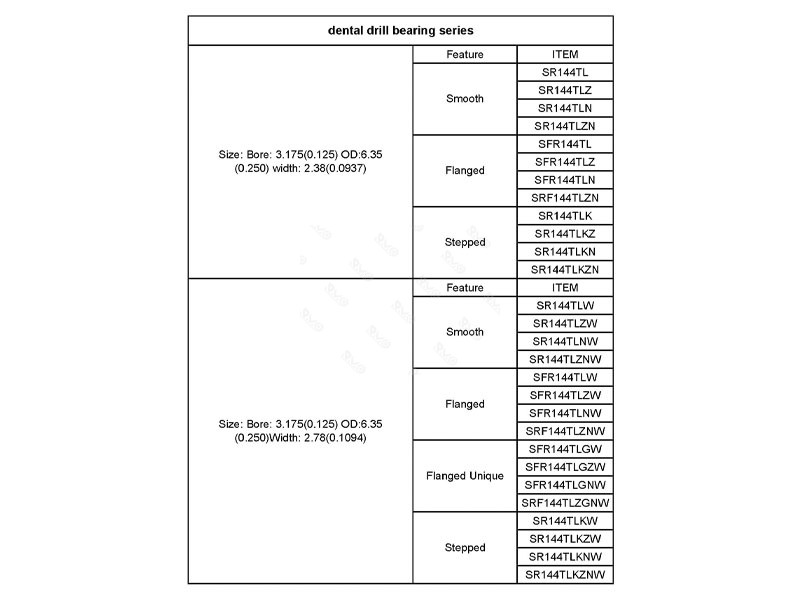

| dental drill bearing series | ||
| Size: Bore: 3.175(0.125) OD:6.35 (0.250) width: 2.38(0.0937) |
Feature | ITEM |
| Smooth | SR144TL | |
| SR144TLZ | ||
| SR144TLN | ||
| SR144TLZN | ||
| Flanged | SFR144TL | |
| SFR144TLZ | ||
| SFR144TLN | ||
| SRF144TLZN | ||
| Stepped | SR144TLK | |
| SR144TLKZ | ||
| SR144TLKN | ||
| SR144TLKZN | ||
| Size: Bore: 3.175(0.125) OD:6.35 (0.250) Width: 2.78 (0.1094) |
Feature | ITEM |
| Smooth | SR144TLW | |
| SR144TLZW | ||
| SR144TLNW | ||
| SR144TLZNW | ||
| Flanged | SFR144TLW | |
| SFR144TLZW | ||
| SFR144TLNW | ||
| SRF144TLZNW | ||
| Flanged Unique | SFR144TLGW | |
| SFR144TLGZW | ||
| SFR144TLGNW | ||
| SRF144TLZGNW | ||
| Stepped | SR144TLKW | |
| SR144TLKZW | ||
| SR144TLKNW | ||
| SR144TLKZNW | ||
Compatible with various premium high-speed dental handpieces, it is widely used in dental clinical procedures such as tooth grinding, cavity preparation, tooth restoration, and implant site preparation. It is the preferred matching bearing for high-end dental institutions and dental equipment manufacturers.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
