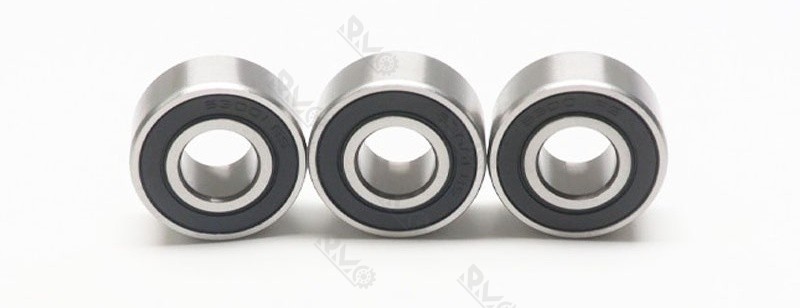

Thickened Bearing 63001-2RS Single Row Deep Groove Ball Bearing
Item No :
63001-2RSSize (d*D*B) :

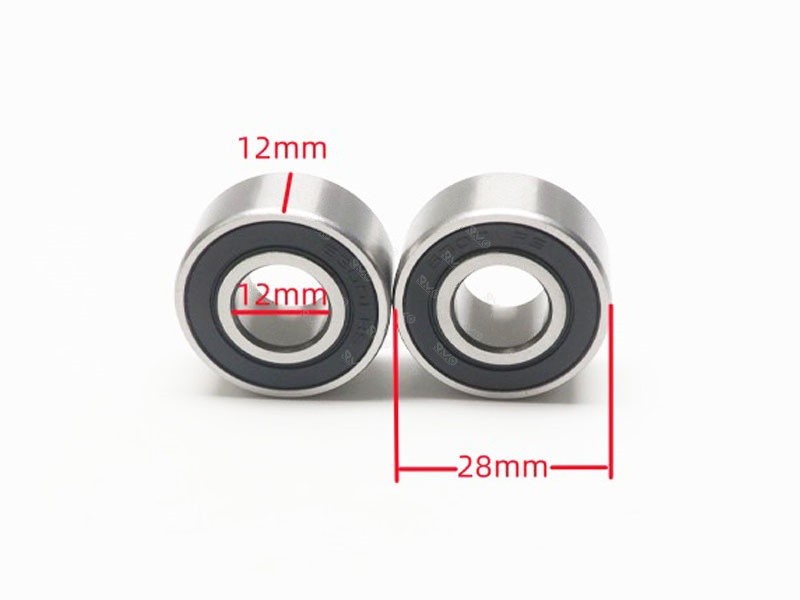

12x28x12mmLead Time :
3-5 DaysWeight :
0.029KGShipping Port :
GUANGZHOU, NINGBO, SHANGHAIMOQ :
100 pcsThickened Bearing 63001-2RS Single Row Deep Groove Ball Bearing
⚙️product description:
63001-2RS is a single row deep groove ball bearing. The "2RS" indicates that the two sides of the bearing are equipped with contact-type rubber seals, which can prevent the leakage of lubricating oil and the entry of contaminants.
Technical parameters: The basic rated dynamic load is 5.07KN, the basic rated static load is 2.36KN, the maximum rotational speed is 17000r/min, the cage material is stamped steel, and the bearing material is bearing steel.
The working temperature range is from -20℃ to +120℃, suitable for most industrial environments.
| Cage material | Steel |
| Branding | Famous Brand/RMO/Neutral/OEM |
| Sealing | OPEN, ZZ , 2RS |
| Material | Chrome Steel (Gcr15)or Stainless Steel etc. |
| Precision | ABEC-1 ABEC-3 ABEC-5 ABEC-7 |
| Clearance | C0 C3 |
| Vibration | Z1V1, Z2V2, Z3V3 |
| Shipping Port | GUANGZHOU, NINGBO, SHANGHAI |
| Payment | 100% TT, or 30% TT In Advance ,70% TT After Finished Production |
| Service | Free Sample Can Be Provided |
Made of chrome steel, it features low friction, low noise and low vibration. It can adapt to high-speed rotating working environments. The rubber seals on both sides ensure good sealing performance, which can prevent dust, moisture and other impurities from entering the bearing interior, reducing wear and extending the service life of the bearing.
| Model No. | d | D | H | m |
| 630/8-2RS | 8 mm | 22 mm | 11 mm | 16 g |
| 63000-2RS | 10 mm | 26 mm | 12 mm | 25 g |
| 63001-2RS | 12 mm | 28 mm | 12 mm | 29 g |
| 63002-2RS | 15 mm | 32 mm | 13 mm | 39 g |
| 63003-2RS | 17 mm | 35 mm | 14 mm | 52 g |
| 63004-2RS | 20 mm | 42 mm | 16 mm | 86 g |
| 63005-2RS | 25 mm | 47 mm | 16 mm | 110 g |
| 63006-2RS | 30 mm | 55 mm | 19 mm | 170 g |
| 63007-2RS | 35 mm | 62 mm | 20 mm | 230 g |
| 63008-2RS | 40 mm | 68 mm | 21 mm | 270 g |
| 63009-2RS | 45 mm | 75 mm | 23 mm | 360 g |
| 63010-2RS | 50 mm | 80 mm | 23 mm | 380 g |
Suitable for applications requiring high load capacity, such as robots, transmissions, automotive parts, air conditioning equipment, office equipment, heavy industrial machinery, factory automation, agricultural equipment, etc.
| 1. Keep clean | 2. Use with caution | 3. appropriate tool | 4. Hot-loading | 5. Be careful of rust |
| Dust will have a bad effect on the bearing, so keep the surrounding clean. | Strong impact during use can easily cause scratches and indentations. | Avoid replacing existing tools, and use appropriate tools. | Bearings are precision parts, so hot installation is recommended. | Sweat on your hands during operation will cause rust, so it is best to wear gloves. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
