Thrust ball bearings are rolling bearings designed primarily to support axial loads, meaning forces acting parallel to the shaft.
Unlike deep groove ball bearings, which can carry radial loads and some axial loads, standard thrust ball bearings are specifically designed for axial load conditions. They are commonly used when a rotating shaft must be accurately located in the axial direction while maintaining low friction.
Thrust ball bearings are available in single-direction and double-direction designs, making them suitable for a wide range of industrial machinery, automotive systems, rotating equipment and precision mechanisms.
What Is a Thrust Ball Bearing?

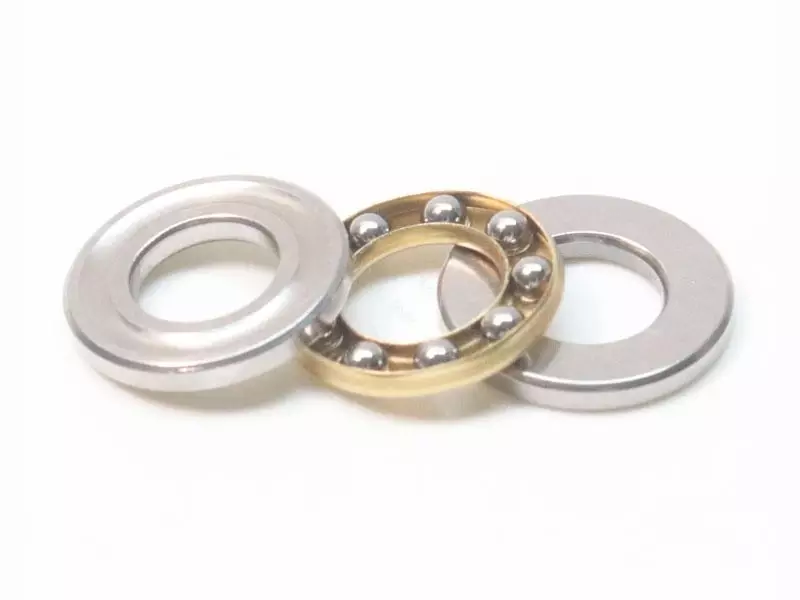

A typical thrust ball bearing consists of:
- A shaft washer
- A housing washer
- Steel balls
- A ball cage or retainer
The washers contain raceway grooves that guide the balls during rotation.
Because the components are generally separable, the shaft washer, housing washer and ball-and-cage assembly can often be installed separately. This makes mounting and maintenance relatively straightforward.
How Does a Thrust Ball Bearing Work?
When an axial force is applied along the shaft, the load is transferred through the shaft washer to the rolling balls and then into the housing washer.
The balls roll between the raceway grooves rather than sliding directly against the washers. This rolling contact reduces friction and allows the shaft to rotate smoothly while carrying axial force.
The basic load path is:
Shaft → Shaft Washer → Balls → Housing Washer → Machine Housing
This simple structure makes thrust ball bearings efficient for applications where axial positioning and low rotational friction are important.
What Loads Can Thrust Ball Bearings Carry?
Standard thrust ball bearings are intended primarily for axial loads.
They should not normally be used to support significant radial loads.
If a machine produces both strong radial and axial forces, another bearing arrangement may be required, such as:
- Angular contact ball bearings
- Tapered roller bearings
- A combination of radial and thrust bearings
Choosing the correct bearing type is important because applying the wrong load direction can shorten bearing life and cause premature failure.
Single-Direction vs. Double-Direction Thrust Ball Bearings
Single-Direction Thrust Ball Bearings
A single-direction thrust ball bearing normally contains:
- One shaft washer
- One housing washer
- One ball-and-cage assembly
It can support an axial load in one direction only.
Common series include:
- 511 series
- 512 series
- 513 series
- 514 series
Single-direction designs are widely used because of their simple construction and compact axial layout.
Double-Direction Thrust Ball Bearings
A double-direction thrust ball bearing typically uses:
- One central shaft washer
- Two housing washers
- Two ball-and-cage assemblies
It can locate the shaft and support axial forces in both directions.
These bearings are suitable when the direction of axial force may reverse during operation.
What Are the Main Advantages of Thrust Ball Bearings?
Thrust ball bearings offer several practical advantages:
1. Low Friction
Ball rolling contact produces relatively low friction, helping reduce heat generation and power loss.
2. Good Axial Positioning
They can accurately locate a shaft in the axial direction when properly mounted.
3. Compact Design
A thrust ball bearing can provide axial support without requiring a large radial installation space.
4. Separable Components
The bearing washers and cage assembly can usually be handled separately, making installation and replacement easier.
5. Wide Size Range
Thrust ball bearings are available from miniature sizes for compact equipment to larger sizes for industrial machinery.
Where Are Thrust Ball Bearings Used?
Typical applications include:
- Machine tools
- Gearboxes
- Rotary tables
- Valves and pumps
- Automotive clutch systems
- Small motors and mechanical drives
- Industrial transmission equipment
- Material handling machinery
- Precision instruments
- Agricultural machinery
The exact bearing design must always be selected according to load, speed, mounting conditions and operating environment.
How to Select the Correct Thrust Ball Bearing
When selecting a thrust ball bearing, do not choose only by bore diameter.
Several factors should be checked.
Axial Load
Determine both the normal operating load and any temporary peak load.
The selected bearing should have sufficient dynamic and static load capacity for the application.
Load Direction
If the axial force acts in only one direction, a single-direction bearing may be sufficient.
If axial force acts in both directions, consider a double-direction bearing or another suitable arrangement.
Shaft and Housing Dimensions
Confirm:
- Bore diameter
- Outside diameter
- Bearing height
- Shaft shoulder
- Housing shoulder
- Available installation space
Rotational Speed
Higher rotational speeds increase the importance of lubrication, cage design, alignment and heat generation.
Always check the permissible speed for the exact bearing size rather than applying one general speed value to an entire series.
Lubrication
Correct grease or oil lubrication reduces wear and friction and helps control operating temperature.
Lubricant selection should consider:
- Speed
- Load
- Temperature
- Environment
- Required service life
Mounting Accuracy
Poor alignment or incorrect washer installation can create abnormal loading.
The shaft washer and housing washer must be installed in their correct positions.
Common Installation Mistakes
Several installation errors can greatly reduce thrust bearing life.
Reversing the Washers
The shaft washer is designed to fit the shaft, while the housing washer fits the housing.
They should not be installed interchangeably.
Applying Radial Load
A standard thrust ball bearing should not be used as the primary bearing for radial force.
Misalignment
Excessive misalignment can create uneven ball contact and local stress.
Improper Lubrication
Too little lubricant increases wear, while excessive grease can increase temperature and resistance at higher speeds.
Contamination
Dust, metal particles and other contaminants can damage the raceways and rolling elements.
Bearings should be kept clean during installation.
Thrust Ball Bearing vs. Deep Groove Ball Bearing
These two bearing types serve different purposes.
Thrust ball bearing:
- Mainly supports axial load
- Designed for axial shaft positioning
- Not intended for significant radial load
Deep groove ball bearing:
- Mainly supports radial load
- Can also support moderate axial load
- Suitable for many general rotary applications
If the machine experiences mainly axial force, a thrust bearing may be appropriate. If radial load is dominant, a radial bearing such as a deep groove ball bearing is generally more suitable.
Thrust Ball Bearing vs. Thrust Roller Bearing
Both are designed for axial loading, but they are not identical.
Ball-type thrust bearings use point contact between the balls and raceways. This generally supports smooth rotation and relatively low friction.
Roller thrust bearings use line contact and are often selected when significantly higher axial load capacity and rigidity are required.
The final choice should be based on:
- Load magnitude
- Speed
- Space
- Rigidity
- Alignment
- Service conditions
Common RMO Thrust Ball Bearing Options
RMO supplies standard and custom thrust ball bearings for industrial B2B applications.
Current product options include models such as:
Different materials, dimensions, cages and OEM packaging options can be discussed according to the project requirements.
For technical selection, customers should provide the required bearing size, axial load, operating speed, temperature and application information.
Frequently Asked Questions
Can a thrust ball bearing carry radial load?
Standard thrust ball bearings are designed primarily for axial loading and should not normally be used to carry significant radial loads.
What is the difference between single-direction and double-direction thrust ball bearings?
A single-direction bearing supports axial force in one direction. A double-direction bearing supports axial force in both directions.
Are thrust ball bearings suitable for high-speed applications?
They can operate at relatively high speeds depending on bearing size, cage design, lubrication, load and operating conditions. The limiting speed of the specific bearing should always be checked.
Can thrust ball bearings be used vertically?
Yes, provided the bearing arrangement, lubrication and applied load meet the design requirements.
How do I know which washer goes on the shaft?
The shaft washer normally has a bore designed to locate on the shaft, while the housing washer is designed to locate against the housing.
